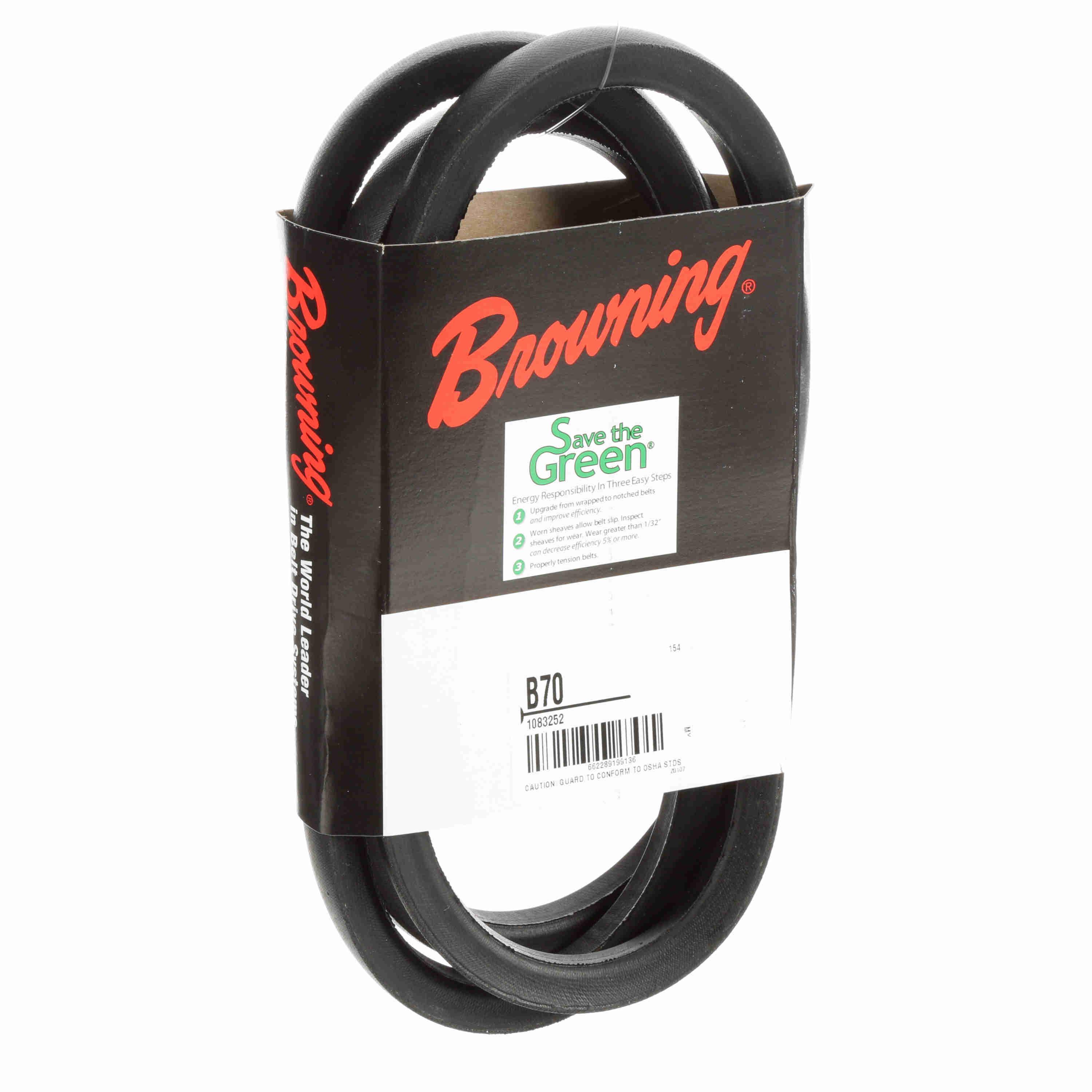

Browning® 1083252 BROB70

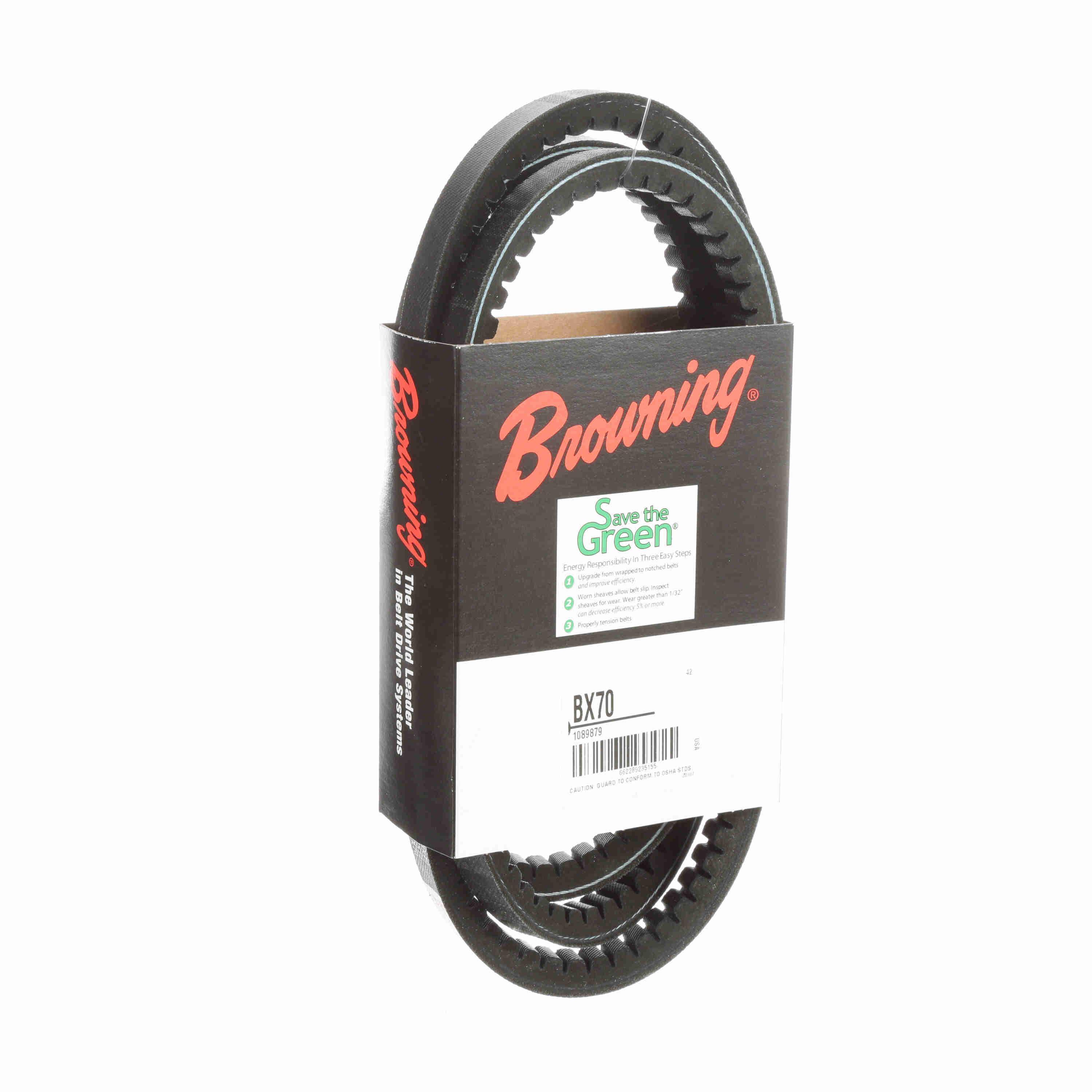

Browning® Classical V-Belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap V-Belts also have less fabric overlap, which reduces center distance variation and vibration. For energy conscious users, our AX/BX molded notched/cogged V-Belts are up to 3% more efficient than the wrapped designs. Additionally, they are offered in all standard sizes.

Browning® GripBelt® Super V-Belt, Non-Cogged, B Section, 21/32 in Top Width, 73 in Outside Length, 7/16 in Thickness, 1 Rib, 230 deg F, Neoprene, Synthetic Fiber Reinforced

• Wrapped construction - Provides smooth quiet operation
• Single fabric design allows greater flexibility
• Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
• Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
• High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
