Browning® 1082452 BROA68
  1. pin-int

Browning® 1082452 BROA68

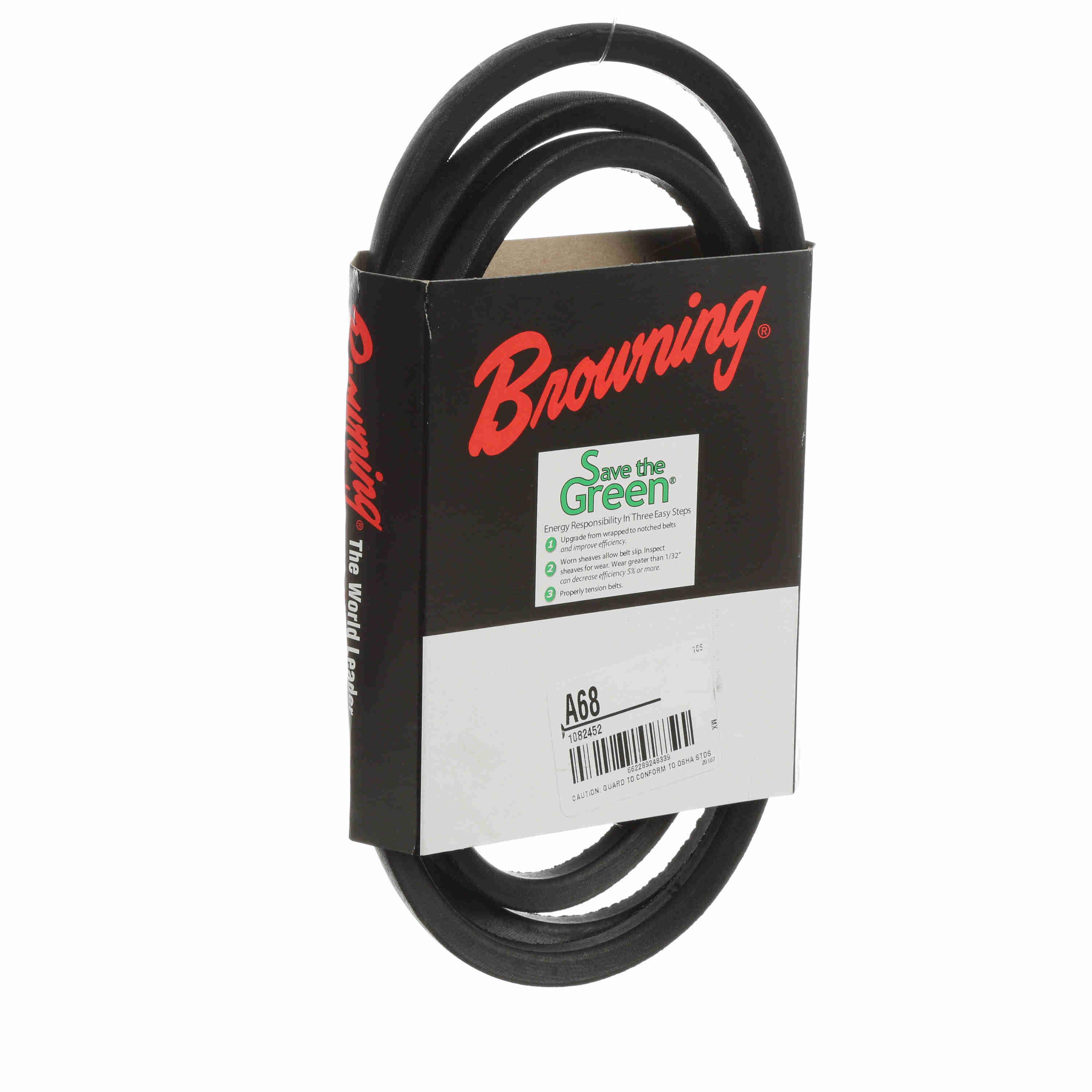

Browning® GripBelt® 1082452 Non-Cogged Super V-Belt, A Section, 1/2 in W Top, 70.22 in L Outside, 5/16 in THK, Neoprene

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROA68
  • Alt Part Number: A68
  • MPN: 1082452
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical V-Belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap V-Belts also have less fabric overlap, which reduces center distance variation and vibration. For energy conscious users, our AX/BX molded notched/cogged V-Belts are up to 3% more efficient than the wrapped designs. Additionally, they are offered in all standard sizes.

Browning® GripBelt® Super V-Belt, Non-Cogged, A Section, 1/2 in Top Width, 70.22 in Outside Length, 5/16 in Thickness, 1 Rib, 230 deg F, Neoprene, Synthetic Fiber Reinforced

Material      :      Neoprene
Number of Ribs      :      1
Outside Length      :      70.22 in
Reinforced Material      :      Synthetic Fiber
Section Size      :      A
Temperature Range      :      230 deg F
Thickness      :      5/16 in
Top Width      :      1/2 in
Type      :      Non-Cogged
  • Static conducting
  • Single fabric design allows greater flexibility
  • Wrapped belts are more tolerant to slipping and misalignment than raw edge belts
  • Close belt tolerance - Browning® belts offer the "Code 1" match belt system on all classical and "358" belts allowing easy selection of just one match number for each belt size
  • High tensile cord-specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
  • Unique design enhances performance and provides increased horsepower capacity in a shorter center drive
  • Reduced overlap provides lower vibration and reduced noise during operation
  • High strength, synthetic fiber cords carry the horsepower load and minimize stretching
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • Wrapped construction - Provides smooth quiet operation
