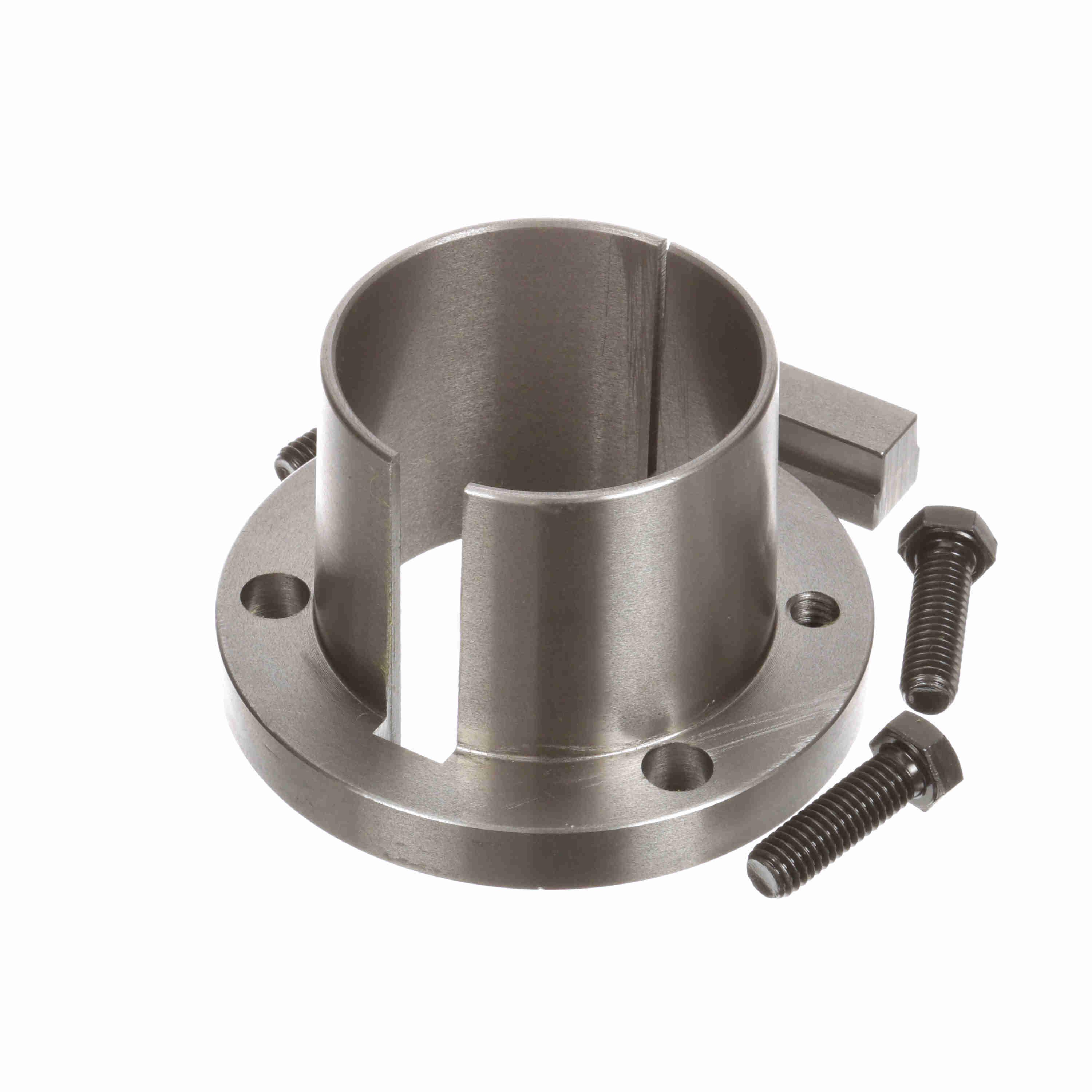

Browning® 1079128 BROQ12 9/16
Browning® 1079128 Split Taper Bushing, 2-9/16 in Dia Bore, 2.7657 in Small End/2.875 in Large End Dia Barrel, 4-1/8 in Dia Flange, 2-1/2 in OAL
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROQ12 9/16
- Alt Part Number: Q1 2 9/16
- MPN: 1079128
- UPC: 662289269891
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
Browning® Split Taper Bushing, 2-9/16 in Bore Dia, 2.7657 in Small End/2.875 in Large End Barrel Dia, 3-3/8 in Bolt Circle, 4-1/8 in Flange Dia, 17/32 in Flange Thickness, 3 Bolt Holes, 3/8 x 1-1/4 in Screw, For Use With: Browning® Multiple Groove Sheave, 2-1/2 in Overall Length, 5/8 x 5/16 in Keyway
| Barrel Diameter | : | 2.7657 in Small End/2.875 in Large End |
| Bolt Circle Diameter | : | 3-3/8 in |
| Bore Diameter | : | 2-9/16 in |
| Flange Diameter | : | 4-1/8 in |
| Flange Thickness | : | 17/32 in |
| Keyway Size | : | 5/8 x 5/16 in |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 2-1/2 in |
| Screw Size | : | 3/8 x 1-1/4 in |
| Suitable For Use With | : | Browning® Multiple Groove Sheave |
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- Flat face pulley idler
- Ductile iron
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
