Browning® 1071414 BROU03 3/4

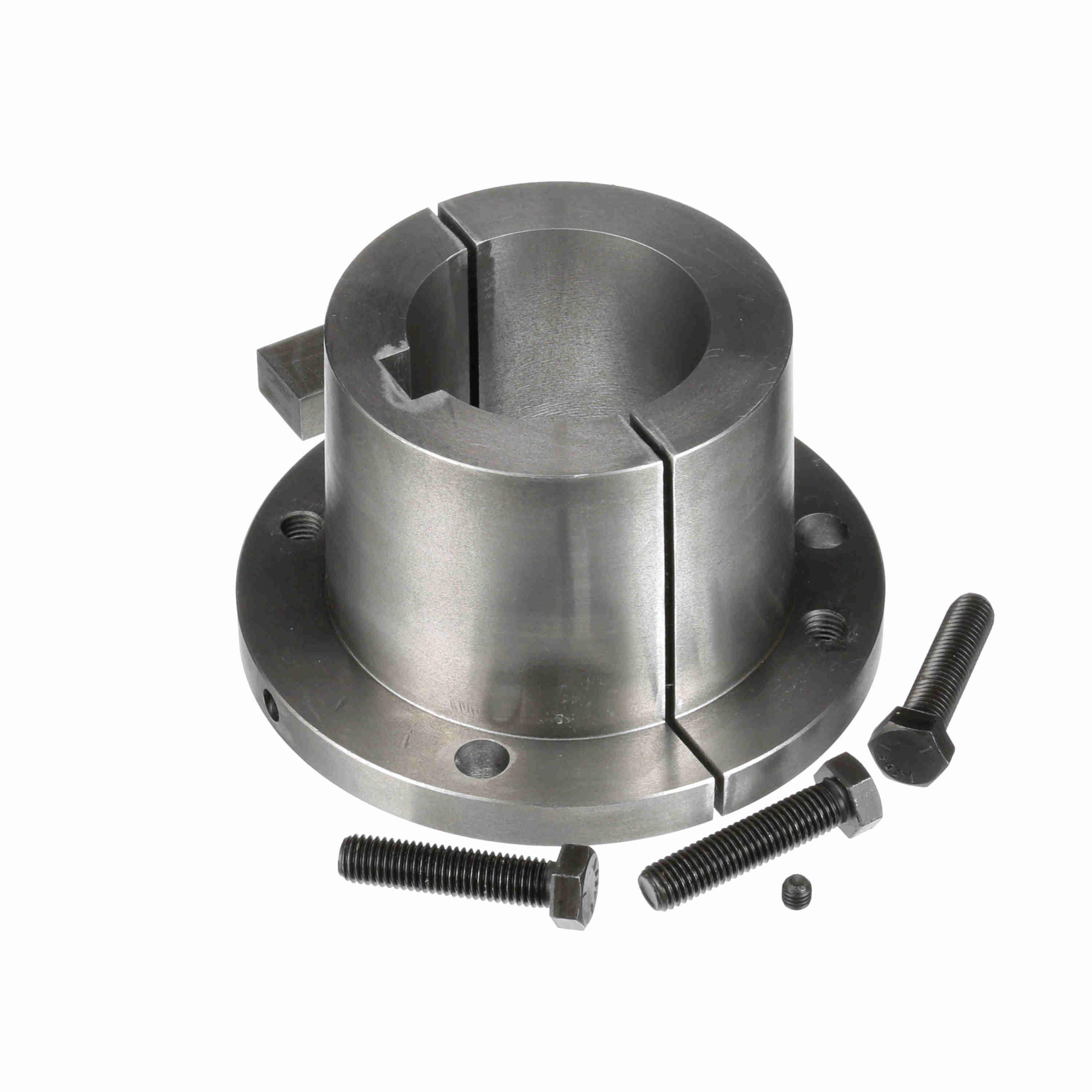

Browning® 1071414 Type U0 Split-Taper Bushing, 3-3/4 in Dia Bore, 5.766 in Dia Small End/6 in Dia Large End Dia Barrel, 8-3/8 in Dia Flange, 4.938 in OAL, Sintered Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROU03 3/4
- Alt Part Number: U0 3 3/4
- MPN: 1071414
- UPC: 662289192014
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
Browning® Split-Taper Bushing, Type U0, 3-3/4 in Bore, 5.766 in Dia Small End/6 in Dia Large End Barrel Diameter, 7 in Diameter Bolt Circle, 8-3/8 in Diameter Flange, 3/4 in Flange Thickness, 3 Bolt Holes, 5/8 x 2-3/4 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 4.938 in Overall Length, Sintered Steel
| Barrel Diameter | : | 5.766 in Dia Small End/6 in Dia Large End |
| Bolt Circle Diameter | : | 7 in |
| Bore Diameter | : | 3-3/4 in |
| Flange Diameter | : | 8-3/8 in |
| Flange Thickness | : | 3/4 in |
| Material | : | Sintered Steel |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 4.938 in |
| Screw Size | : | 5/8 x 2-3/4 in |
| Suitable For Use With | : | Gearbelt® Multiple Groove Sheaves |
| Type | : | Type U0 |
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
