Browning® 1071281 BROU02 11/16

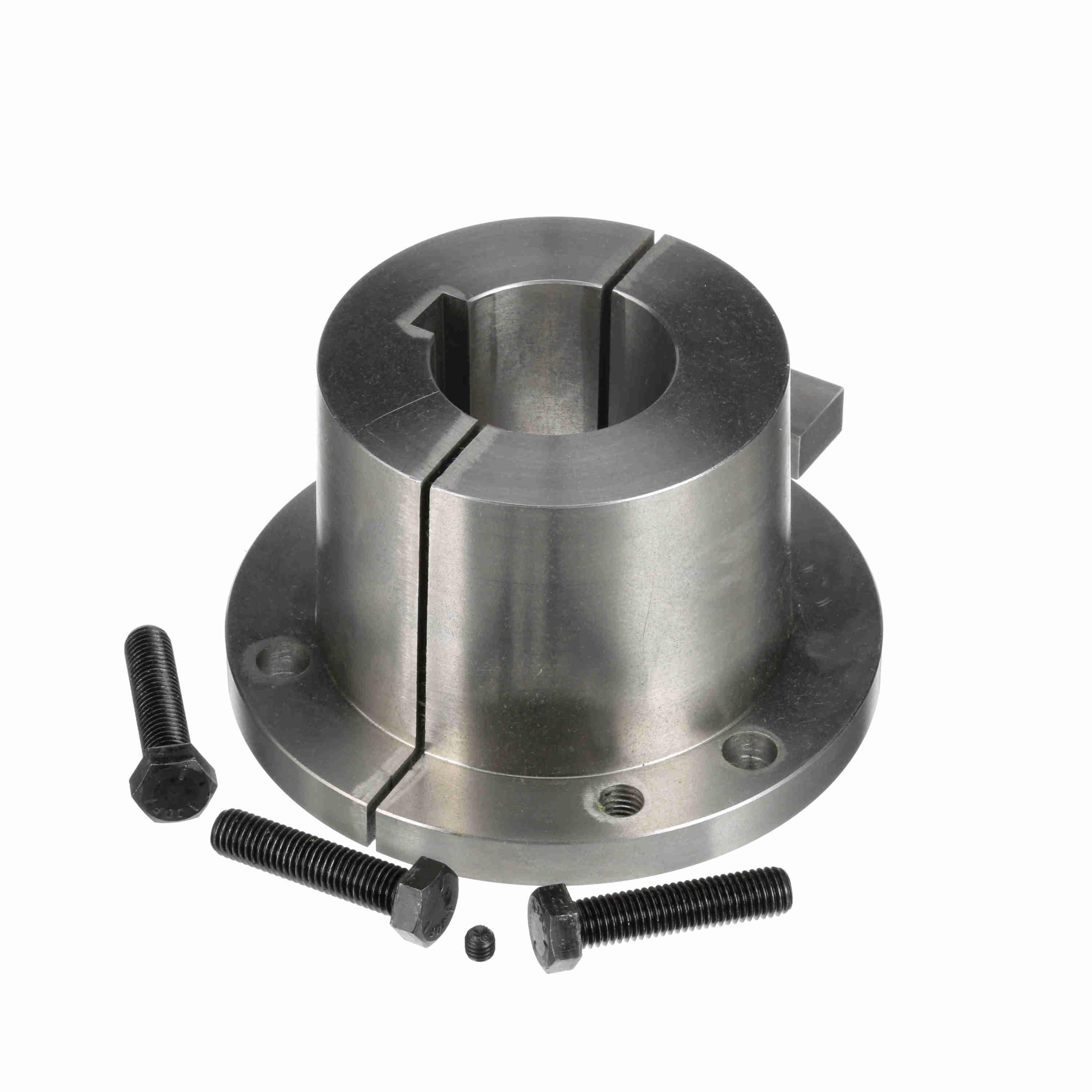

Browning® 1071281 Type U0 Split-Taper Bushing, 2-11/16 in Dia Bore, 5.766 in Dia Small End/6 in Dia Large End Dia Barrel, 8-3/8 in Dia Flange, 5-1/4 in OAL, Cast Iron
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROU02 11/16
- Alt Part Number: U0 2 11/16
- MPN: 1071281
- UPC: 662289251834
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
Browning® Split-Taper Bushing, Type U0, 2-11/16 in Bore, 5.766 in Dia Small End/6 in Dia Large End Barrel Diameter, 7 in Diameter Bolt Circle, 8-3/8 in Diameter Flange, 1.063 in Flange Thickness, 3 Bolt Holes, 5/8 x 2-3/4 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 5-1/4 in Overall Length, Cast Iron
| Barrel Diameter | : | 5.766 in Dia Small End/6 in Dia Large End |
| Bolt Circle Diameter | : | 7 in |
| Bore Diameter | : | 2-11/16 in |
| Flange Diameter | : | 8-3/8 in |
| Flange Thickness | : | 1.063 in |
| Material | : | Cast Iron |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 5-1/4 in |
| Screw Size | : | 5/8 x 2-3/4 in |
| Suitable For Use With | : | Gearbelt® Multiple Groove Sheaves |
| Type | : | Type U0 |
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
