Browning® 1070598 BROR22 1/16

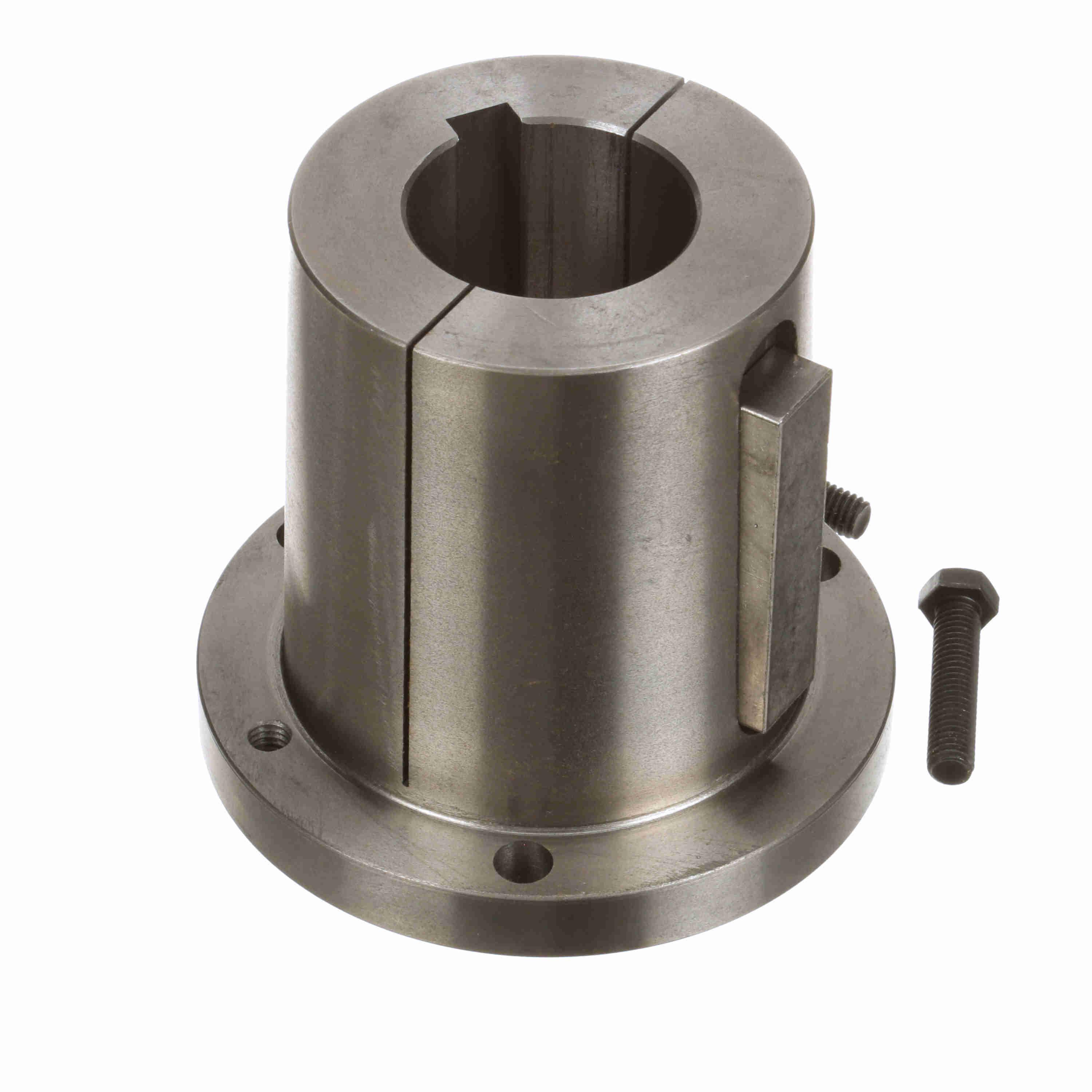

Browning® 1070598 Type R2 Split-Taper Bushing, 2-1/16 in Dia Bore, 3-3/4 in Dia Small End/4 in Dia Large End Dia Barrel, 5-3/8 in Dia Flange, 4-7/8 in OAL, Sintered Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROR22 1/16
- Alt Part Number: R2 2 1/16
- MPN: 1070598
- UPC: 662289260928
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
Browning® Split-Taper Bushing, Type R2, 2-1/16 in Bore, 3-3/4 in Dia Small End/4 in Dia Large End Barrel Diameter, 4-5/8 in Diameter Bolt Circle, 5-3/8 in Diameter Flange, 5/8 in Flange Thickness, 3 Bolt Holes, 3/8 x 1-3/4 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 4-7/8 in Overall Length, Sintered Steel
| Barrel Diameter | : | 3-3/4 in Dia Small End/4 in Dia Large End |
| Bolt Circle Diameter | : | 4-5/8 in |
| Bore Diameter | : | 2-1/16 in |
| Flange Diameter | : | 5-3/8 in |
| Flange Thickness | : | 5/8 in |
| Material | : | Sintered Steel |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 4-7/8 in |
| Screw Size | : | 3/8 x 1-3/4 in |
| Suitable For Use With | : | Gearbelt® Multiple Groove Sheaves |
| Type | : | Type R2 |
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
