Browning® 1070259 BROR12 1/4
  1. pin-int

Browning® 1070259 BROR12 1/4

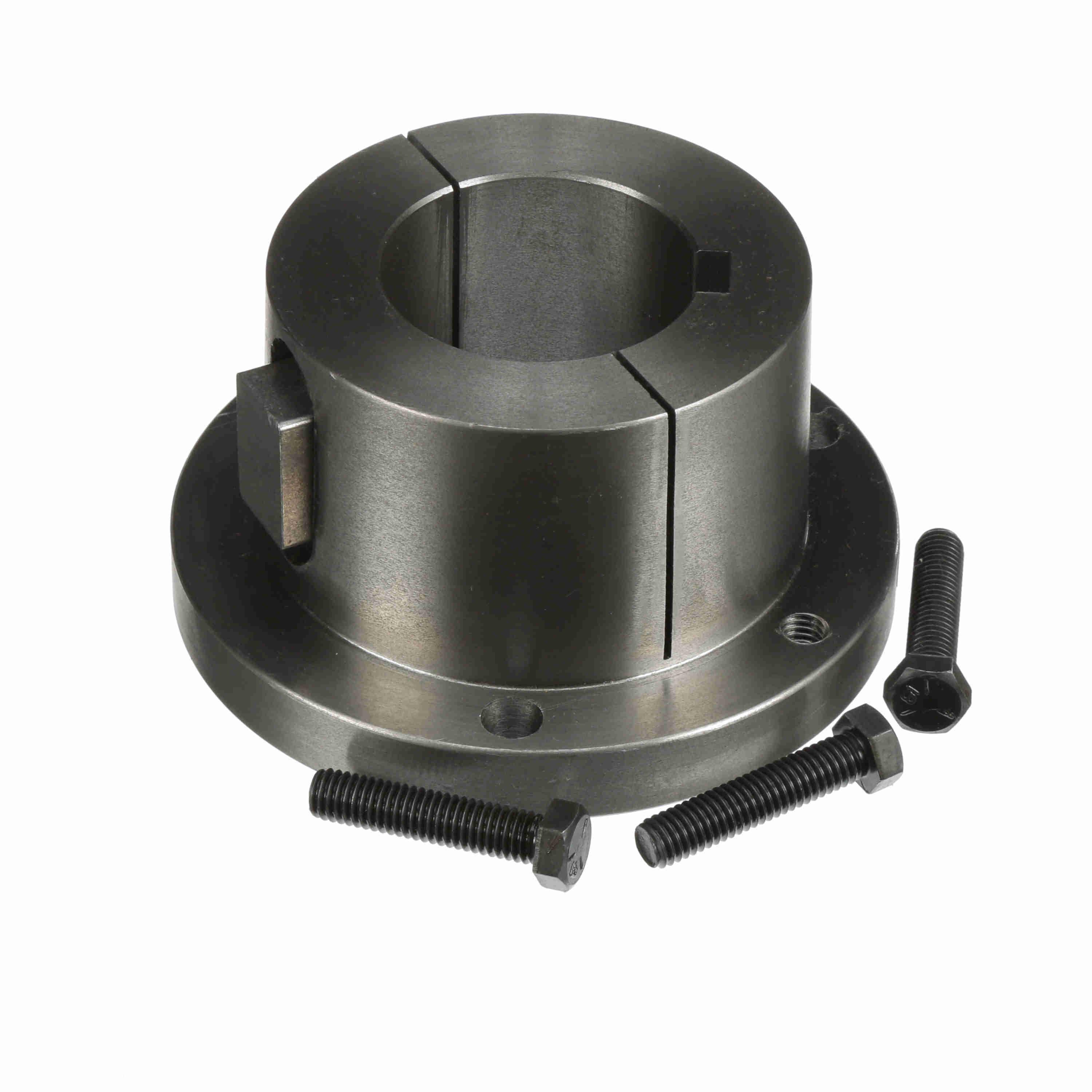

Browning® 1070259 Split Taper Bushing, 2-1/4 in Dia Bore, 3-7/8 in Small End/4 in Large End Dia Barrel, 5-3/8 in Dia Flange, 2-7/8 in OAL, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROR12 1/4
  • Alt Part Number: R1 2 1/4
  • MPN: 1070259
  • UPC: 662289120611
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

Browning® Split Taper Bushing, 2-1/4 in Bore Dia, 3-7/8 in Small End/4 in Large End Barrel Dia, 4-5/8 in Bolt Circle, 5-3/8 in Flange Dia, 5/8 in Flange Thickness, 3 Bolt Holes, 3/8 x 1-3/4 in Screw, For Use With: Browning® Multiple Groove Sheave, 2-7/8 in Overall Length, 1/2 x 1/4 in Keyway, Steel

Barrel Diameter      :      3-7/8 in Small End/4 in Large End
Bolt Circle Diameter      :      4-5/8 in
Bore Diameter      :      2-1/4 in
Flange Diameter      :      5-3/8 in
Flange Thickness      :      5/8 in
Keyway Size      :      1/2 x 1/4 in
Material      :      Steel
Number of Bolt Holes      :      3
Overall Length      :      2-7/8 in
Screw Size      :      3/8 x 1-3/4 in
Suitable For Use With      :      Browning® Multiple Groove Sheave
  • Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
  • Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
  • 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1071505_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3694726_Specification_Sheet.pdf
