Browning® 1070135 BROR11 1/2
  1. pin-int

Browning® 1070135 BROR11 1/2

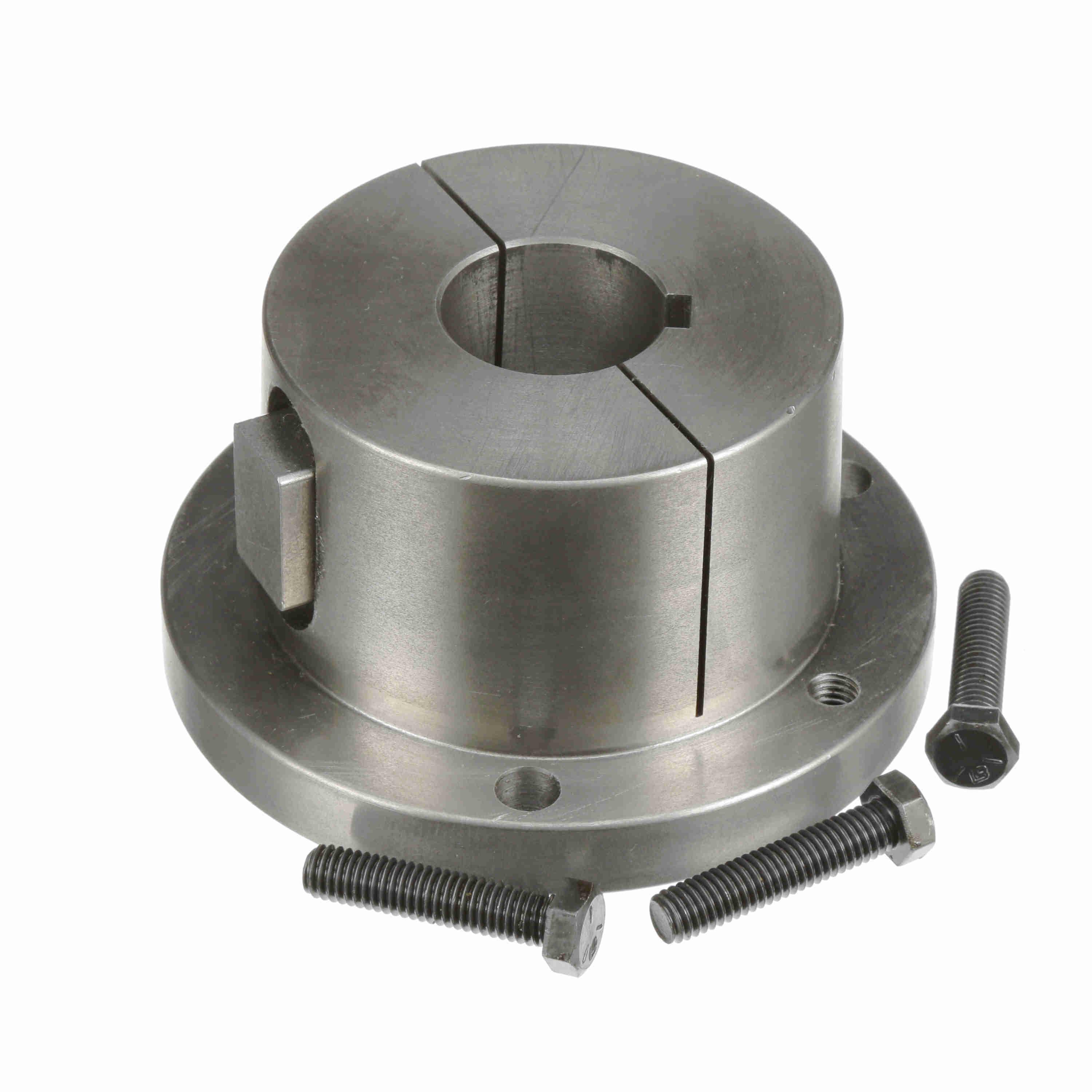

Browning® 1070135 Split Taper Bushing, 1-1/2 in Dia Bore, 3-7/8 in Small End/4 in Large End Dia Barrel, 5-3/8 in Dia Flange, 2-7/8 in OAL, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROR11 1/2
  • Alt Part Number: R1 1 1/2
  • MPN: 1070135
  • UPC: 662289220465
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

Browning® Split Taper Bushing, 1-1/2 in Bore Dia, 3-7/8 in Small End/4 in Large End Barrel Dia, 4-5/8 in Bolt Circle, 5-3/8 in Flange Dia, 5/8 in Flange Thickness, 3 Bolt Holes, 3/8 x 1-3/4 in Screw, For Use With: Browning® Multiple Groove Sheave, 2-7/8 in Overall Length, 3/8 x 3/16 in Keyway, Steel

Barrel Diameter      :      3-7/8 in Small End/4 in Large End
Bolt Circle Diameter      :      4-5/8 in
Bore Diameter      :      1-1/2 in
Flange Diameter      :      5-3/8 in
Flange Thickness      :      5/8 in
Keyway Size      :      3/8 x 3/16 in
Material      :      Steel
Number of Bolt Holes      :      3
Overall Length      :      2-7/8 in
Screw Size      :      3/8 x 1-3/4 in
Suitable For Use With      :      Browning® Multiple Groove Sheave
  • Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
  • Highest torque carrying capacity in the Browning® bushing product line
  • Double split barrel assures true concentricity grips the shaft with positive clamp fit
  • 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3694726_Specification_Sheet.pdf
