Browning® 1069947 BROP1.978-10INV
  1. pin-int

Browning® 1069947 BROP1.978-10INV

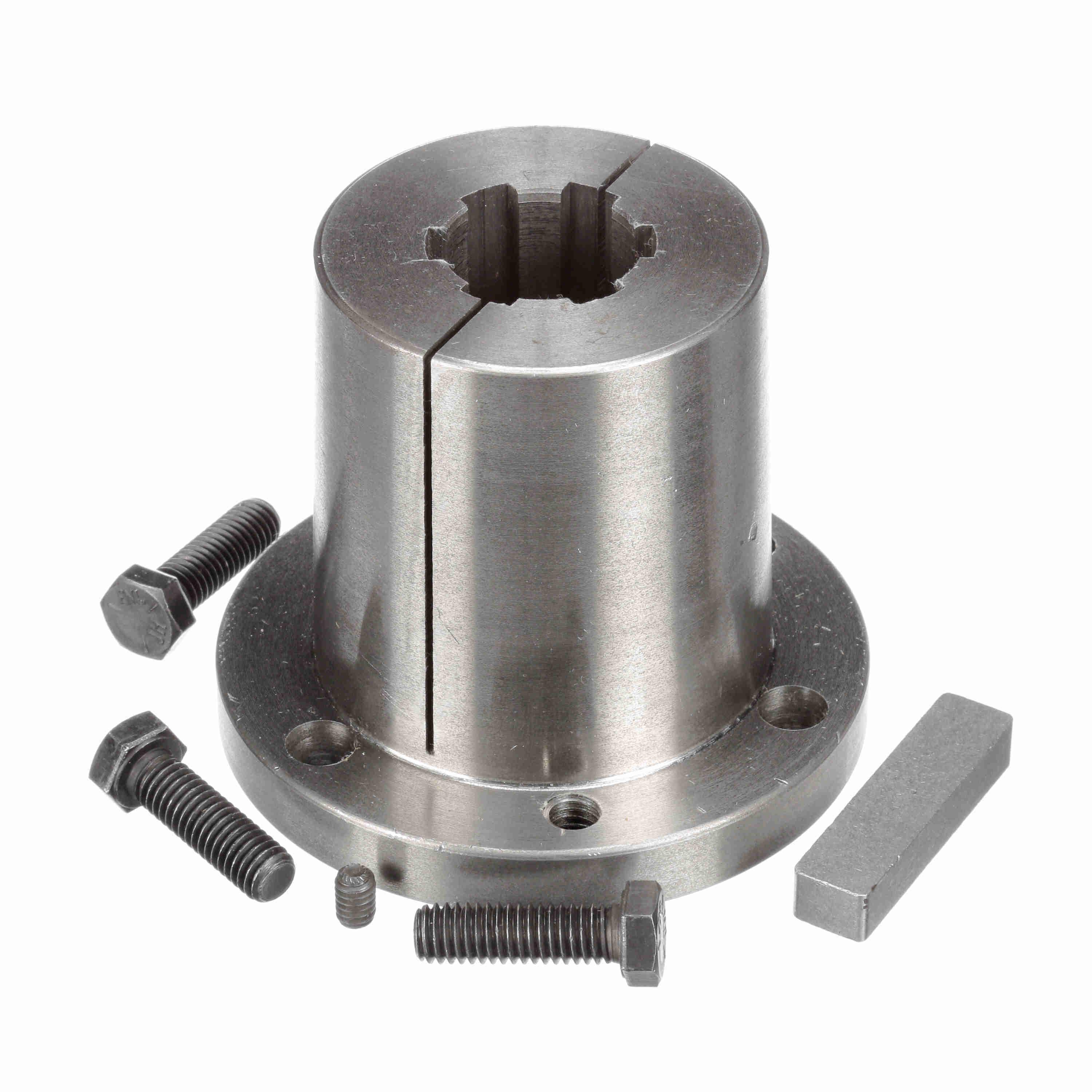

Browning® 1069947 Type P1 Split-Taper Bushing, 0.978 in Dia Bore, 1.856 in Dia Small End/1.938 in Dia Large End Dia Barrel, 3 in Dia Flange, 1-15/16 in OAL

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROP1.978-10INV
  • Alt Part Number: P1 978 10 SPL B
  • MPN: 1069947
  • UPC: 662289293810
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

Browning® Split-Taper Bushing, Type P1, 0.978 in Bore, 1.856 in Dia Small End/1.938 in Dia Large End Barrel Diameter, 2-7/16 in Diameter Bolt Circle, 3 in Diameter Flange, 13/32 in Flange Thickness, 3 Bolt Holes, 5/16 x 1 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 1-15/16 in Overall Length

Barrel Diameter      :      1.856 in Dia Small End/1.938 in Dia Large End
Bolt Circle Diameter      :      2-7/16 in
Bore Diameter      :      0.978 in
Flange Diameter      :      3 in
Flange Thickness      :      13/32 in
Number of Bolt Holes      :      3
Overall Length      :      1-15/16 in
Screw Size      :      5/16 x 1 in
Suitable For Use With      :      Gearbelt® Multiple Groove Sheaves
Type      :      Type P1
  • Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
  • Highest torque carrying capacity
  • Double split barrel assures true concentricity grips the shaft with positive clamp fit
  • 10 involute spline bore bushing
