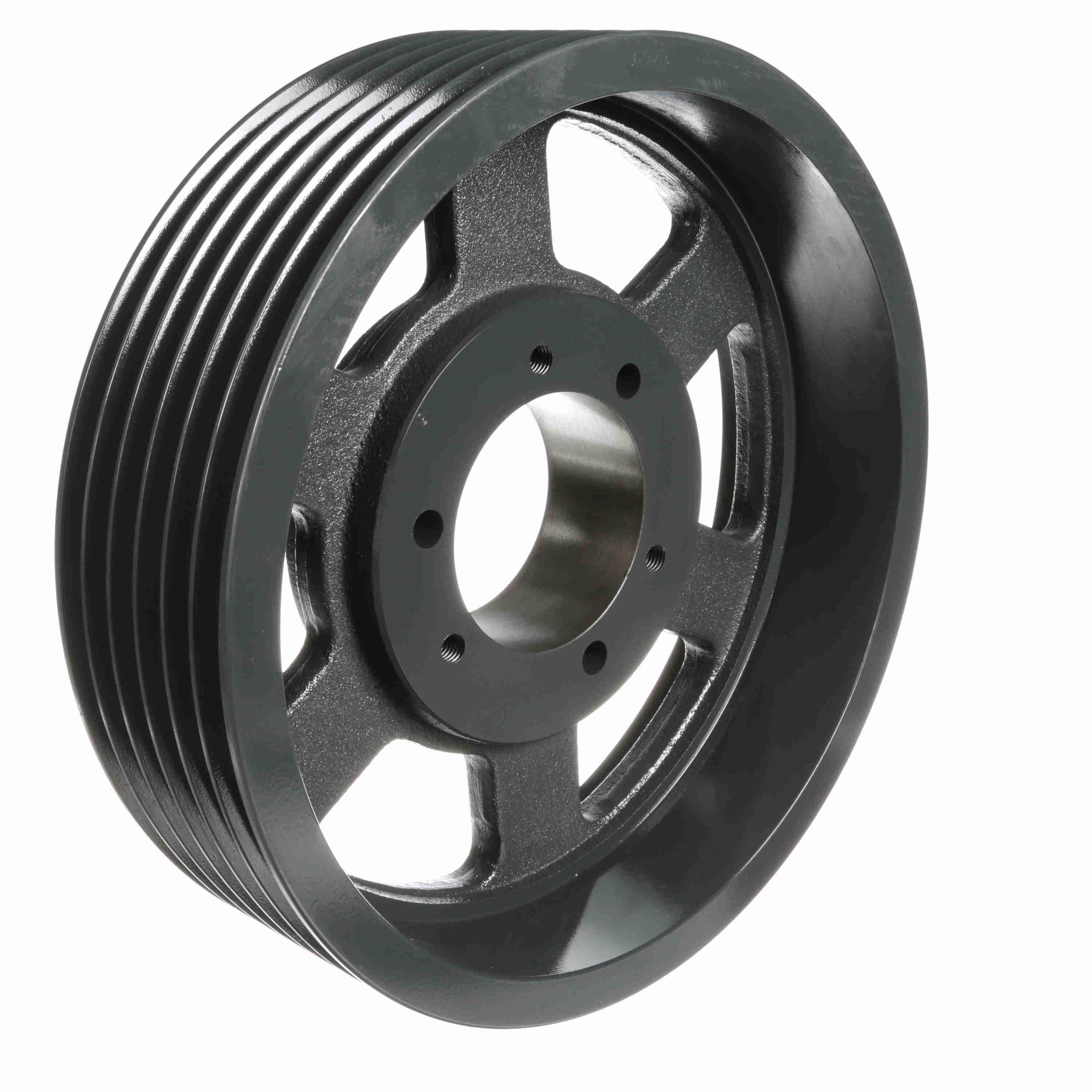

Browning® 1066380 BRO65V1400F

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, QD® Bore, 1 to 4 in Bore, 14 in OD, 13.9 in Pitch Diameter, 6 Grooves, 4-7/16 in Face Width, 7/16 in Hub Projection, F Bushing, 4-7/8 in Overall Length, For Use With: 5V-Cross Section V-Belts, Cast Iron

• Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
• Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today
• One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
• VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
• The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
• When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
