Browning® 1066117 BRO55V800E
  1. pin-int

Browning® 1066117 BRO55V800E

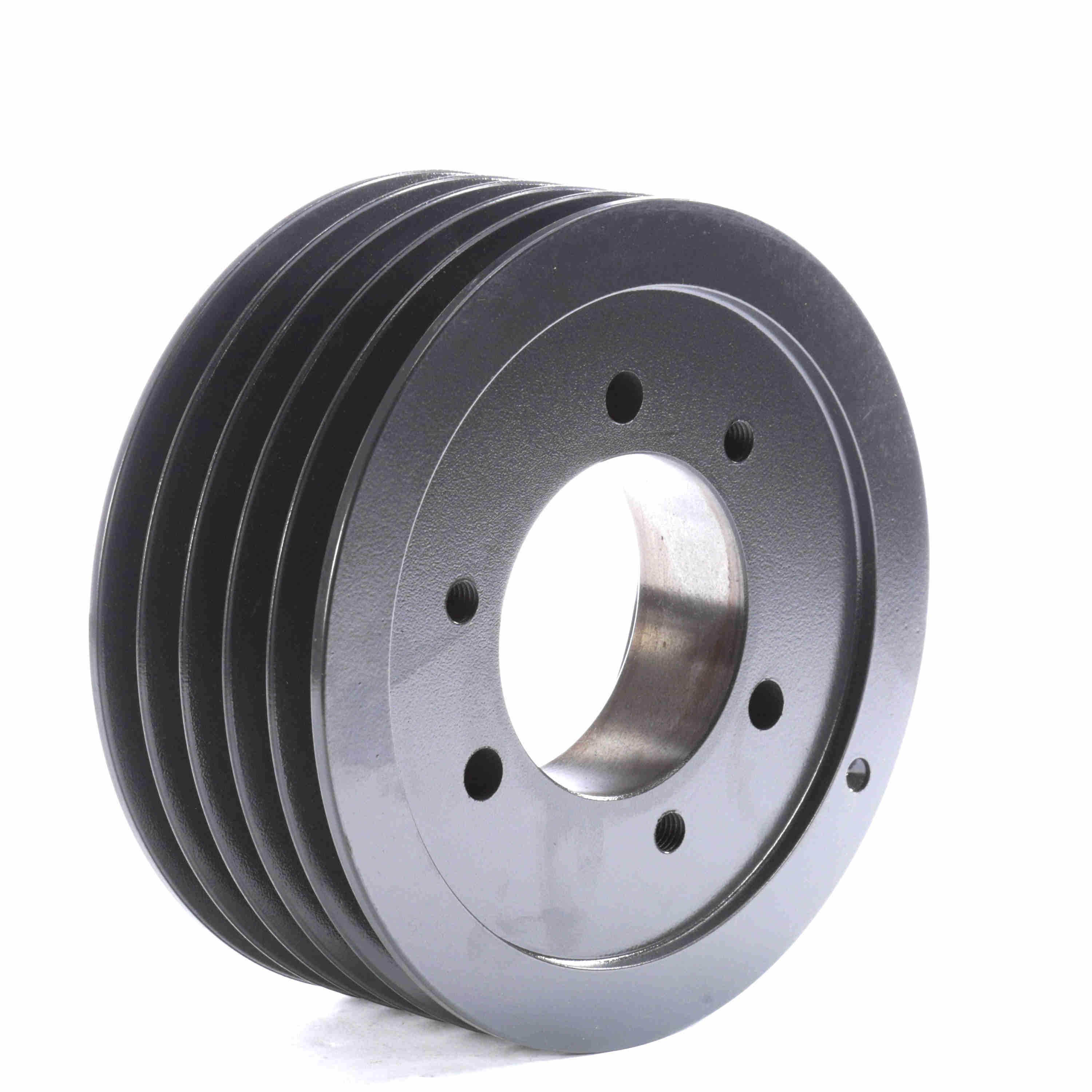

Browning® 1066117 Type A Solid Multiple Sheave, 0.88 to 3.5 in QD® Bore, 8 in OD, 5 Grooves, 7.9 in Dia Pitch, 3-3/4 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO55V800E
  • Alt Part Number: 55V800E
  • MPN: 1066117
  • UPC: 662289393695
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type A Solid, QD® Bore, 0.88 to 3.5 in Bore, 8 in OD, 7.9 in Pitch Diameter, 5 Grooves, 3-3/4 in Face Width, E Bushing, For Use With: GripBelt® 5V Cross Section V-Belt, Cast Iron

Bore Diameter      :      0.88 to 3.5 in
Bore Type      :      QD®
Bushing Type      :      E
Face Width      :      3-3/4 in
Material      :      Cast Iron
Number of Grooves      :      5
Outside Diameter      :      8 in
Pitch Diameter      :      7.9 in
Suitable For Use With      :      GripBelt® 5V Cross Section V-Belt
Type      :      Type A Solid
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
