Browning® 1062199 BRO4R5V125

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

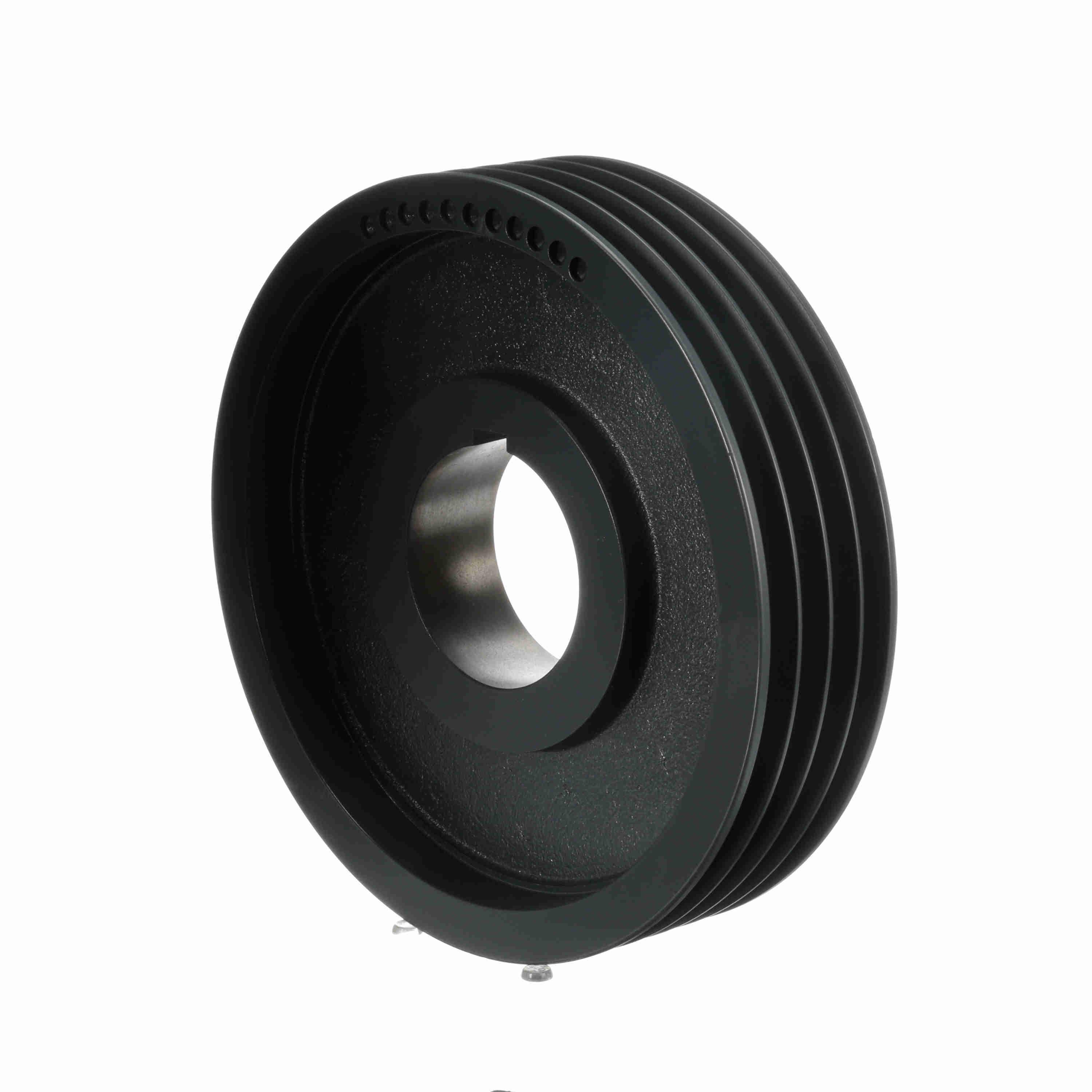

Browning® Multiple Sheave, Type 13 Web, Split Taper Bore, 1.13 to 3.75 in Bore, 12-1/2 in OD, 12.4 in Pitch Diameter, 4 Grooves, 3-1/16 in Face Width, R1 Bushing, 3-11/32 in Overall Length, For Use With: GripBelt® 5V Cross Section V-Belt, Cast Iron

• Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
• Molded Teeth - Shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
• High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
• Compression Section - Bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
