Browning® 1061902 BRO3R5V97

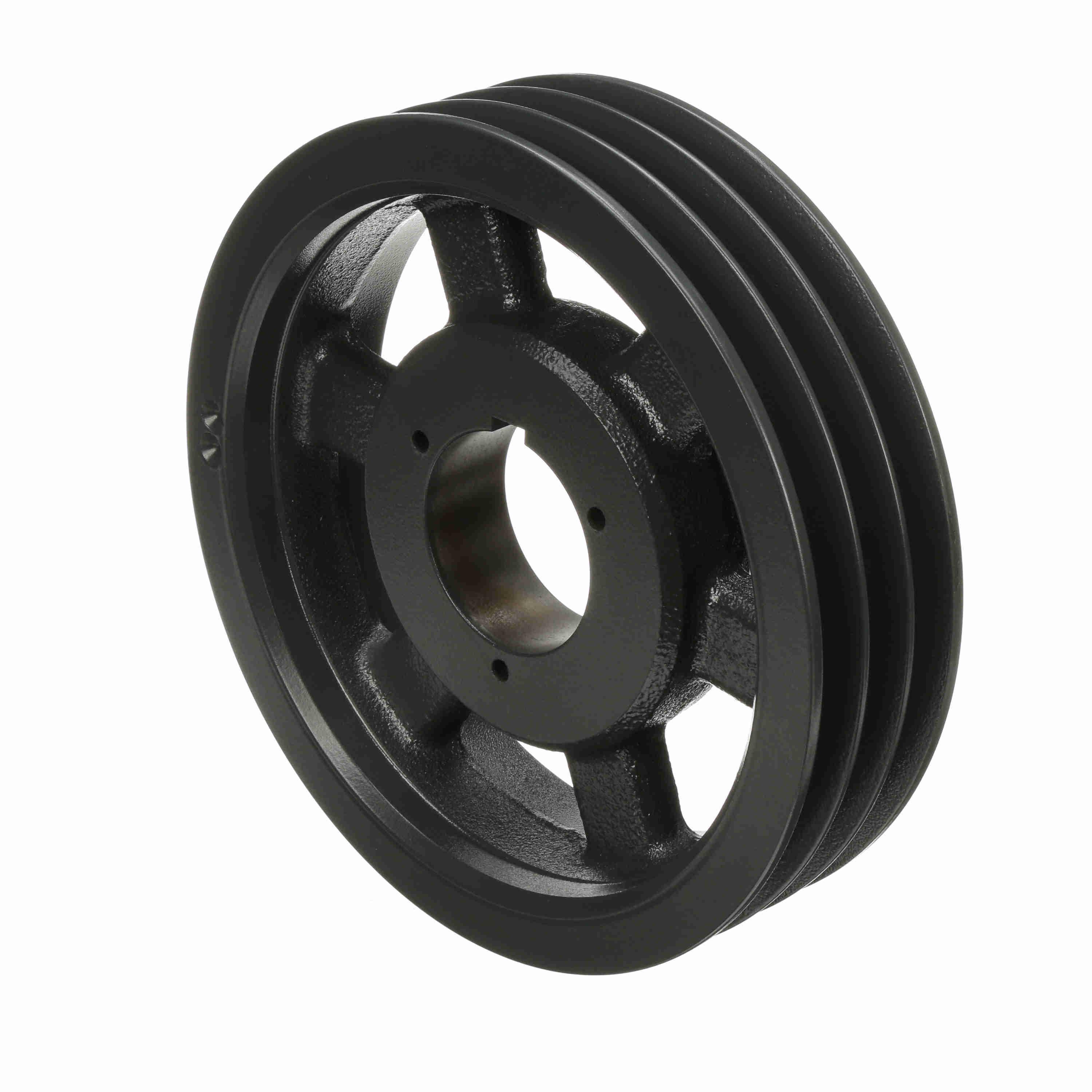

Browning® 1061902 Type 13 Web Multiple Sheave, 1-1/8 to 3-3/4 in Split Taper Bore, 9-3/4 in OD, 3 Grooves, 9.65 in Dia Pitch, 2-3/8 in W Face
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BRO3R5V97
- Alt Part Number: 3R5V97
- MPN: 1061902
- UPC: 662289180738
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
Browning® Multiple Sheave, Type 13 Web, Split Taper Bore, 1-1/8 to 3-3/4 in Bore Dia, 9-3/4 in Outside Dia, 9.65 in, 3 Grooves, 2-3/8 in Face Width, 3/4 in Hub Projection, R1 Bushing, 3-23/64 in Overall Length, For Use With: Gripbelt® 5V Cross Section Belt, Cast Iron
| Bore Diameter | : | 1-1/8 to 3-3/4 in |
| Bore Type | : | Split Taper |
| Bushing Type | : | R1 |
| Face Width | : | 2-3/8 in |
| Hub Projection | : | 3/4 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 3 |
| Outside Diameter | : | 9-3/4 in |
| Overall Length | : | 3-23/64 in |
| Pitch Diameter | : | 9.65 in |
| Suitable For Use With | : | Gripbelt® 5V Cross Section Belt |
| Type | : | Type 13 Web |
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
