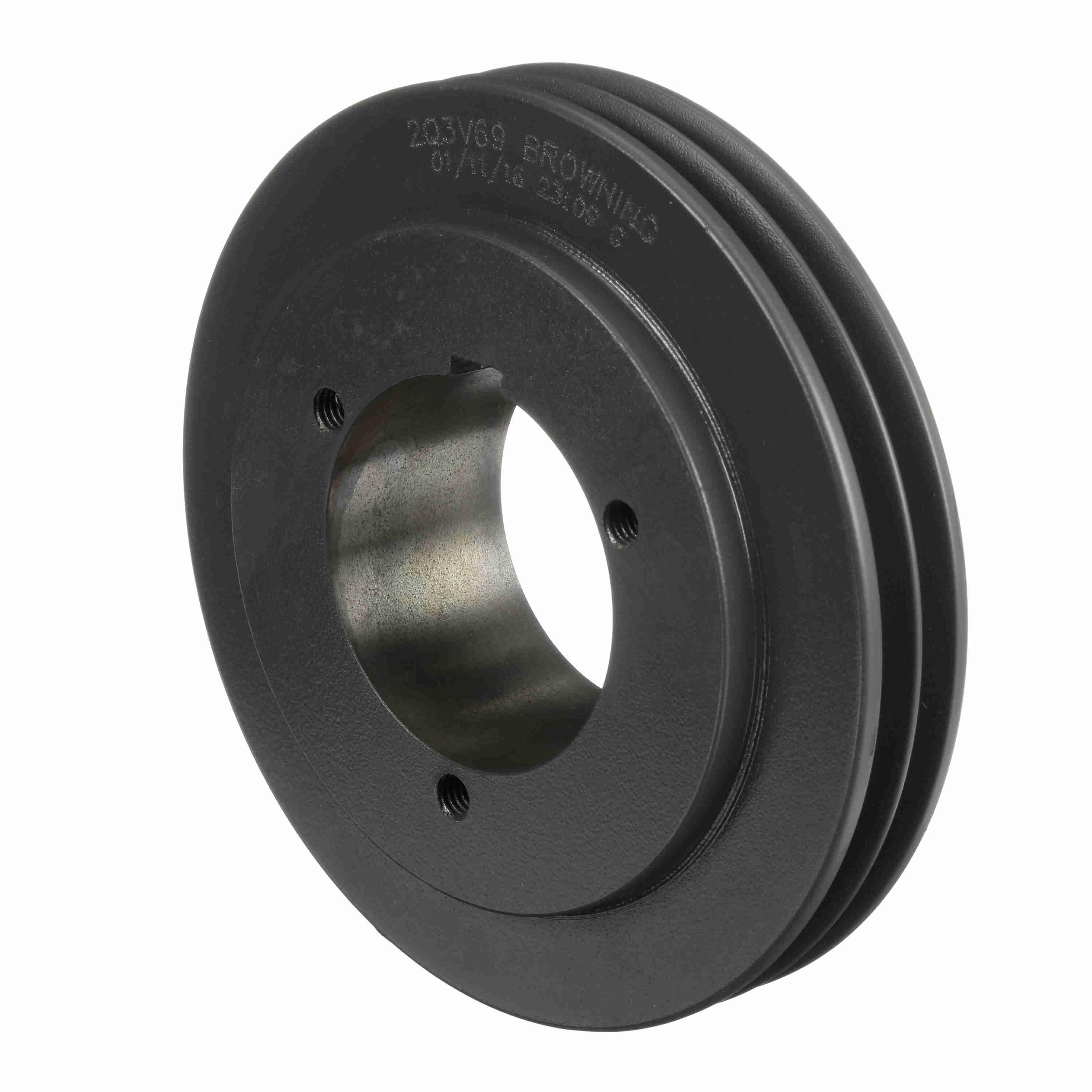

Browning® 1060656 BRO2Q3V69

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 16 Arm, Split Taper Bore, 3/4 to 2-11/16 in Bore, 6.9 in OD, 6.85 in Pitch Diameter, 2 Grooves, 1-3/32 in Face Width, 0.32813 in Hub Projection, Q1 Bushing, 2-25/32 in Overall Length, For Use With: GripBelt® 3V Cross Section V-Belt, Cast Iron

• Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
• Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
• 1 and 2 Grooves are available to meet any fractional horsepower requirement
• Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
