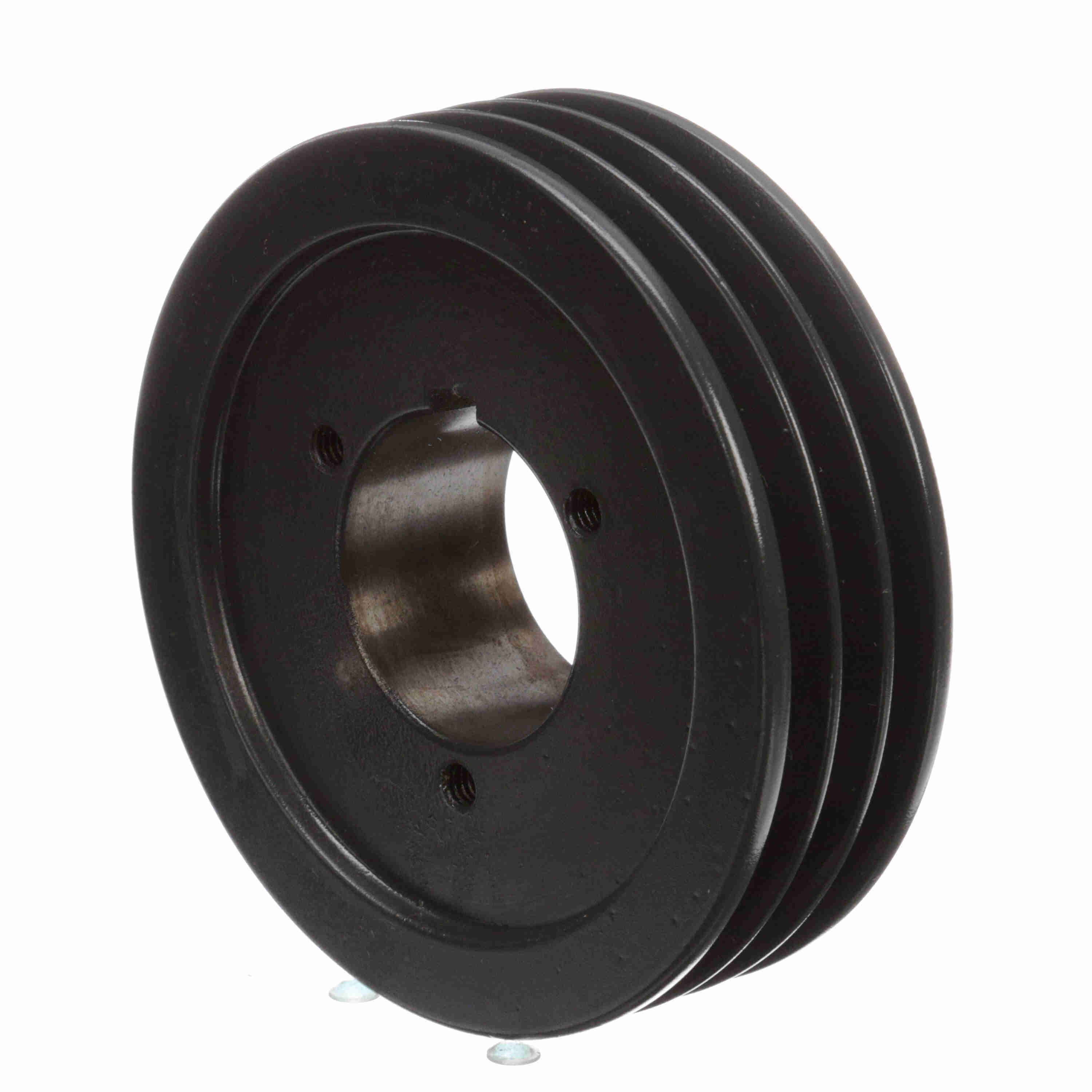

Browning® 1060300 BRO3P3V53

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 13 Solid, Split Taper Bore, 1/2 to 1-3/4 in Bore, 5.3 in OD, 5-1/4 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, P1 Bushing, 2-3/16 in Overall Length, For Use With: GripBelt® 3V Cross Section V-Belt, Cast Iron

• Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
