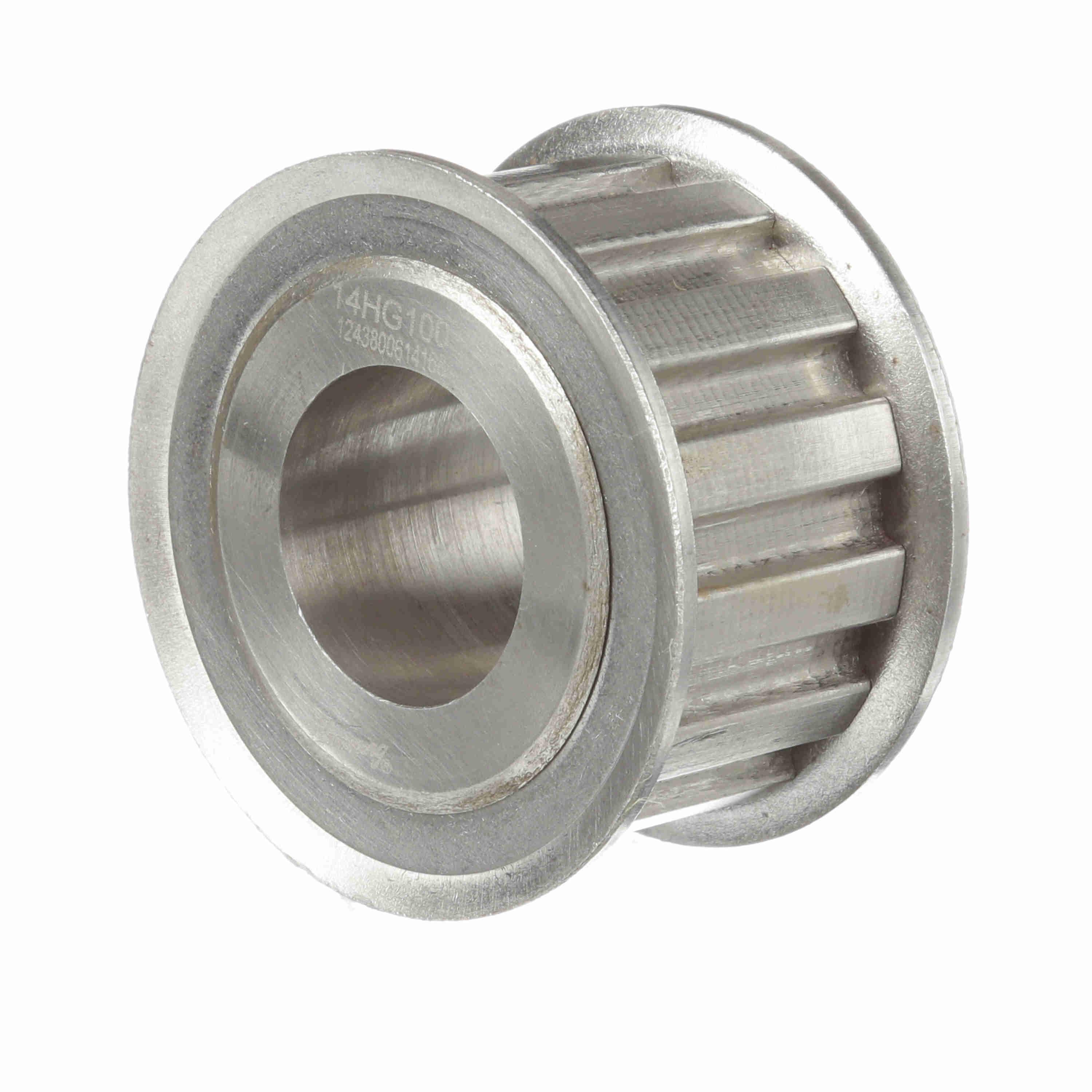

Browning® 1056803 BRO14HG100

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type 4, Split Taper Bore, 3/8 to 1 in Bore Dia, 2.174 in Outside Dia, 2.228 in, 14 Grooves, 1/2 in Pitch, 1-1/4 in Face Width, 2-7/16 in Flange Dia, 2 in Hub Dia, 7/16 in Hub Projection, G Bushing, 1-7/8 in Overall Length, For Use With: 1 in W Type H100 Belt

• High modulus strength member, needs minimum take-up
• Freedom from initial belt tension, reduces bearing loads, increases life
• Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
• Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
• Less heat, because Gearbelt® drives generate virtually no friction
• No lubrication required
• Wide load capacity range
• Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1055300_Installation_Manual.pdf
