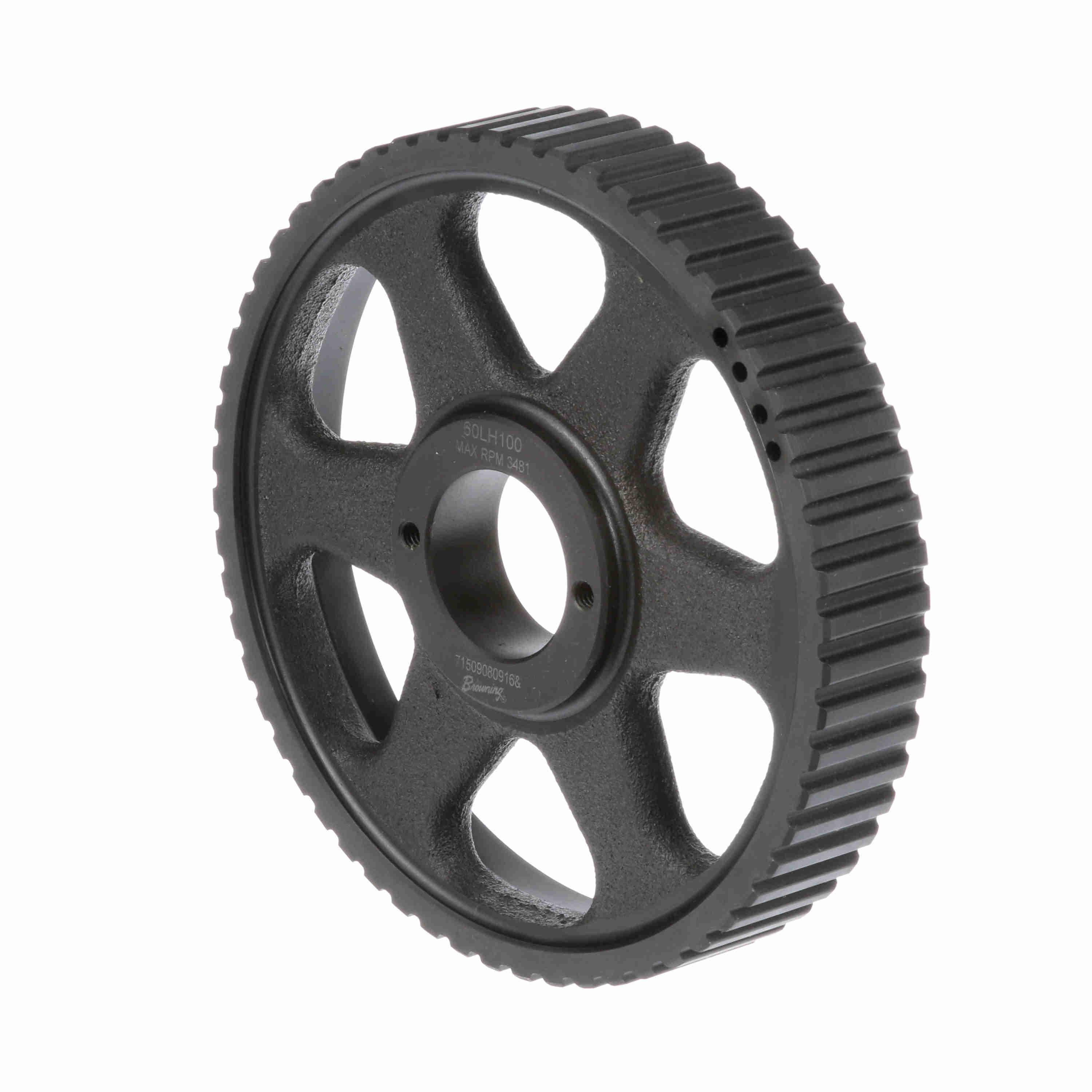

Browning® 1056704 BRO60LH100

Browning® Gearbelt® Synchronous Timing Pulley, Type 18, Split Taper Bore, 3/8 to 1-1/2 in Bore, 7.132 in OD, 7.162 in Pitch Diameter, 60 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, 2-1/2 in Diameter Hub, 0.063 in Hub Projection, H Bushing, 1-1/2 in Overall Length, For Use With: 1 in W Type L100 Belt

• Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
• Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
• High modulus strength member, needs minimum take-up
• Freedom from initial belt tension, reduces bearing loads, increases life
• Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
• Less heat, because Gearbelt® drives generate virtually no friction
• No lubrication required
• Wide load capacity range
• Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
