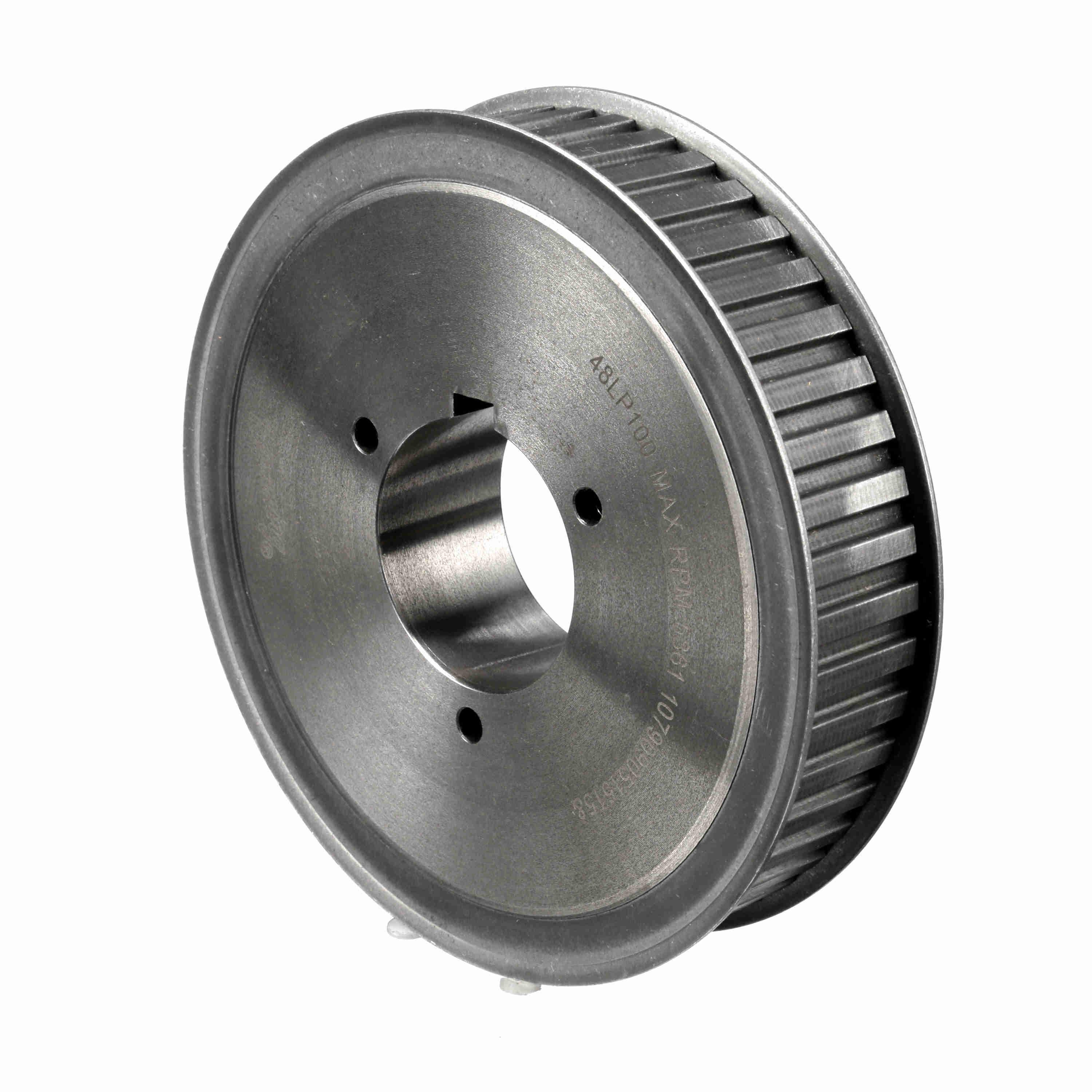

Browning® 1056696 BRO48LP100

Browning® Gearbelt® Synchronous Flanged Pulley, Type 6, Split Taper Bore, 1/2 to 1-3/4 in Bore, 5.7 in OD, 5.73 in Pitch Diameter, 48 Grooves, 3/8 in Pitch, 2.188 in Face Width, 6 in Diameter Flange, 3 in Diameter Hub, 1.938 in Hub Projection, P1 Bushing, 2-3/16 in Overall Length, For Use With: 1 in W Type L100 Belt

• Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
• Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
• High modulus strength member, needs minimum take-up
• Freedom from initial belt tension, reduces bearing loads, increases life
• Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
• Less heat, because Gearbelt® drives generate virtually no friction
• No lubrication required
• Wide load capacity range
• Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
• Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
• Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
