Browning® 1055623 BRO28HB150
  1. pin-int

Browning® 1055623 BRO28HB150

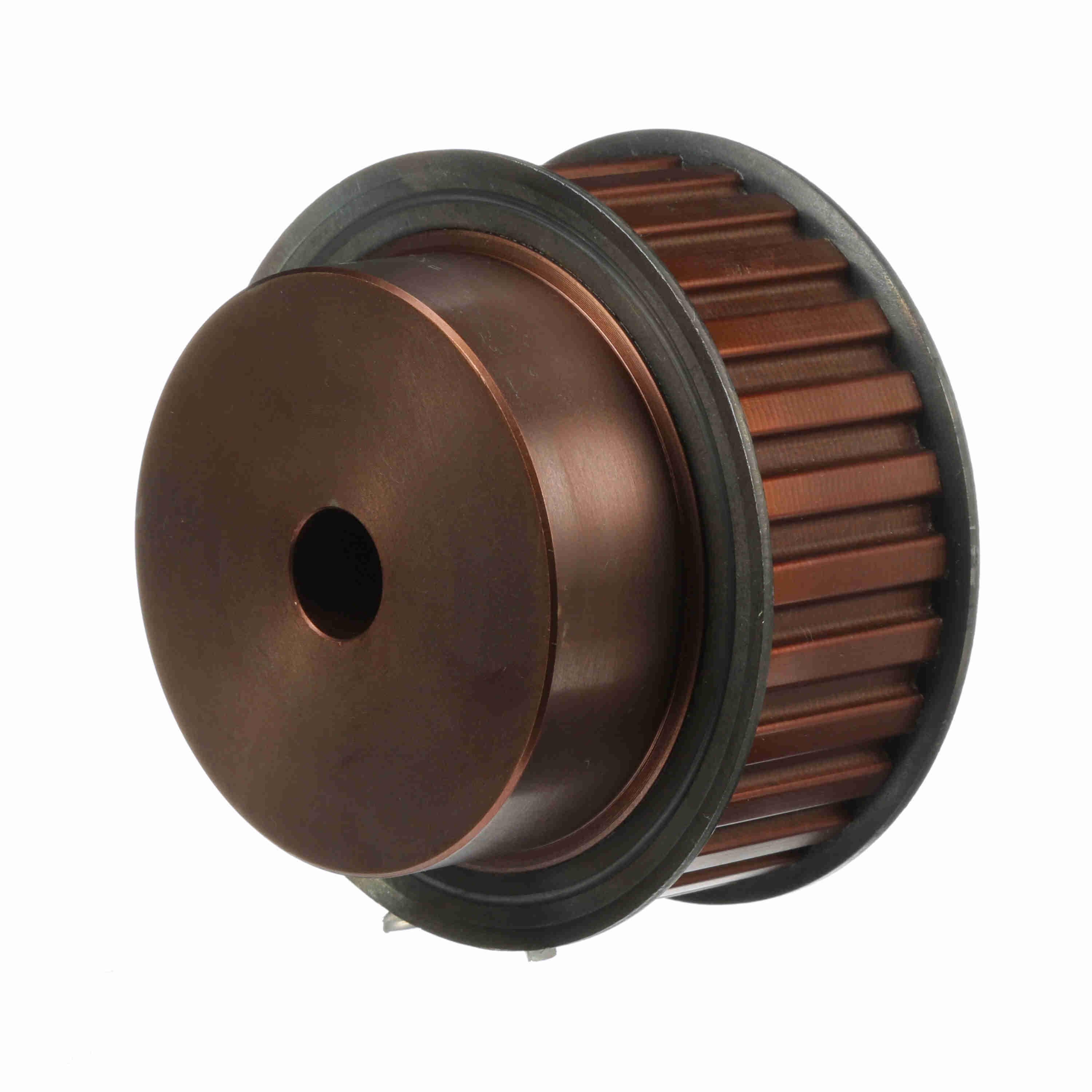

Browning® Gearbelt® 1055623 Type 2 Synchronous Timing Pulley With Flange, 3/4 to 2-5/16 in Bore, 4.402 in OD, 28 Grooves, 4.456 in Dia Pitch, 1-3/4 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO28HB150
  • Alt Part Number: 28HB150
  • MPN: 1055623
  • UPC: 662289302680
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type 2, 3/4 to 2-5/16 in Bore Dia, 4.402 in Outside Dia, 4.456 in Pitch Diameter, 28 Grooves, 1/2 in Pitch, 1-3/4 in Face Width, 4-11/16 in Flange Dia, 3-1/2 in Hub Dia, 1-1/8 in Hub Projection, MPB Bushing, 2-7/8 in OAL, For Use With: 1-1/2 in W H150 Type Belt

Bore Diameter      :      3/4 to 2-5/16 in
Bushing Type      :      MPB
Face Width      :      1-3/4 in
Flange Diameter      :      4-11/16 in
Hub Diameter      :      3-1/2 in
Hub Projection      :      1-1/8 in
Number of Grooves      :      28
Outside Diameter      :      4.402 in
Overall Length      :      2-7/8 in
Pitch Diameter      :      4.456 in
Pitch      :      1/2 in
Suitable For Use With      :      1-1/2 in W H150 Type Belt
Type      :      Type 2
  • High modulus strength member, needs minimum take-up
  • Freedom from initial belt tension, reduces bearing loads, increases life
  • Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
  • Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
  • Less heat, because Gearbelt® drives generate virtually no friction
  • No lubrication required
  • Wide load capacity range
  • Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
  • Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
  • Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_14H100JA_Specification_Sheet.pdf
