Browning® 1054832 BRO10XLB037

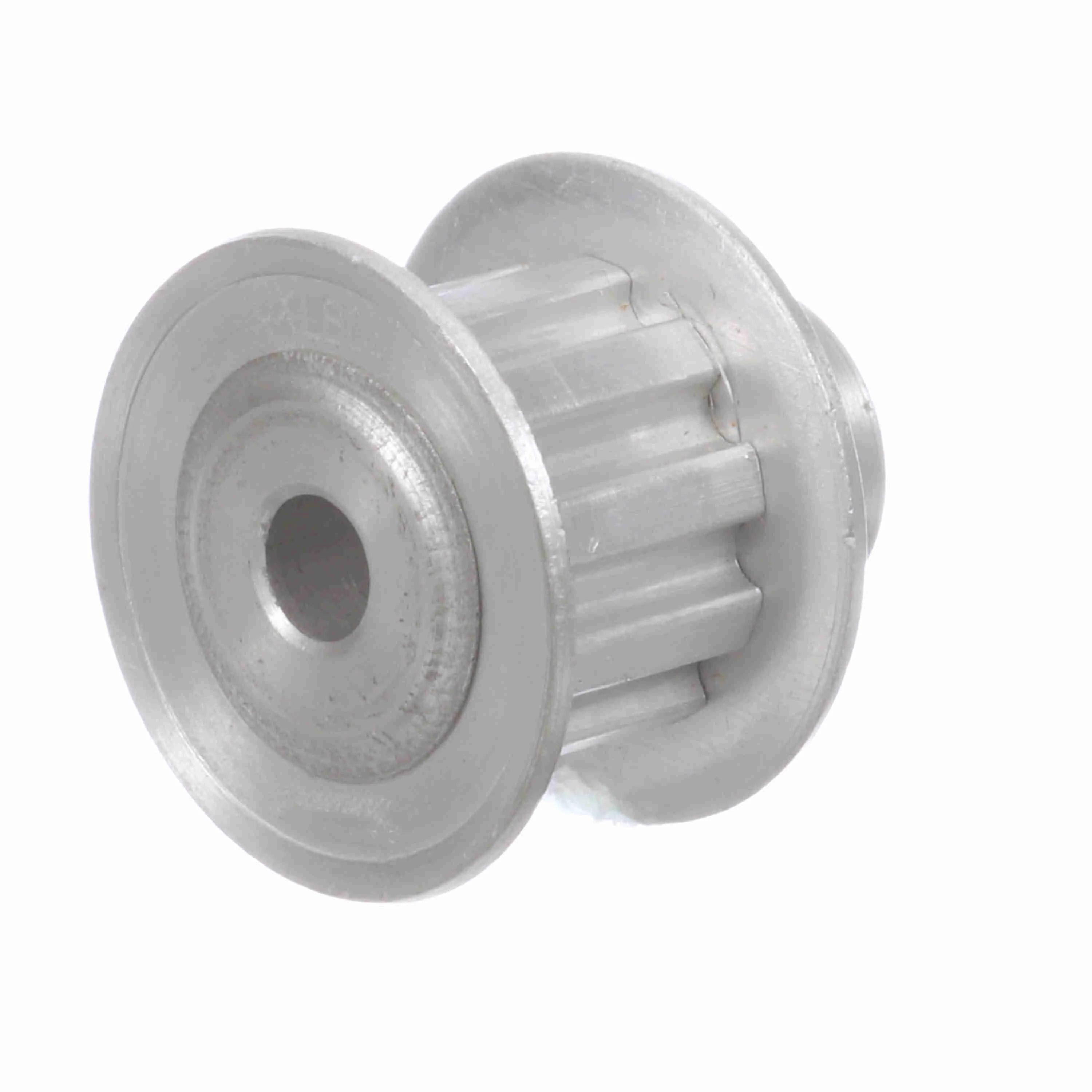

Browning® Gearbelt® 1054832 Type 2 Synchronous Timing Pulley With Flange, 3/16 to 3/16 in Bore, 0.617 in OD, 10 Grooves, 0.637 in Dia Pitch, 9/16 in W Face
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BRO10XLB037
- Alt Part Number: 10XLB037
- MPN: 1054832
- UPC: 662289192076
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
Browning® Gearbelt® Synchronous Timing Pulley, Type 2, 3/16 to 3/16 in Bore Dia, 0.617 in Outside Dia, 0.637 in Pitch Diameter, 10 Grooves, 1/5 in Pitch, 9/16 in Face Width, 15/16 in Flange Dia, 7/16 in Hub Dia, 1/4 in Hub Projection, MPB Bushing, 13/16 in OAL, For Use With: 3/8 in W XL Type Belt, Aluminum
| Bore Diameter | : | 3/16 to 3/16 in |
| Bushing Type | : | MPB |
| Face Width | : | 9/16 in |
| Flange Diameter | : | 15/16 in |
| Hub Diameter | : | 7/16 in |
| Hub Projection | : | 1/4 in |
| Material | : | Aluminum |
| Number of Grooves | : | 10 |
| Outside Diameter | : | 0.617 in |
| Overall Length | : | 13/16 in |
| Pitch Diameter | : | 0.637 in |
| Pitch | : | 1/5 in |
| Suitable For Use With | : | 3/8 in W XL Type Belt |
| Type | : | Type 2 |
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
