Browning® 1046218 BRO2VP711 1/8
  1. pin-int

Browning® 1046218 BRO2VP711 1/8

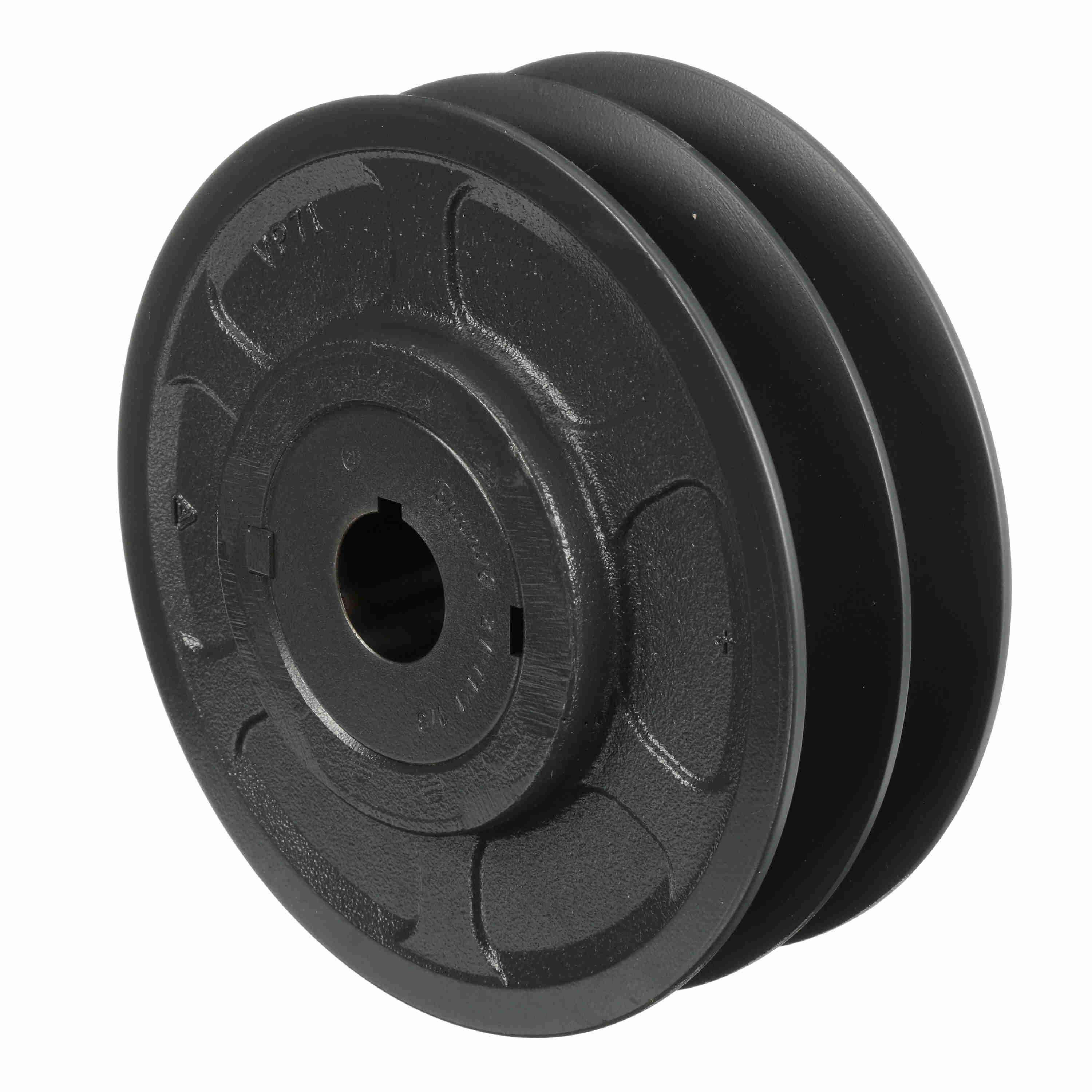

Browning® 1046218 2VP Type 5 FHP Variable Pitch Sheave, 1-1/8 in Finished Bore, 7.1 in OD, 2 Grooves, 5.5 to 6.5 in (A)/5.8 to 7 in (B)/5.8 to 7 in (5V) Dia Pitch, 1-5/8 to 2-3/8 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO2VP711 1/8
  • Alt Part Number: 2VP71X 1 1/8
  • MPN: 1046218
  • UPC: 662289115716
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® variable pitch design offers pitch diameter ranges 3.4 - 8.5 in to 25 hp. Unique manufacturing design ensures precise adjustability, balance and unmatched performance. Browning® variable pitch sheaves help reduce vibration by having a robust casting ribbed design that helps improve balance and heat dissipation. These sheaves offer tight thread tolerances for superior performance. 1 and 2 groove sheaves will accept the widest range of belts of any manufacturer 3L, 4L, A, AX, 5L, B, BX, 5V and 5VX.

Browning® FHP Variable Pitch Sheave, Type 5, Series: 2VP, Finished Bore, 1-1/8 in Bore, 7.1 in OD, 5.5 to 6.5 in (A)/5.8 to 7 in (B)/5.8 to 7 in (5V) Pitch Diameter, 2 Grooves, 1-5/8 to 2-3/8 in Face Width, 3-1/4 in Overall Length, For Use With: GripBelt® 4L/A, 5L/B and 5V Cross Section FHP V-Belt, Cast Iron

Bore Diameter      :      1-1/8 in
Bore Type      :      Finished
Face Width      :      1-5/8 to 2-3/8 in
Material      :      Cast Iron
Number of Grooves      :      2
Outside Diameter      :      7.1 in
Overall Length      :      3-1/4 in
Pitch Diameter      :      5.5 to 6.5 in (A)/5.8 to 7 in (B)/5.8 to 7 in (5V)
Series      :      2VP
Suitable For Use With      :      GripBelt® 4L/A, 5L/B and 5V Cross Section FHP V-Belt
Type      :      Type 5
  • Light duty applications up to 25 hp
  • One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
  • VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
  • Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
  • Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
  • Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today
