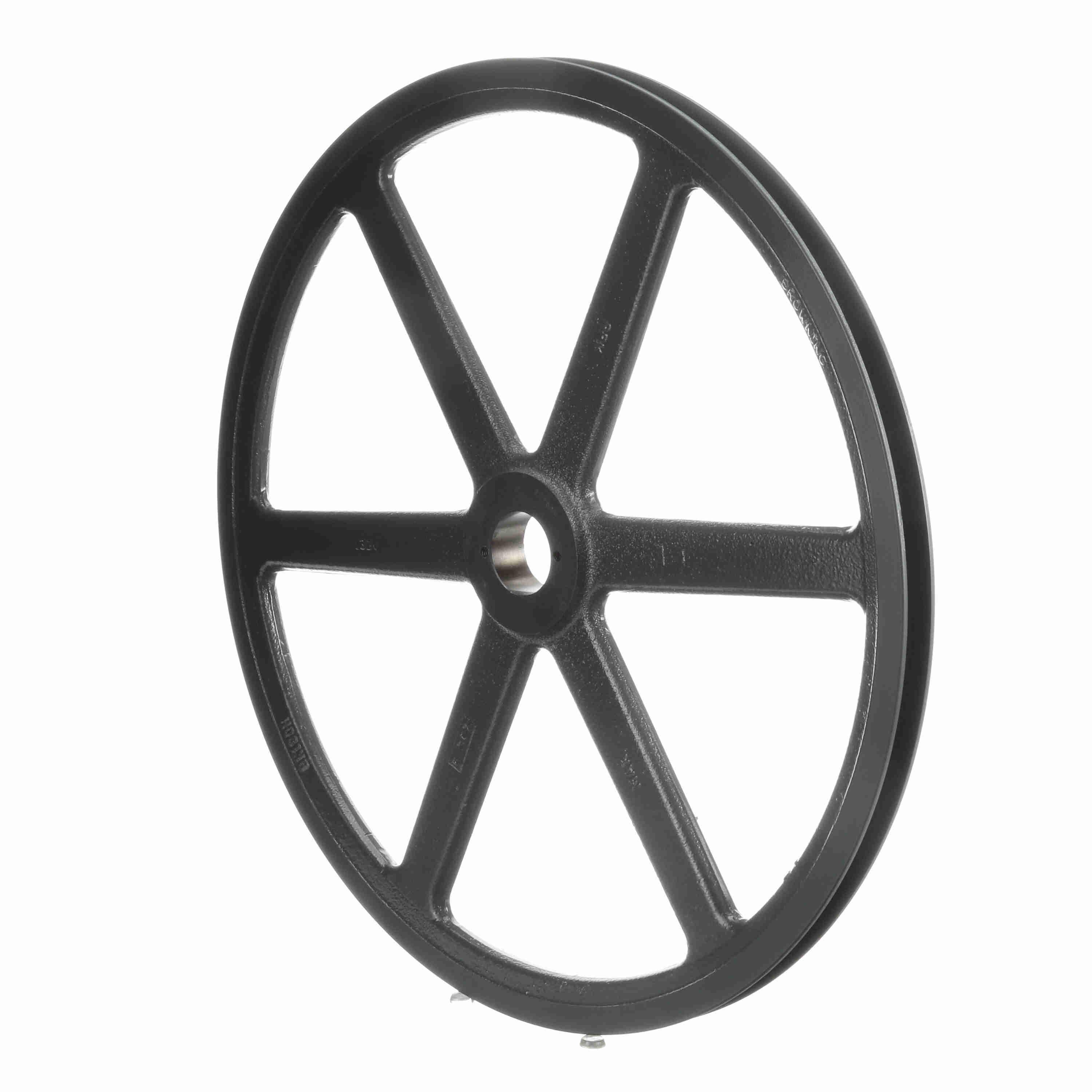

Browning® 1042704 BROBK190H

Browning® quality FHP sheaves are offered in both finished bore and bushed style offerings. Bushing bore ranges from 3/8 in to 1-1/2 in. Bushed product is offered in AKH, 2AKH, BKH and 2BKH sheaves. Browning® FHP sheaves are manufactured to the highest quality and balance available. They are also painted with durable grey paint. Parts are shipped individually boxed and labeled.

Browning® FHP Single Groove Sheave, Type 3, Series: BK Series, Bushed Bore, 1/2 to 1-1/2 in Bore, 18-3/4 in OD, 18.2 in (A)/18.7 in (3L) Pitch Diameter, 7/8 in Face Width, 1/2 in Hub Projection, H Bushing, 1-9/16 in Overall Length, For Use With: GripBelt® 4L/A and 5L Cross Section V-Belt, Cast Iron

• Combination groove all Browning® BK H sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• 1 and 2 Grooves are available to meet any fractional horsepower requirement
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_2BK90X34_Catalog.pdf
