Browning® 1033281 BRO2BK345/8
  1. pin-int

Browning® 1033281 BRO2BK345/8

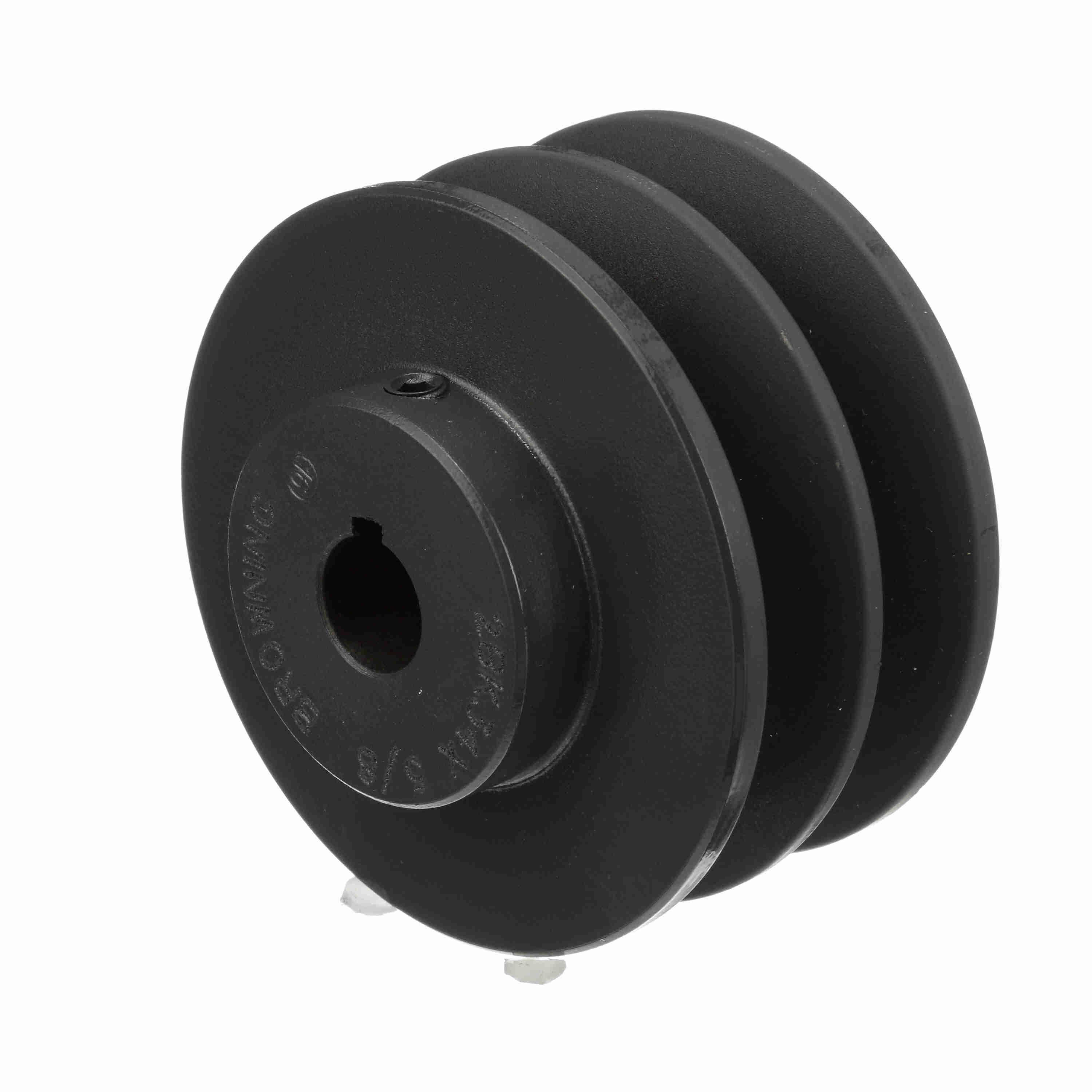

Browning® 1033281 BK Series Type 1 FHP Sheave, 5/8 in Finished Bore, 3.55 in OD, 2 Grooves, 3 in (A)/3-1/2 in (B) Dia Pitch, 1-3/4 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO2BK345/8
  • Alt Part Number: 2BK34X5/8
  • MPN: 1033281
  • UPC: 662289315925
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® FHP Sheave, Type 1, Series: BK Series, Finished Bore, 5/8 in Bore, 3.55 in OD, 3 in (A)/3-1/2 in (B) Pitch Diameter, 2 Grooves, 1-3/4 in Face Width, 15/32 in Hub Projection, 2-7/32 in Overall Length, For Use With: AB Cross Section V-Belts, Cast Iron

Bore Diameter      :      5/8 in
Bore Type      :      Finished
Face Width      :      1-3/4 in
Hub Projection      :      15/32 in
Material      :      Cast Iron
Number of Grooves      :      2
Outside Diameter      :      3.55 in
Overall Length      :      2-7/32 in
Pitch Diameter      :      3 in (A)/3-1/2 in (B)
Series      :      BK Series
Suitable For Use With      :      AB Cross Section V-Belts
Type      :      Type 1
  • Bushed products provide more flexibility of inventory, by just changing out the bore size of the bushing
  • Sheaves are balanced and accurately machined to minimize vibration
  • Largest selection of products of any sheave manufacturer assurance to have the best product for specific application and most economical drive design
  • Paint finish that protects product from rushing in high moisture environments
  • Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
  • Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
  • Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_2BK40HCLEARPK_Catalog.pdf
