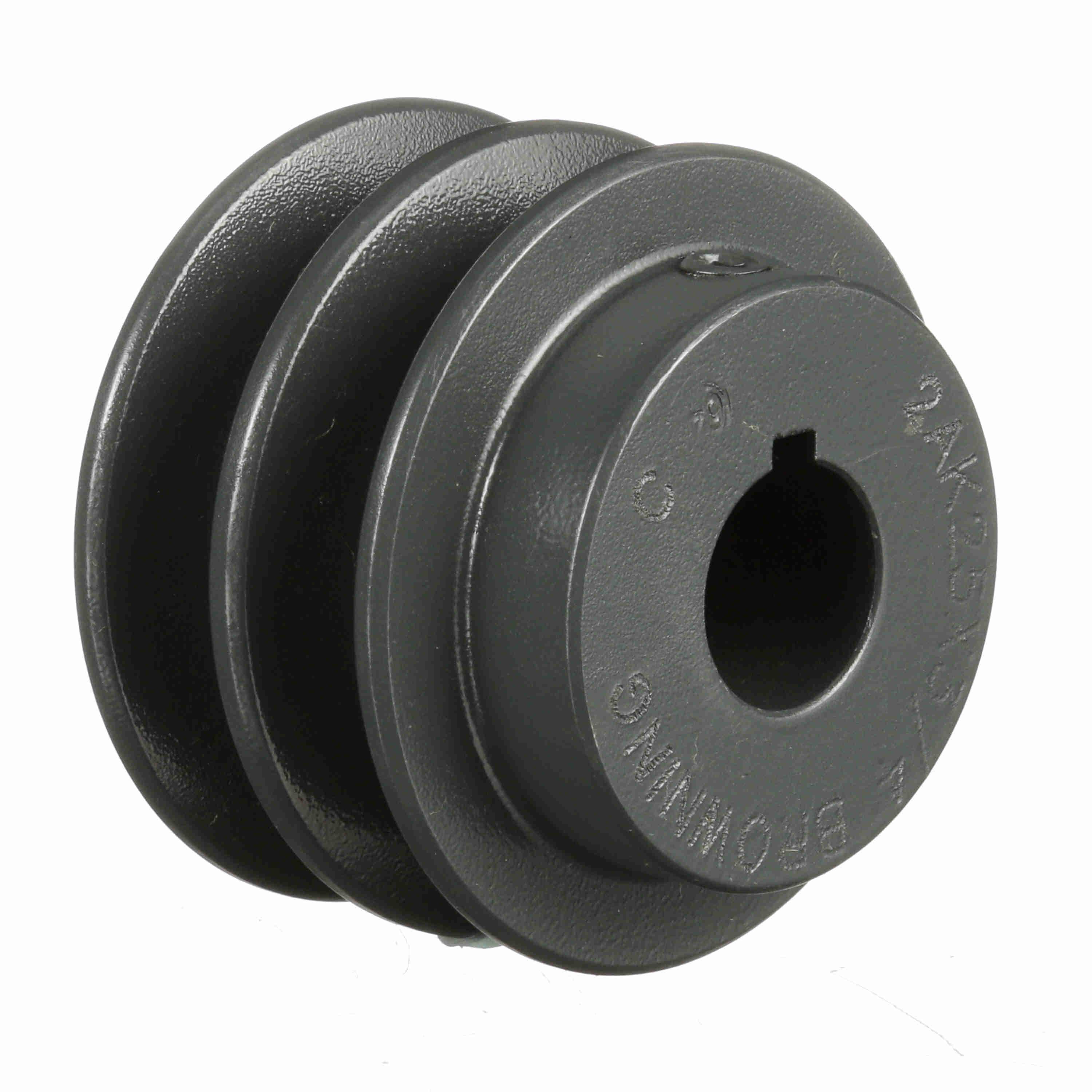

Browning® 1031863 BRO2AK263/4

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® FHP Sheave, Type 1, Series: AK Series, Finished Bore, 3/4 in Bore Dia, 2.65 in Outside Dia, 2.6 in (A)/2.06 in (3L), 2 Grooves, 1-3/8 in Face Width, 15/32 in Hub Projection, 1-27/32 in Overall Length, For Use With: A and 3L Cross Section Belts, Cast Iron

• 1 and 2 Grooves are available to meet any fractional horsepower requirement
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Wrapped construction - Browning offers a full line of wrapped FHP Belts which provides smooth quiet operation
• Wrapped FHP Belts are more tolerant to slipping and misalignment than Raw Edge Belts

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_2BK40HCLEARPK_Catalog.pdf
