Browning® 1031657 BRO2AK205/8
  1. pin-int

Browning® 1031657 BRO2AK205/8

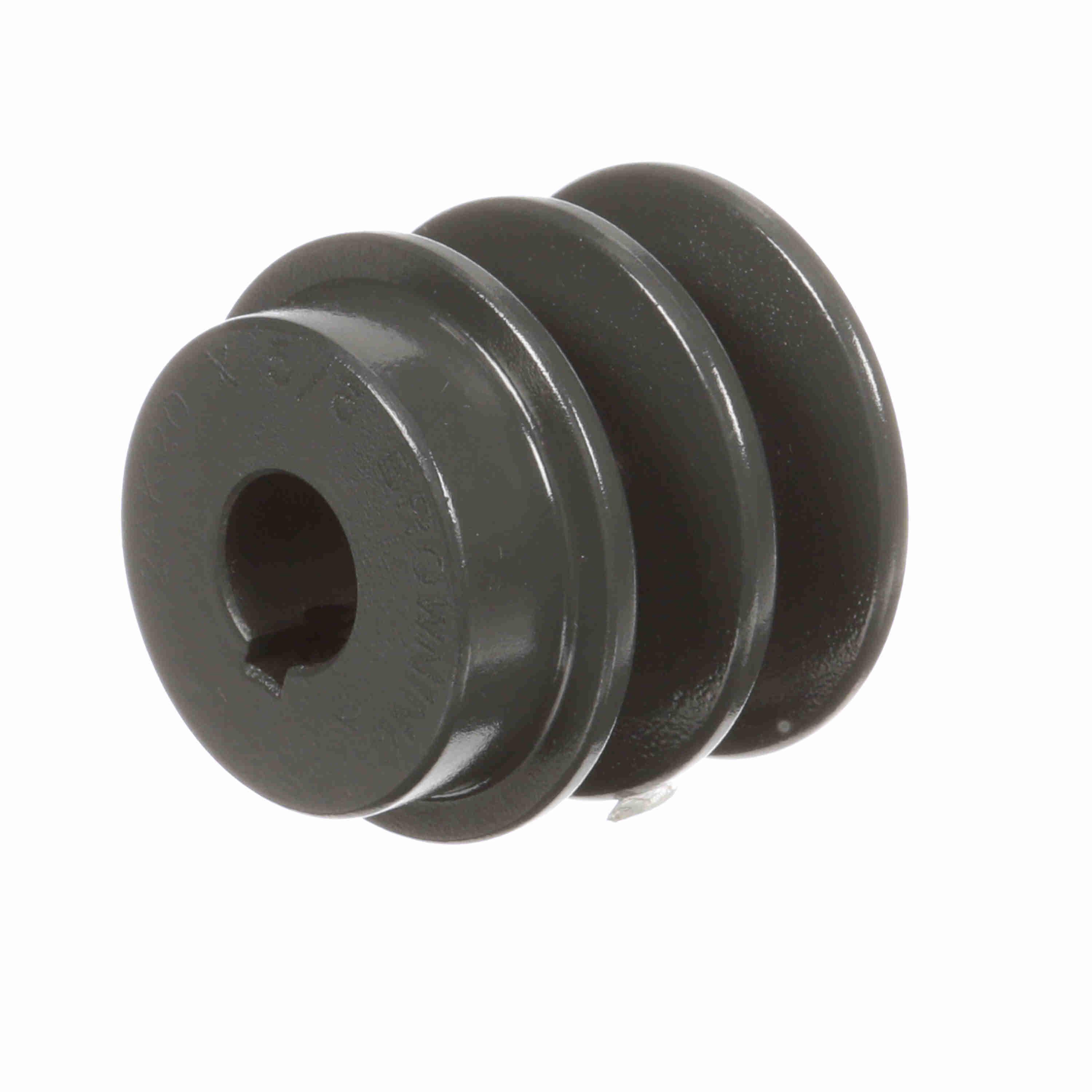

Browning® 1031657 AK Series Type 1 FHP Sheave With 3/16 x 3/32 in Keyway, 5/8 in Finished Bore, 2 in OD, 2 Grooves, 2 in (A)/1.46 in (3L) Dia Pitch, 1-3/8 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO2AK205/8
  • Alt Part Number: 2AK20X5/8
  • MPN: 1031657
  • UPC: 662289179602
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® FHP Sheave, Type 1, Series: AK Series, Finished Bore, 5/8 in Bore Dia, 2 in Outside Dia, 2 in (A)/1.46 in (3L), 2 Grooves, 1-3/8 in Face Width, 15/32 in Hub Projection, 1-27/32 in Overall Length, For Use With: A and 3L Cross Section Belts, Cast Iron

Bore Diameter      :      5/8 in
Bore Type      :      Finished
Face Width      :      1-3/8 in
Hub Projection      :      15/32 in
Material      :      Cast Iron
Number of Grooves      :      2
Outside Diameter      :      2 in
Overall Length      :      1-27/32 in
Pitch Diameter      :      2 in (A)/1.46 in (3L)
Series      :      AK Series
Suitable For Use With      :      A and 3L Cross Section Belts
Type      :      Type 1
  • Combination groove all Browning® BK sheaves permit the running of A, 4L, B and 5L belts to be run in them
  • Bushed products provide more flexibility of inventory, by just changing out the bore size of the bushing
  • Largest selection of products of any sheave manufacturer assurance to have the best product for specific application and most economical drive design
  • Paint finish that protects product from rushing in high moisture environments
  • Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
  • Cooler running means longer life
  • Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
  • Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
  • High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
  • Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
  • Assures less vibration and Smoother , quieter performance
  • Notched belts provide higher horsepower than wrapped belts
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_2BK40HCLEARPK_Catalog.pdf
