Browning® 1028125 BROBK341 1/8
  1. pin-int

Browning® 1028125 BROBK341 1/8

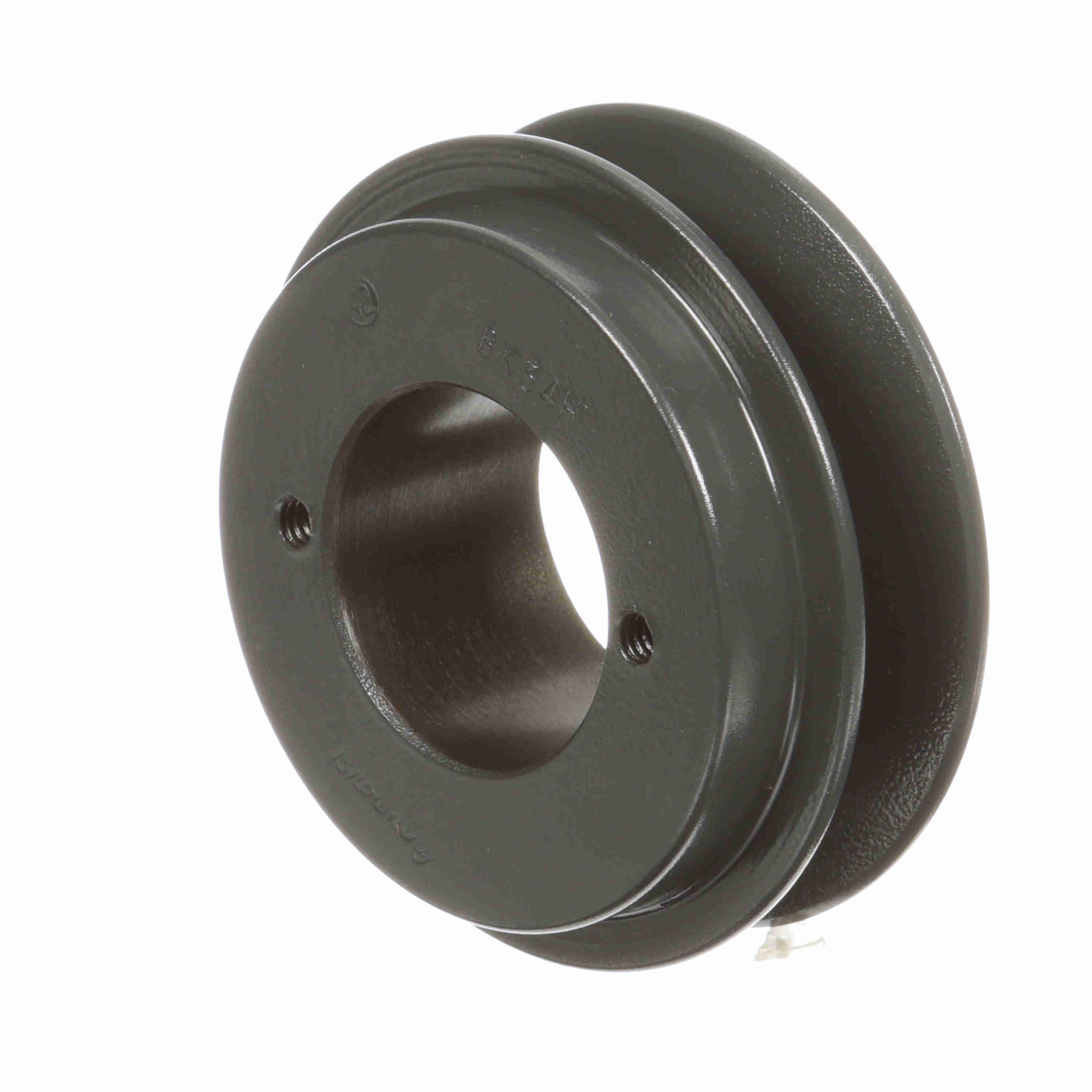

Browning® Classical Gripbelt® 1028125 BK Series Type 2 Single Groove Sheave, Finished Bore, 1-1/8 in Dia Bore, 3.55 in OD, 3 in (A)/3-1/2 in (B) Dia Pitch, 7/8 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROBK341 1/8
  • Alt Part Number: BK34X 1 1/8
  • MPN: 1028125
  • UPC: 662289315284
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 2, Series: BK Series, Finished Bore, 1-1/8 in Bore Dia, 3.55 in Outside Dia, 3 in (A)/3-1/2 in (B), 7/8 in Face Width, 13/32 in Hub Projection, 1-9/32 in Overall Length, For Use With: 4L/A and 5L/B Cross Section Belt, Cast Iron

Bore Diameter      :      1-1/8 in
Bore Type      :      Finished
Face Width      :      7/8 in
Hub Projection      :      13/32 in
Material      :      Cast Iron
Outside Diameter      :      3.55 in
Overall Length      :      1-9/32 in
Pitch Diameter      :      3 in (A)/3-1/2 in (B)
Series      :      BK Series
Suitable For Use With      :      4L/A and 5L/B Cross Section Belt
Type      :      Type 2
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
