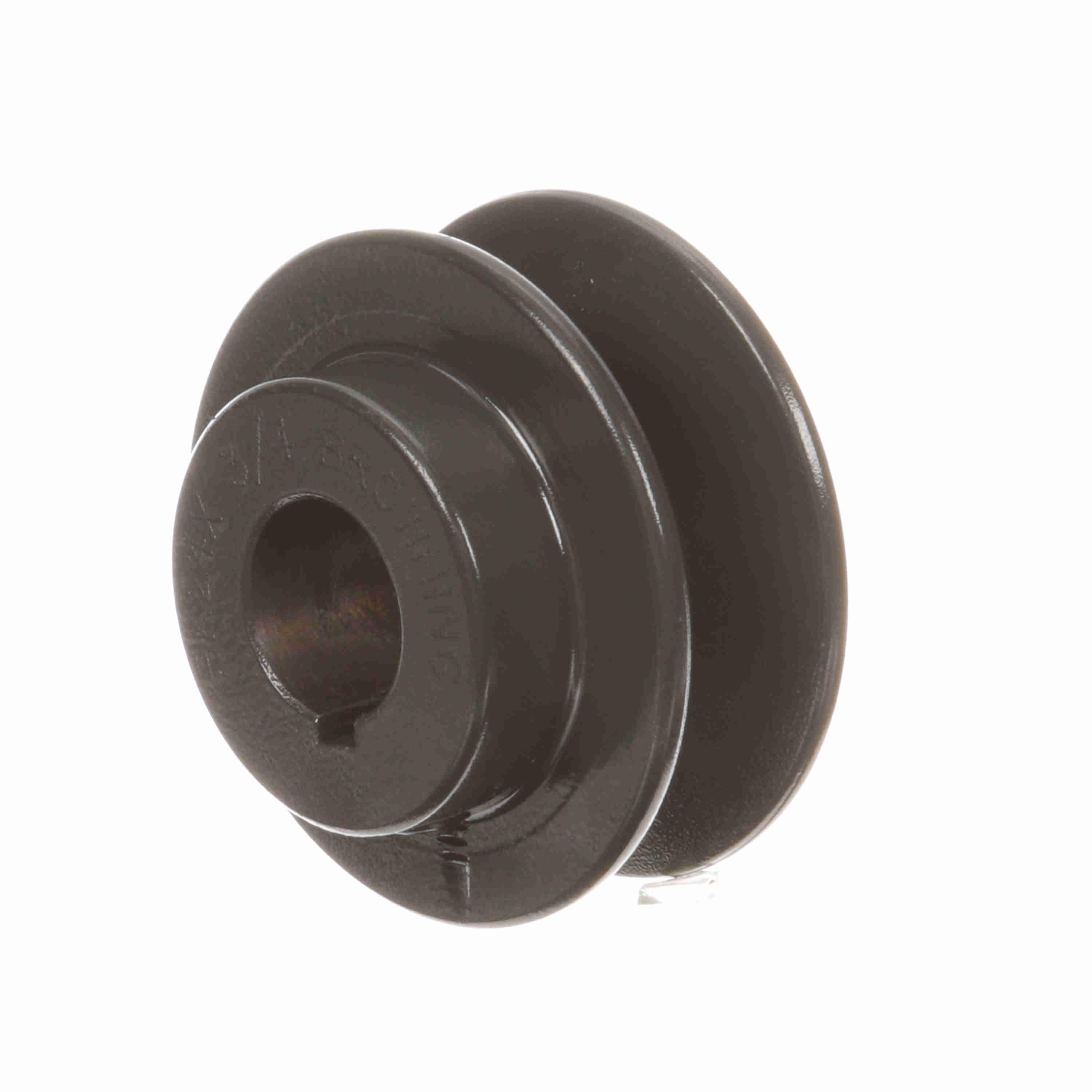

Browning® 1027812 BROBK243/4
Browning® Classical Gripbelt® 1027812 BK Series Type 1 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 2.4 in OD, 1.9 in (A)/2.4 in (B) Dia Pitch, 13/16 in W Face
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROBK243/4
- Alt Part Number: BK24X3/4
- MPN: 1027812
- UPC: 662289177509
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® Classical Gripbelt® Single Groove Sheave, Type 1, Series: BK Series, Finished Bore, 3/4 in Bore Dia, 2.4 in Outside Dia, 1.9 in (A)/2.4 in (B), 13/16 in Face Width, 13/32 in Hub Projection, 1-7/32 in Overall Length, For Use With: 4L/A and 5L/B Cross Section Belt, Cast Iron
| Bore Diameter | : | 3/4 in |
| Bore Type | : | Finished |
| Face Width | : | 13/16 in |
| Hub Projection | : | 13/32 in |
| Material | : | Cast Iron |
| Outside Diameter | : | 2.4 in |
| Overall Length | : | 1-7/32 in |
| Pitch Diameter | : | 1.9 in (A)/2.4 in (B) |
| Series | : | BK Series |
| Suitable For Use With | : | 4L/A and 5L/B Cross Section Belt |
| Type | : | Type 1 |
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
