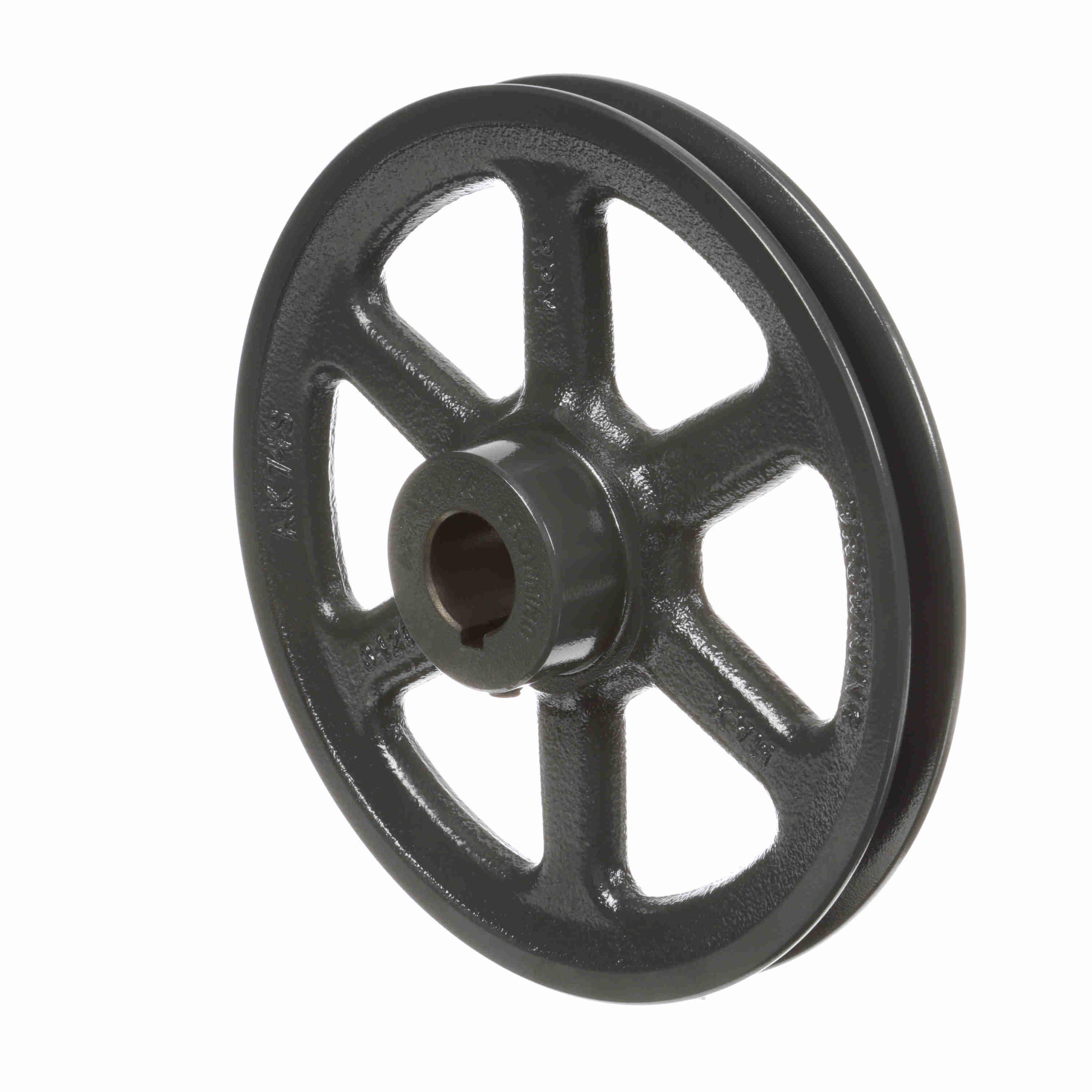

Browning® 1027143 BROAK7415/16
Browning® Classical Gripbelt® 1027143 AK Series Type 3 Single Groove Sheave, Finished Bore, 15/16 in Dia Bore, 7-1/4 in OD, 7.2 in (A)/6.66 in (3L) Dia Pitch, 3/4 in W Face
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROAK7415/16
- Alt Part Number: AK74X15/16
- MPN: 1027143
- UPC: 662289315147
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® Classical Gripbelt® Single Groove Sheave, Type 3, Series: AK Series, Finished Bore, 15/16 in Bore Dia, 7-1/4 in Outside Dia, 7.2 in (A)/6.66 in (3L), 3/4 in Face Width, 25/32 in Hub Projection, 1-17/32 in Overall Length, For Use With: 4L/A and 3L Cross Section Belt, Cast Iron
| Bore Diameter | : | 15/16 in |
| Bore Type | : | Finished |
| Face Width | : | 3/4 in |
| Hub Projection | : | 25/32 in |
| Material | : | Cast Iron |
| Outside Diameter | : | 7-1/4 in |
| Overall Length | : | 1-17/32 in |
| Pitch Diameter | : | 7.2 in (A)/6.66 in (3L) |
| Series | : | AK Series |
| Suitable For Use With | : | 4L/A and 3L Cross Section Belt |
| Type | : | Type 3 |
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
