Browning® 1026335 BROAK347/8
  1. pin-int

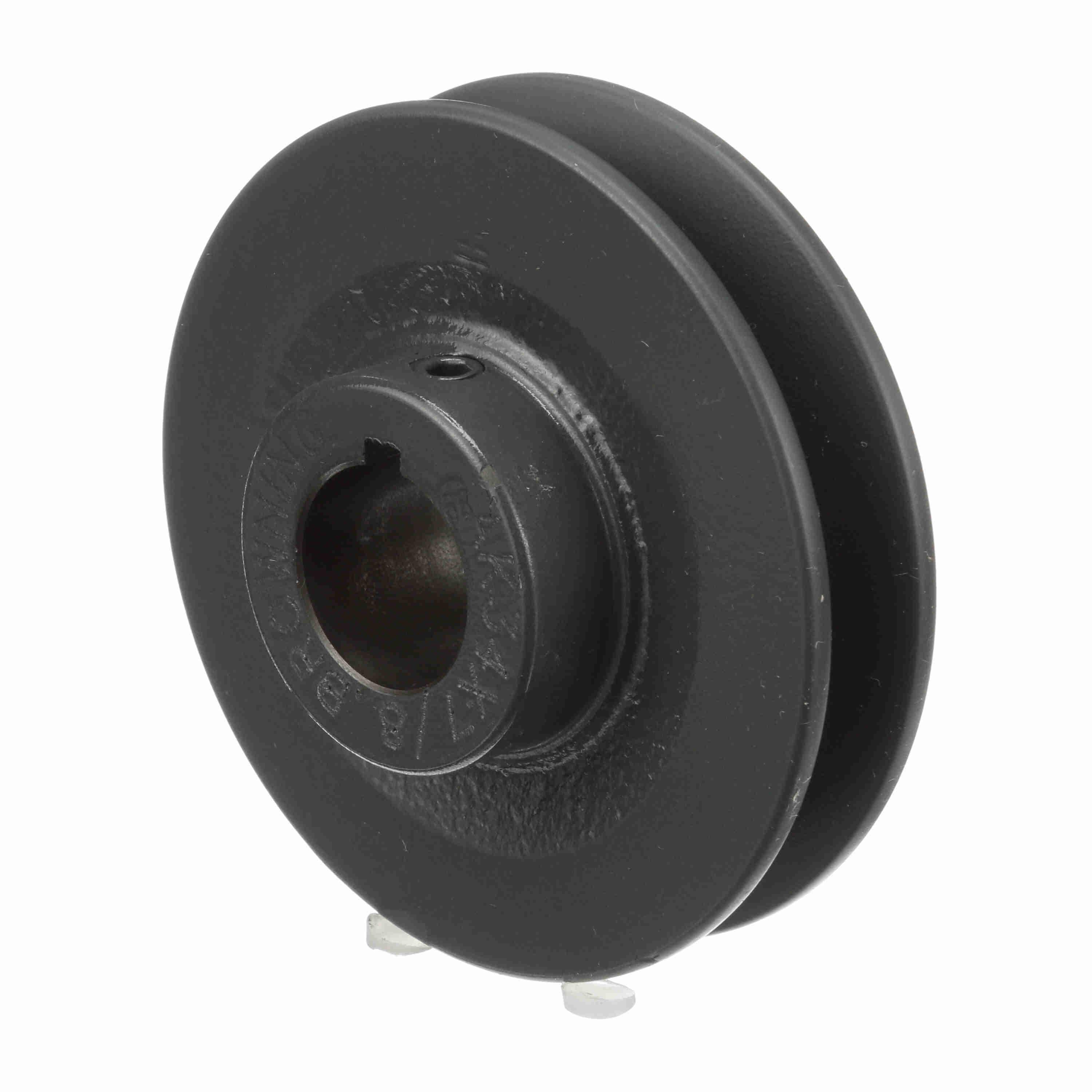

Browning® 1026335 BROAK347/8

Browning® Classical Gripbelt® 1026335 AK Series Type 2 Single Groove Sheave, Finished Bore, 7/8 in Dia Bore, 3.45 in OD, 3.4 in (A)/2.86 in (3L) Dia Pitch, 21/32 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROAK347/8
  • Alt Part Number: AK34X7/8
  • MPN: 1026335
  • UPC: 662289186341
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 2, Series: AK Series, Finished Bore, 7/8 in Bore Dia, 3.45 in Outside Dia, 3.4 in (A)/2.86 in (3L), 21/32 in Face Width, 7/16 in Hub Projection, 1-3/32 in Overall Length, For Use With: 4L/A and 3L Cross Section Belt, Cast Iron

Bore Diameter      :      7/8 in
Bore Type      :      Finished
Face Width      :      21/32 in
Hub Projection      :      7/16 in
Material      :      Cast Iron
Outside Diameter      :      3.45 in
Overall Length      :      1-3/32 in
Pitch Diameter      :      3.4 in (A)/2.86 in (3L)
Series      :      AK Series
Suitable For Use With      :      4L/A and 3L Cross Section Belt
Type      :      Type 2
  • External rib design provides cooling for longer belt life
  • Increases wall thickness by 30%
  • Increased hub diameter by 20%
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
