Browning® 1025949 BROAK231/2
  1. pin-int

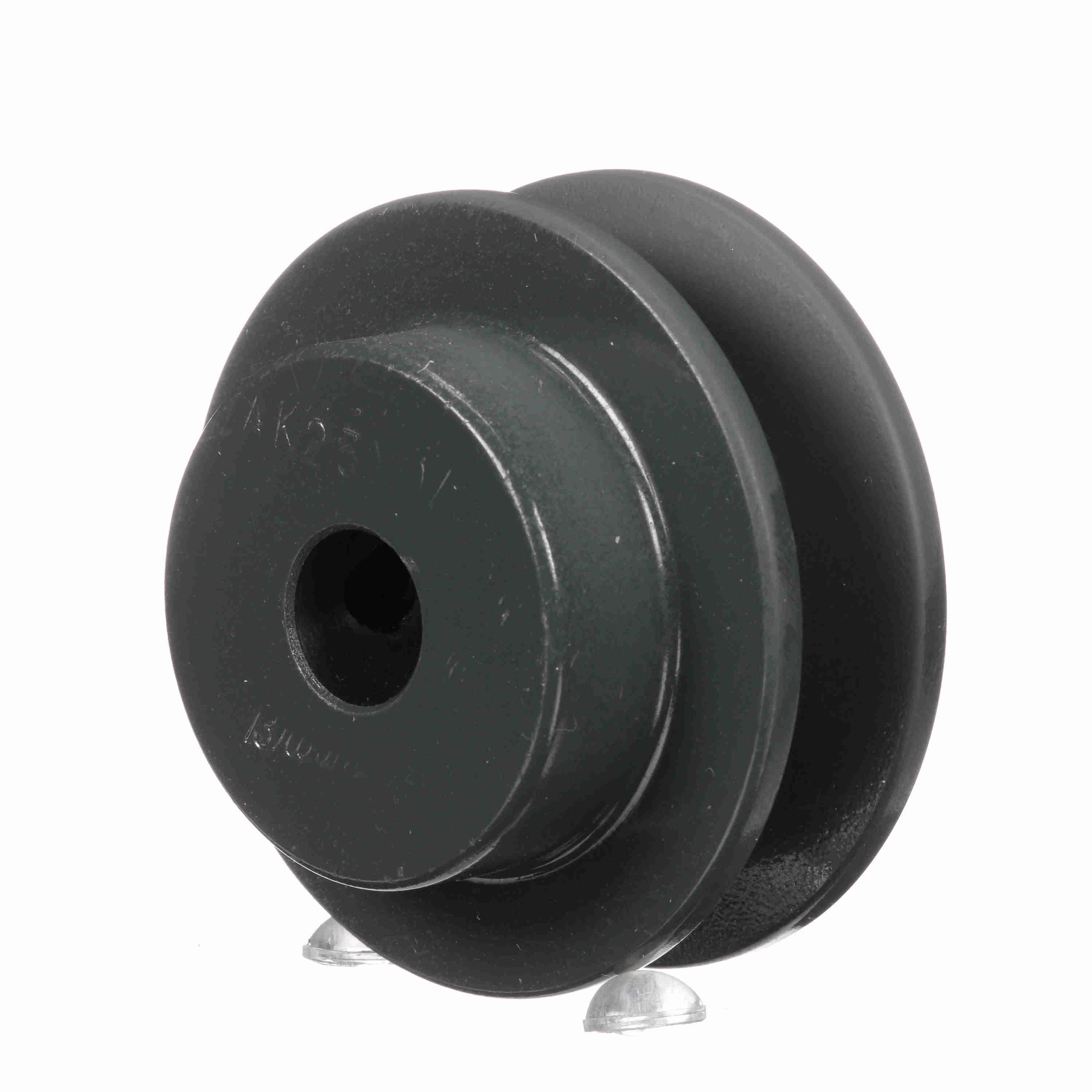

Browning® 1025949 BROAK231/2

Browning® Classical Gripbelt® 1025949 AK Series Type 1 Single Groove Sheave, Finished Bore, 1/2 in Dia Bore, 2.3 in OD, 2.3 in (A)/1.76 in (3L) Dia Pitch, 21/32 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROAK231/2
  • Alt Part Number: AK23X1/2
  • MPN: 1025949
  • UPC: 662289135998
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 1, Series: AK Series, Finished Bore, 1/2 in Bore Dia, 2.3 in Outside Dia, 2.3 in (A)/1.76 in (3L), 21/32 in Face Width, 7/16 in Hub Projection, 1-3/32 in Overall Length, For Use With: 4L/A and 3L Cross Section Belt, Cast Iron

Bore Diameter      :      1/2 in
Bore Type      :      Finished
Face Width      :      21/32 in
Hub Projection      :      7/16 in
Material      :      Cast Iron
Outside Diameter      :      2.3 in
Overall Length      :      1-3/32 in
Pitch Diameter      :      2.3 in (A)/1.76 in (3L)
Series      :      AK Series
Suitable For Use With      :      4L/A and 3L Cross Section Belt
Type      :      Type 1
  • External rib design provides cooling for longer belt life
  • Increases wall thickness by 30%
  • Increased hub diameter by 20%
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom, increased operating temperature range of -60F to 250F degrees
  • More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts
  • This enables you to reduce drive cost
  • Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_AK46HCLEARPK_Catalog.pdf
