Browning® 1012749 BRO5C110R

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

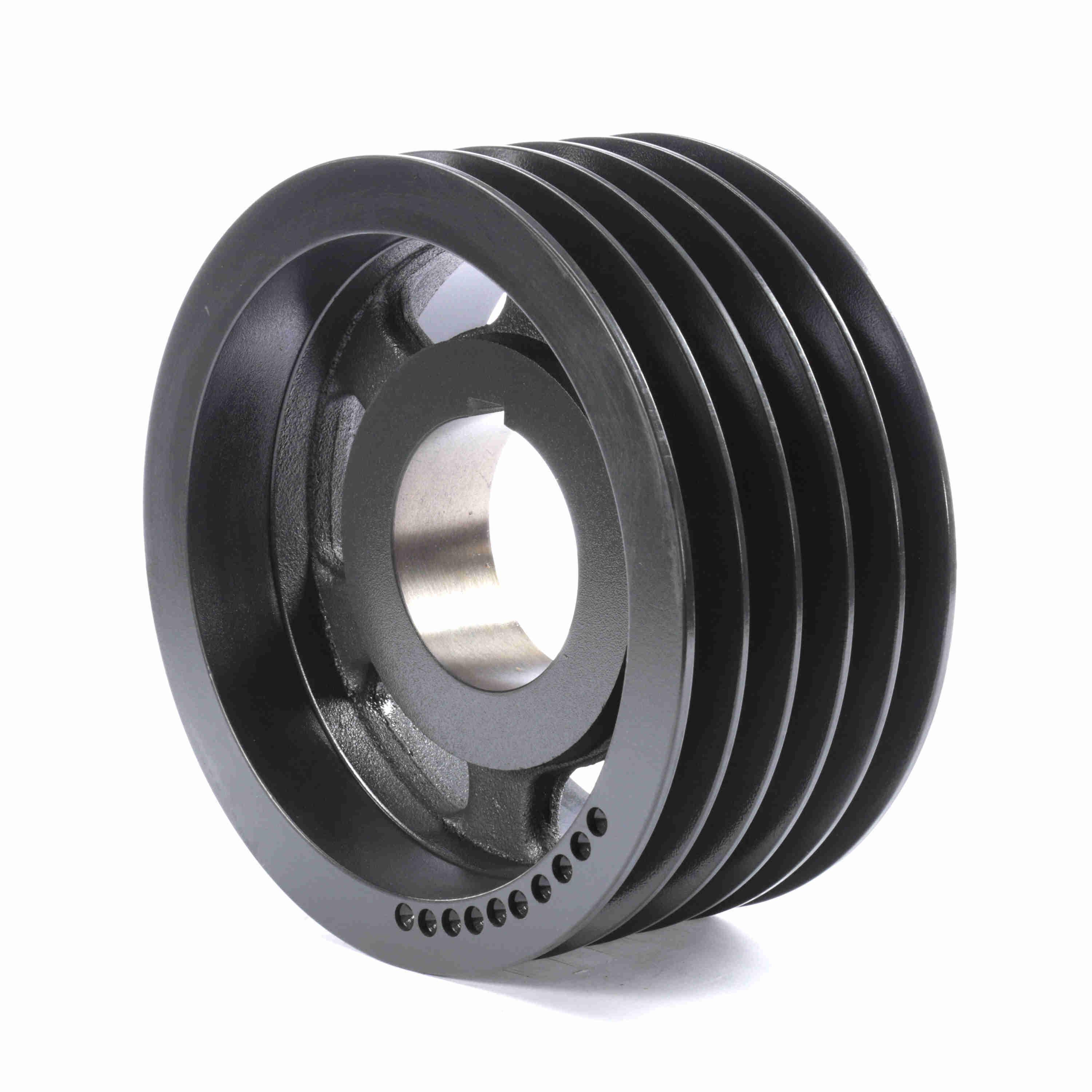

Browning® Multiple Sheave, Type 15 Web, Split Taper Bore, 1.13 to 3.75 in Bore, 11.4 in OD, 11.4 in Pitch Diameter, 5 Grooves, 5-1/4 in Face Width, R1 Bushing, 5-1/4 in Overall Length, For Use With: GripBelt® C Cross Section V-Belt, Cast Iron

• Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
