Browning® 1010412 BRO4B54Q

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

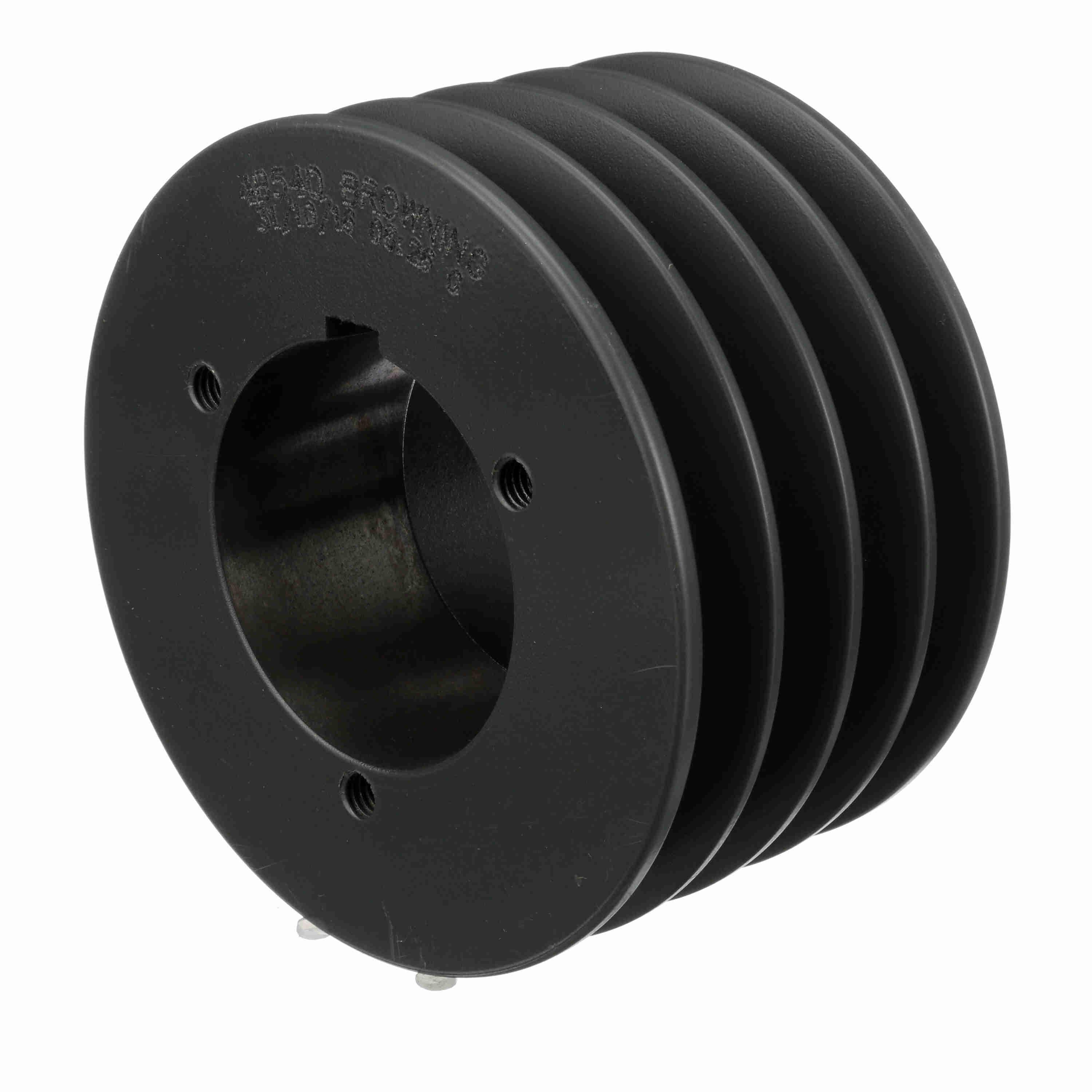

Browning® Multiple Sheave, Type 5, Series: B Series, Split Taper Bore, 3/4 to 2-11/16 in Bore Dia, 5-3/4 in Outside Dia, 5.2 in (A)/5.7 in (B), 4 Grooves, 3-1/4 in Face Width, 27/32 in Hub Projection, Q1 Bushing, 4-21/64 in Overall Length, For Use With: Gripbelt® A and B Cross Section Belts, Cast Iron

• Molded Teeth - Shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
• High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
• Compression Section - Bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
