Browning® 1010354 BRO4TC240

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

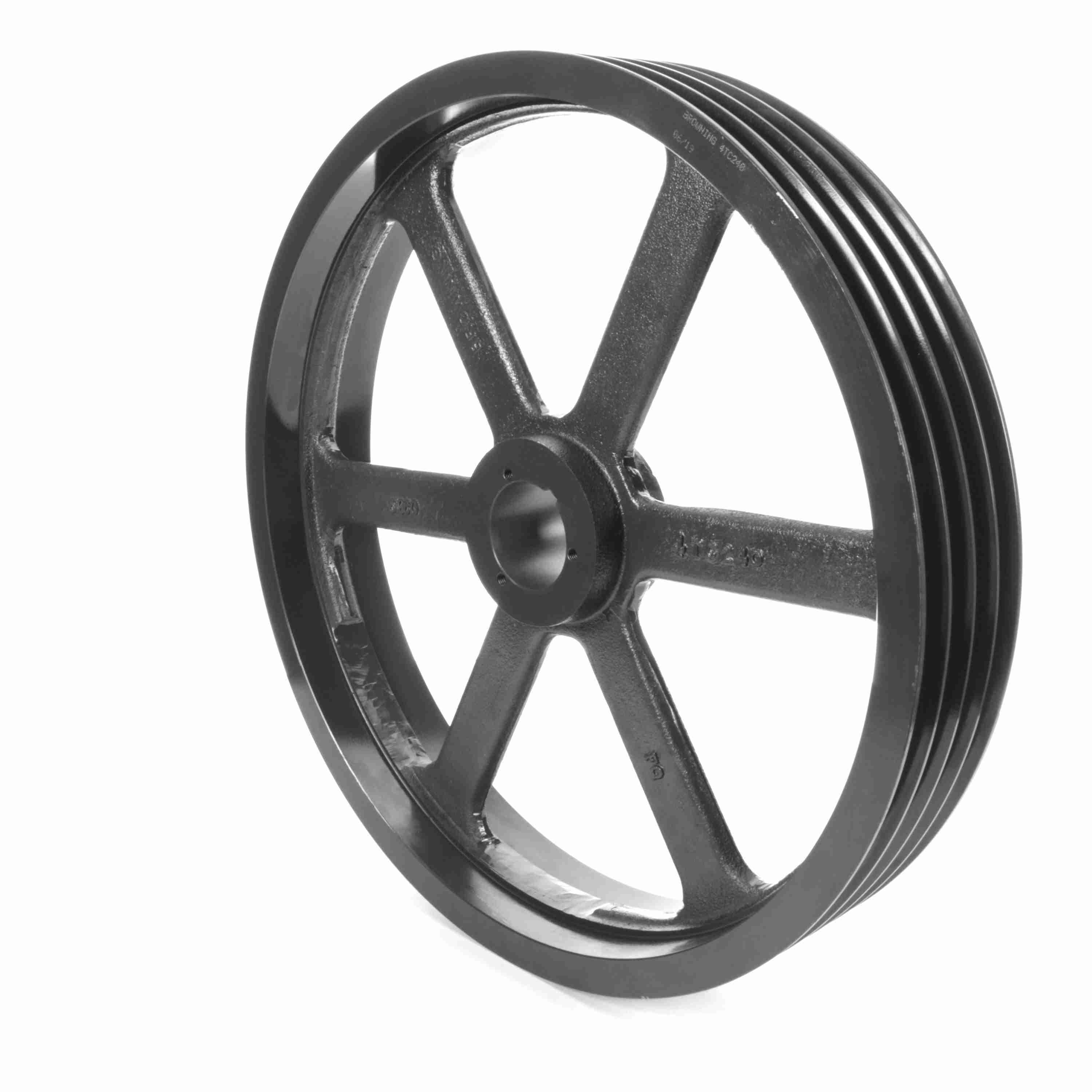

Browning® Multiple Sheave, Type 13 Arm, Series: TC Series, Split Taper Bore, 1 to 2-5/8 in Bore, 24.4 in OD, 24.4 in Pitch Diameter, 4 Grooves, 4-1/4 in Face Width, Q2 Bushing, 4-17/32 in Overall Length, For Use With: GripBelt® C Cross Section V-Belt, Cast Iron

• Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
