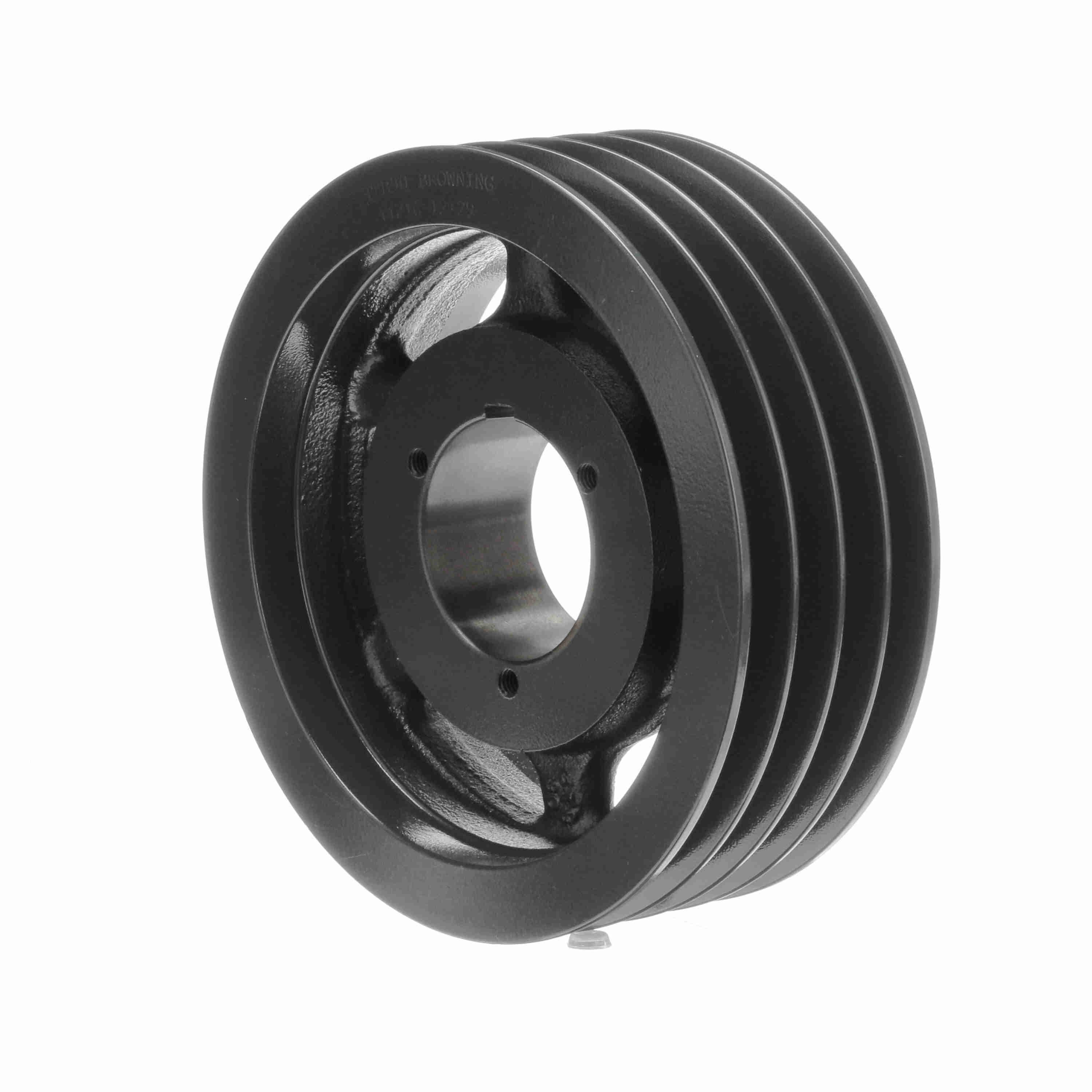

Browning® 1002534 BRO4TB90

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Arm Type 13, Series: TB Series, Split Taper Bore, 3/4 to 2-11/16 in Bore Dia, 9.35 in Outside Dia, 8.8 in (A)/9.3 in (B), 4 Grooves, 3-1/4 in Face Width, 3/32 in Hub Projection, Q1 Bushing, 3-37/64 in Overall Length, For Use With: Gripbelt® A and B Cross Section Belts, Cast Iron

• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
