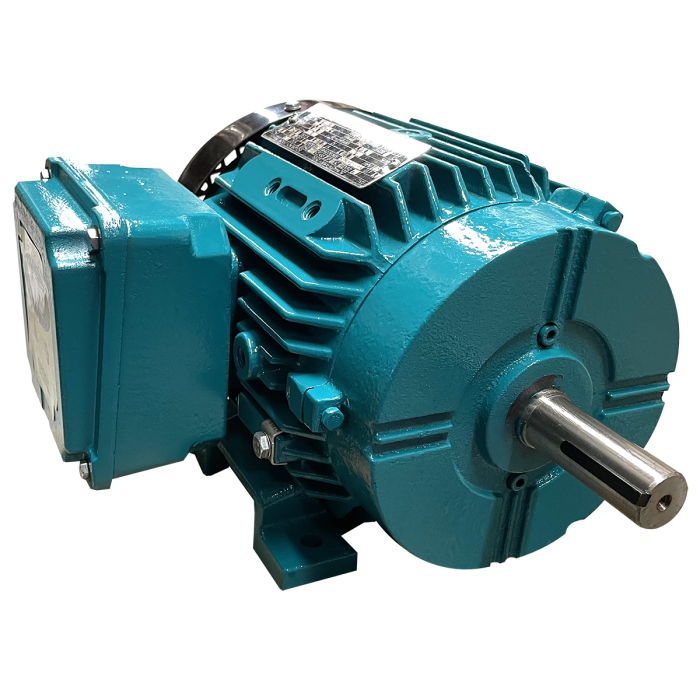

Brook Crompton BC2N7.5V4 BCIBC2N7.5V4
  1. pin-int

Brook Crompton BC2N7.5V4 BCIBC2N7.5V4

  • Manufacturer: Brook Crompton
  • Brand Name: Brook Crompton
  • Part Number: BCIBC2N7.5V4
  • MPN: BC2N7.5V4
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability
Enclosure Type      :      TEFC
Frame      :      213T
Frequency Rating      :      60 Hz
Horsepower      :      7.5 hp
Insulation Class      :      F
Mounting Type      :      Foot
Phase      :      3
Service Factor      :      1.25
Shaft Size      :      1.375 in
Speed      :      3515 rpm
Torque Rating      :      11.20 ft-lb
Voltage Rating      :      230/460 VAC
  • Type: General Purpose
  • Horsepower (hp): 7.5
  • KW: 5.5
  • Speed (rpm): 3515
  • Voltage Rating (VAC): 230/460
  • Frequency Rating (Hz): 60
  • Enclosure Type: TEFC
  • Frame: 213T
  • Mounting Type: Foot
  • NEMA Design: B
  • Nom Efficiency: 89.5
  • Insulation Class: F
  • KVA Code: G
  • Phase: 3
  • Service Factor: 1.25
  • FLA: 8.57
  • Frame Material: Cast Iron
  • Torque Rating(ft-lb): 11.20
  • Grease: Lithium Based
  • Duty: S1
  • Dual Mounting Holes?: Yes
  • DE Bearing: 6208ZZC3
  • NDE Bearing: 6208ZZC3
  • Ambient Temp: -20 to 40
  • 208V Amps: 18.9528846153846
  • Usable 208V: Yes
  • Rotation: Reversible
  • Number of Leads: 9
  • Orientation: Horizontal or Vertical
  • Poles: 2
  • Power Factor: 0.9
  • CSA Certified: Yes
  • FL Temp Rise: 80
  • Temp Code: T3
  • Temp Code SW: T3
  • Temp Code VFD: T3
  • VFD VT Ratio: 10:1
  • VFD CT Ratio: 5:1
  • VFD VT Hz: 6-60
  • VFD CT Hz: 12-60
  • XP Rating: Class 1, Div 2, Groups A,B,C,D Zone 2, Groups IIA & IIB T3
  • Conduit Box Orientation: F1
  • Protection (IP): 55
  • C-Dimension (inch): 19.85
  • Shaft Length (inch): 3.375
  • Shaft Size (inches): 1.375
  • Country Of Origin: China
