Brewer Universal Drive Tensioner XM BREXM
  1. pin-int

Brewer Universal Drive Tensioner XM BREXM

Brewer Universal Drive Tensioner XM X Series Floating Mount Drive Tensioner, For Use With Model SO2, SO3 and SO4 1 in Dia Idler Shafts, 3/8 in Bolt, Cast Iron

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BREXM
  • MPN: XM
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

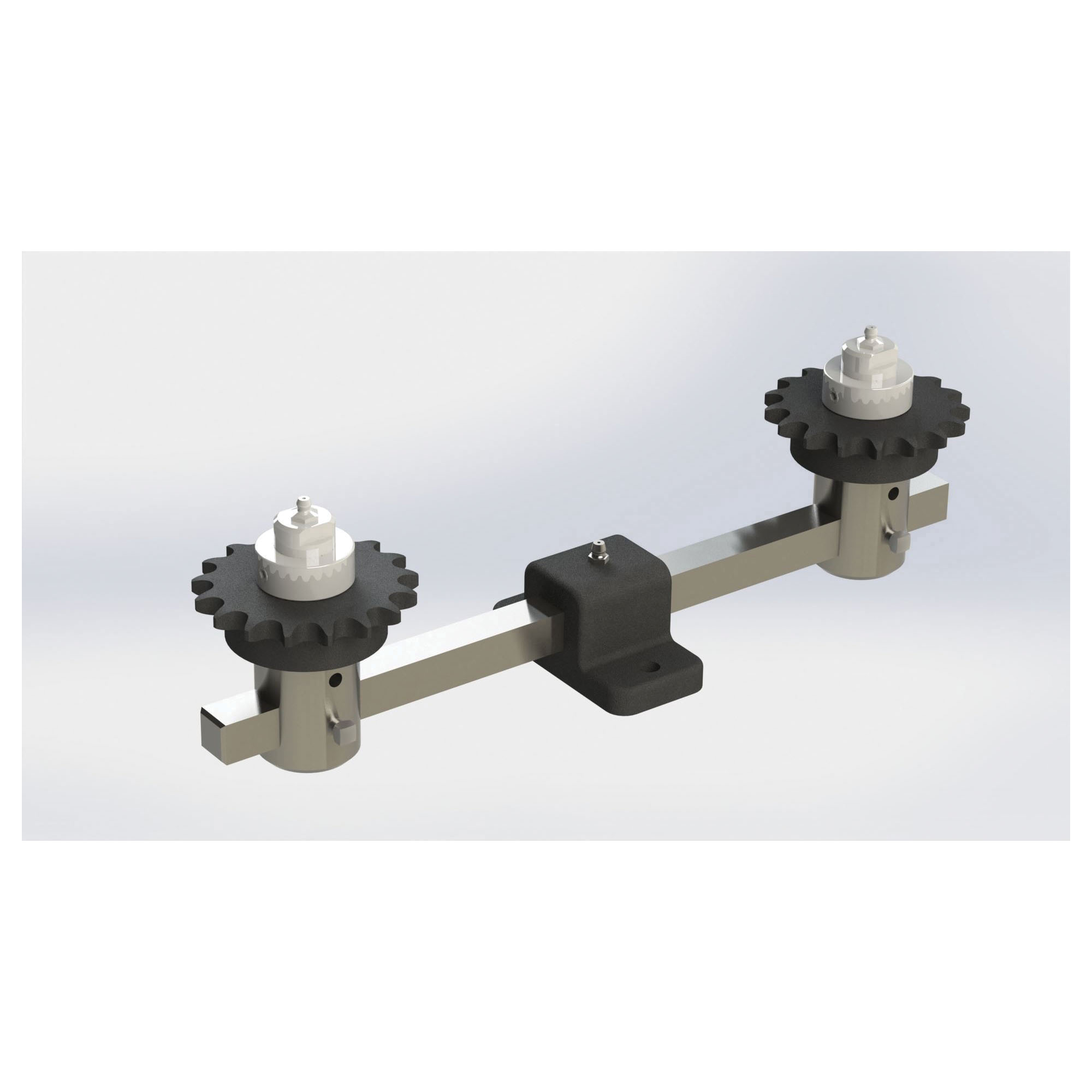

The "X" series Universal Drive Tensioners utilize a floating mount principle to permit a straight line pull between driver and driven pulleys, regardless of drive direction, yet maintaining the initial tension preset for the drive. Floating action allows the tensioner to automatically accommodate the change in geometry when driving direction is reversed.

Brewer Universal Drive Tensioner Drive Tensioner, Floating Mount, Series: X Series, For Use With: Model SO2, SO3 and SO4 1 in Dia Idler Shafts, 3/8 in Bolt, Cast Iron, 15-3/4 in L x 4 in W x 2-1/4 in H

Bolt Size      :      3/8 in

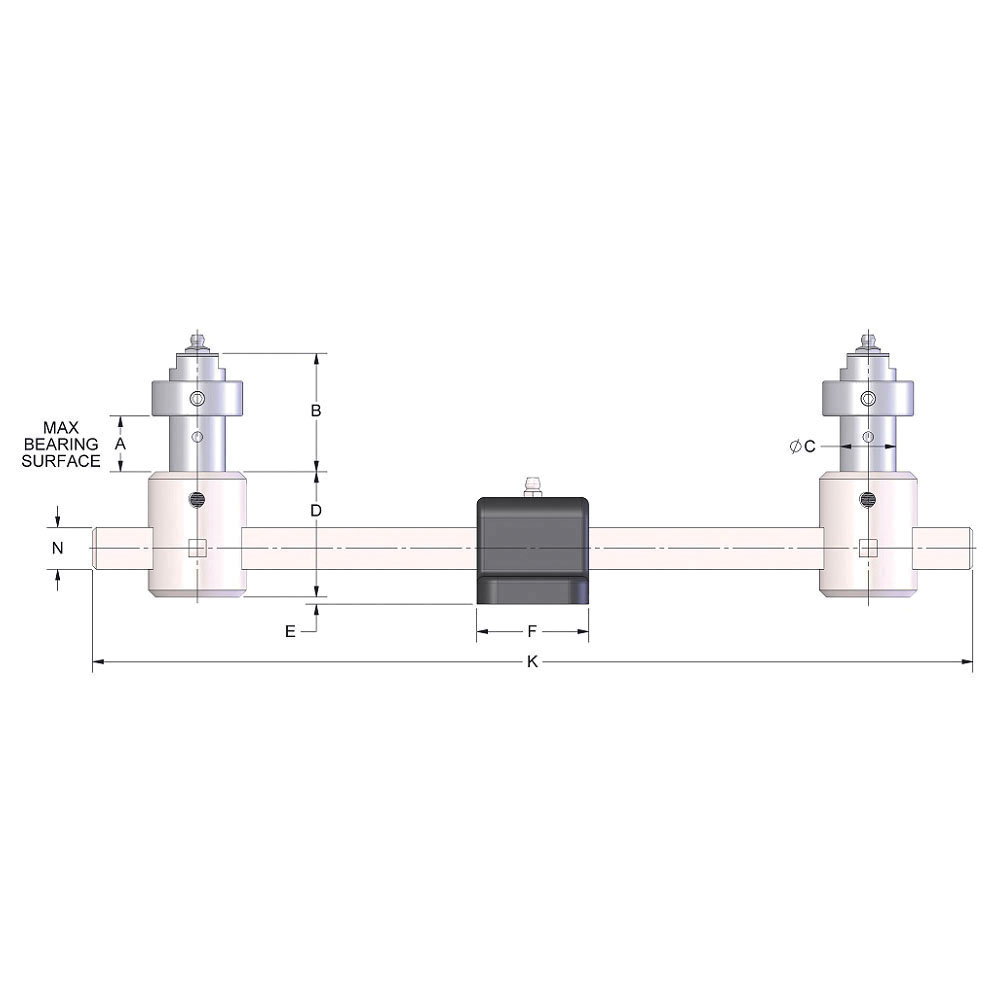

Dimensions      :      15-3/4 in L x 4 in W x 2-1/4 in H
Material      :      Cast Iron
Series      :      X Series
Suitable For Use With      :      Model SO2, SO3 and SO4 1 in Dia Idler Shafts
Type      :      Floating Mount
  • Maintains preset tensioner for reversible drives
  • Automatically adjusts when drive direction is reversed
