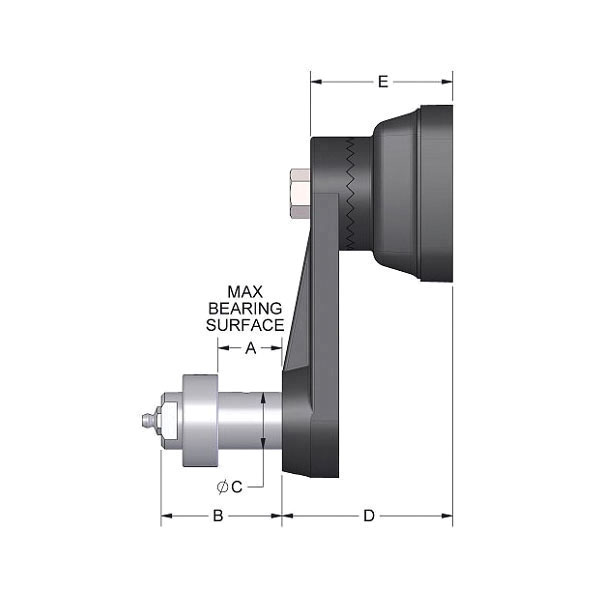

Brewer Universal Drive Tensioner TM44 BRETM44

The Universal Drive Tensioner Spring loaded T-series incorporates an adjusting slot for control tensioning and a serrated arm, permitting tensioning at any point on a 360 deg arc. The "T" Series tensioner has a spring for a constant tension which is more practical for pulsating loads. The base is more practical for pulsating loads. The base is made of high-grade semi-steel casting, incorporating a needle bearing and ball bearing to eliminate binding on over-hung loads. A precision cut gear and rack combined with a spring enables the arm to work 90 deg in either direction. The standard model will support a 22 lb load at the idler shaft center. If more capacity is desired, a heavier spring is available to support up to 44 lb which pivots 45 deg in either direction.

Brewer Universal Drive Tensioner Drive Tensioner, Spring Loaded Automatic, Series: T Series, For Use With: Model SO2, SO3 and SO4 1 in Dia Idler Shafts, 3/8 in Bolt, Cast Iron, 8-11/16 in L x 3 in W

• Adjusting slot for control tensioning and a serrated arm
• Spring loaded for constant tensioning
• Supports 44 lb load at idler shaft center
• Pivot angle - 45 deg both directions from center
• 7-1/2 in bolt center-to-center
