Brewer Universal Drive Tensioner SO3 BRESO3
  1. pin-int

Brewer Universal Drive Tensioner SO3 BRESO3

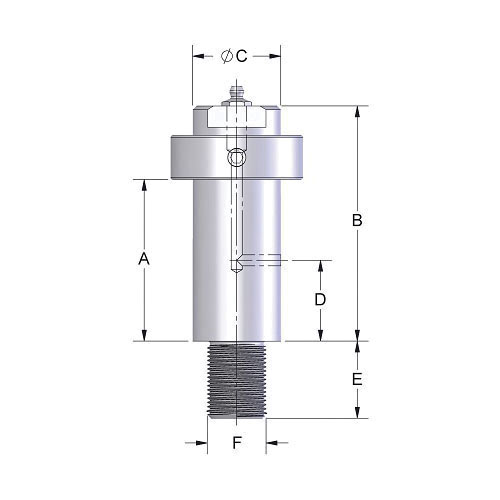

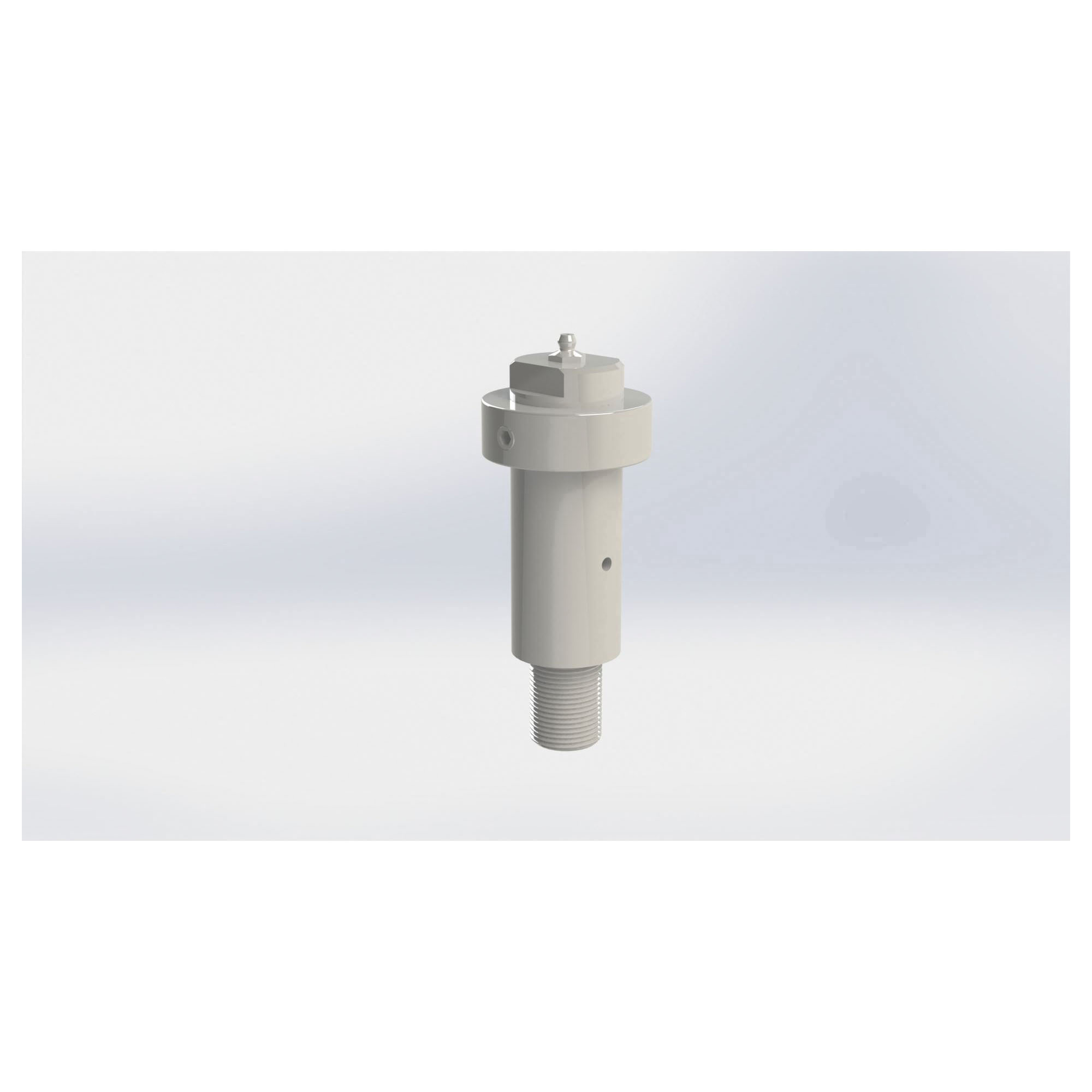

Brewer Universal Drive Tensioner SO3 Idler Shaft, 1 in Dia x 3-1/8 in L Shaft, 4.349 in OAL

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BRESO3
  • MPN: SO3
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Brewer idler shafts are hardened and ground for maximum idler life. To ensure maximum rigidity, they are shouldered and threaded into units and locked with a setscrew.

Brewer Universal Drive Tensioner Idler Shaft, Series: SO Series, 3-1/8 in Shaft Length, 1 in Shaft Diameter, 4.349 in Overall Length, 3/4-16 UNF Thread, 7/8 in Thread Length, For Use With: Model SM S Series Base Mount Drive Tensioners, Model AM A Series Shaft Mount Drive Tensioners, Model HM H Series Screw Adjustment Drive Tensioners, Model LM L Series Slide Adjustment Drive Tensioners, Model RM R Series Angle Mount Drive Tensioners, Model XM X Series Floating Mount Drive Tensioners, Steel

Material      :      Steel
Overall Length      :      4.349 in
Series      :      SO Series
Shaft Diameter      :      1 in
Shaft Length      :      3-1/8 in
Suitable For Use With      :      Model SM S Series Base Mount Drive Tensioners, Model AM A Series Shaft Mount Drive Tensioners, Model HM H Series Screw Adjustment Drive Tensioners, Model LM L Series Slide Adjustment Drive Tensioners, Model RM R Series Angle Mount Drive Tensioners, Model XM X Series Floating Mount Drive Tensioners
Thread Length      :      7/8 in
Thread Size      :      3/4-16 UNF
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_SD_B_Catalog.pdf
