Brewer Universal Drive Tensioner NO3 BRENO3
  1. pin-int

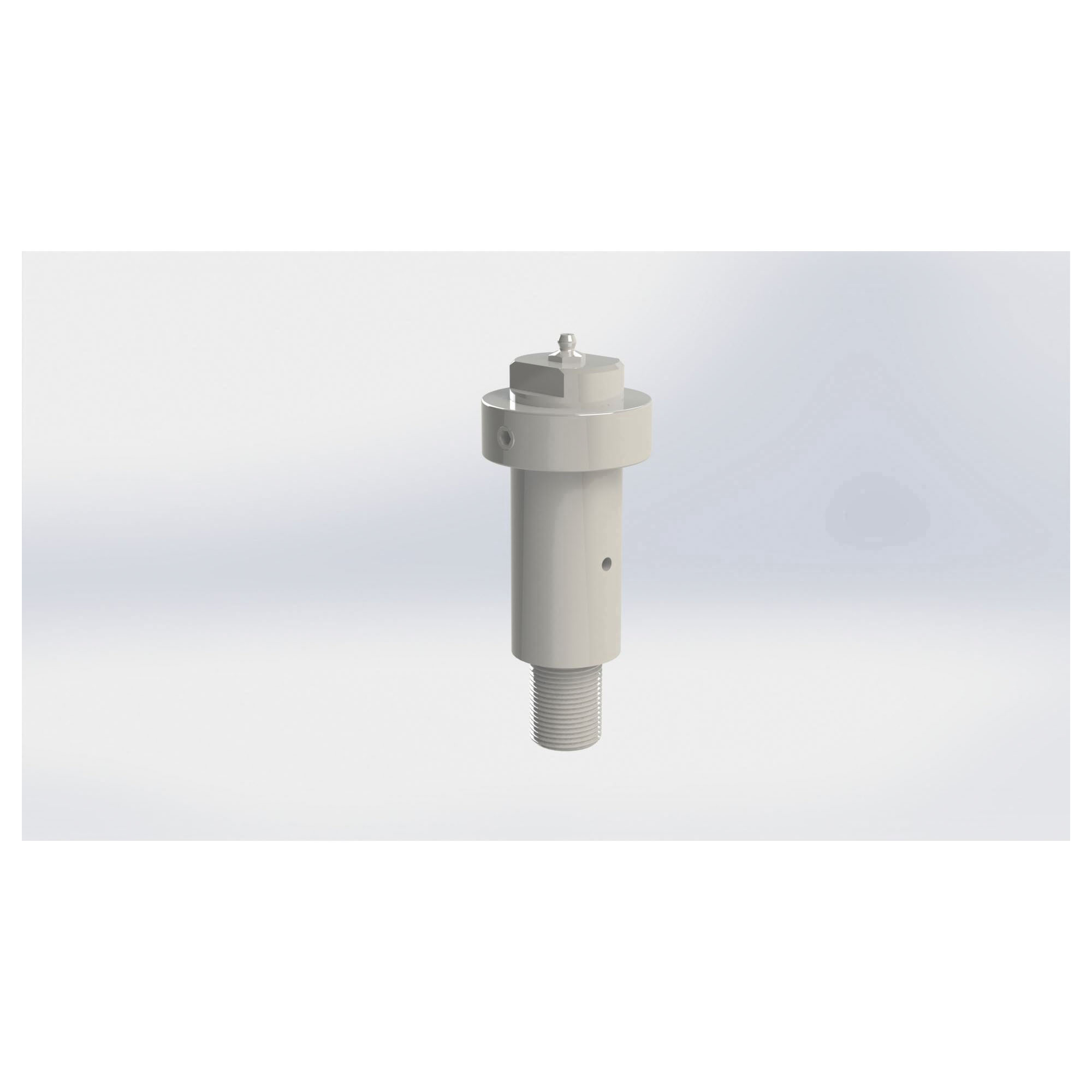

Brewer Universal Drive Tensioner NO3 BRENO3

Brewer Universal Drive Tensioner NO3 Idler Shaft, 1 in Dia x 3-1/8 in L Shaft, 4.349 in OAL

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BRENO3
  • MPN: NO3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Brewer idler shafts are hardened and ground for maximum idler life. To ensure maximum rigidity, they are shouldered and threaded into units and locked with a setscrew.

Brewer Universal Drive Tensioner Idler Shaft, Series: NO Series, 3-1/8 in Shaft Length, 1 in Shaft Diameter, 4.349 in Overall Length, 3/4-10 UNC Thread, 7/8 in Thread Length, For Use With: Model AM-3/4-10 A Series Shaft Mount Drive Tensioners, Model GM-3/4-10 G Series Flange Mount Drive Tensioners, Model RM-3/4-10 R Series Angle Mount Drive Tensioners, Steel

Material      :      Steel
Overall Length      :      4.349 in
Series      :      NO Series
Shaft Diameter      :      1 in
Shaft Length      :      3-1/8 in
Suitable For Use With      :      Model AM-3/4-10 A Series Shaft Mount Drive Tensioners, Model GM-3/4-10 G Series Flange Mount Drive Tensioners, Model RM-3/4-10 R Series Angle Mount Drive Tensioners
Thread Length      :      7/8 in
Thread Size      :      3/4-10 UNC
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_NO2_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_SD_B_Catalog.pdf
