Brewer Universal Drive Tensioner HS BREHS
  1. pin-int

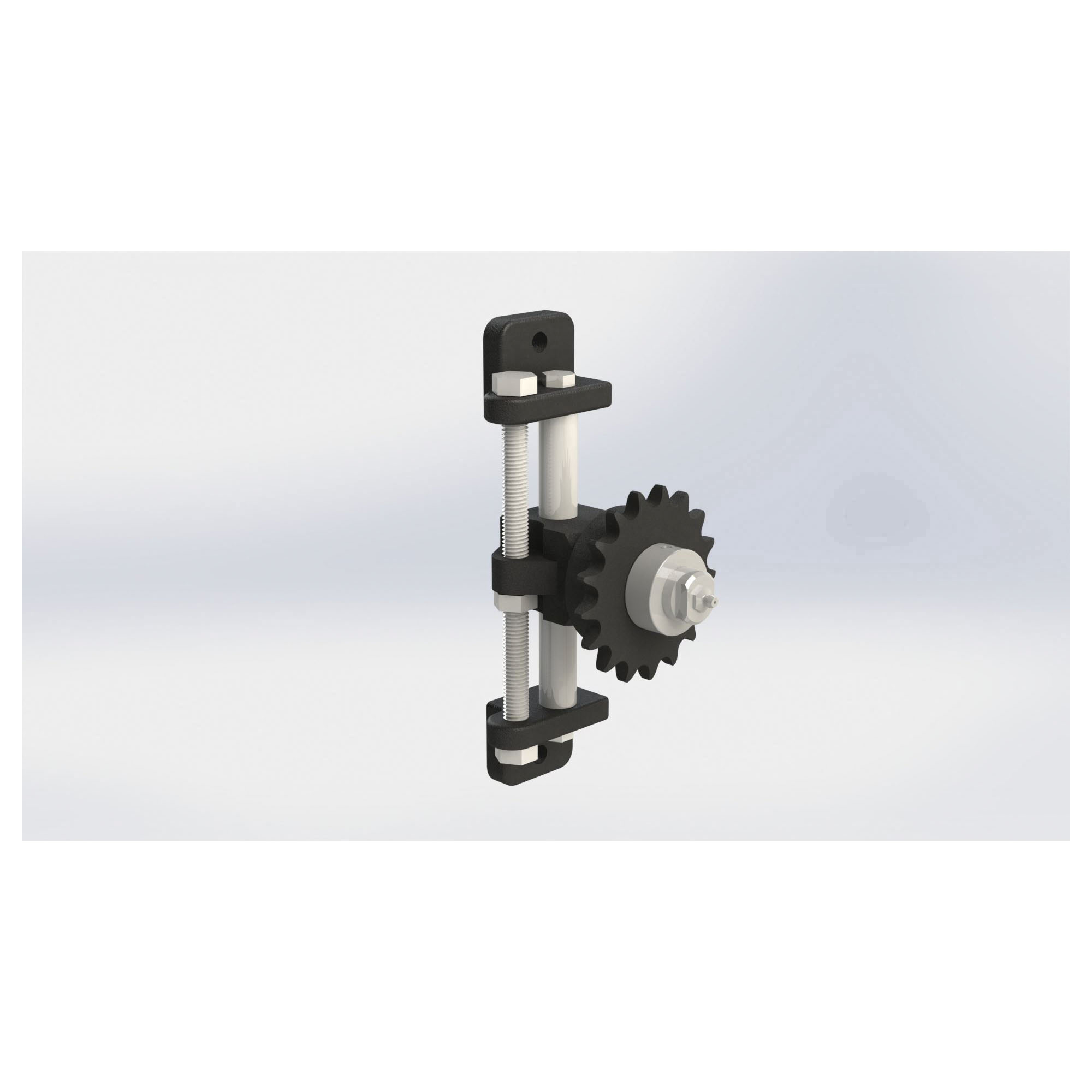

Brewer Universal Drive Tensioner HS BREHS

Brewer Universal Drive Tensioner HS H Series Small Screw Adjustment Drive Tensioner, For Use With Model SO1 1/2 in Dia Idler Shaft, 1/4 in Bolt

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BREHS
  • MPN: HS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The H-Series Universal Drive Tensioner is a base mounted screw adjustable unit that provides precision tensioning, positive locking and maintains constant tension at all times. Tension can be precisely controlled. With two bolt mounting for ease of installation.

Brewer Universal Drive Tensioner Drive Tensioner, Small Screw Adjustment, Series: H Series, For Use With: Model SO1 1/2 in Dia Idler Shaft, 1/4 in Bolt, 5-1/2 in L x 1-1/2 in H

Bolt Size      :      1/4 in
Dimensions      :      5-1/2 in L x 1-1/2 in H
Series      :      H Series
Suitable For Use With      :      Model SO1 1/2 in Dia Idler Shaft
Type      :      Small Screw Adjustment
  • The universal drive tensioner shaft mounted series is ideal for locations where it is impractical to bolt a tensioner to the frame of a machine
  • This drive tensioner can be easily located at any point on a shaft
  • At the same time permitting positioning at any point on a 360 deg arc
  • A split in the base of the arm, along with a locking screw, permits easy movement and tight clamping on the shaft
  • The shaft mounted tensioner when used in pairs, makes a practical snubber for head and tail pulleys
  • 4-3/4 in bolt center-to-center
  • 1-1/16 in H base
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_HL_Specification_Sheet.pdf
