Brewer Universal Drive Tensioner HL BREHL

Brewer Universal Drive Tensioner HL H Series Large Screw Adjustment Drive Tensioner, For Use With Model SO5 and SO6 1-1/2 in Dia Idler Shafts, 5/8 in Bolt, Cast Iron

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BREHL
  • MPN: HL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

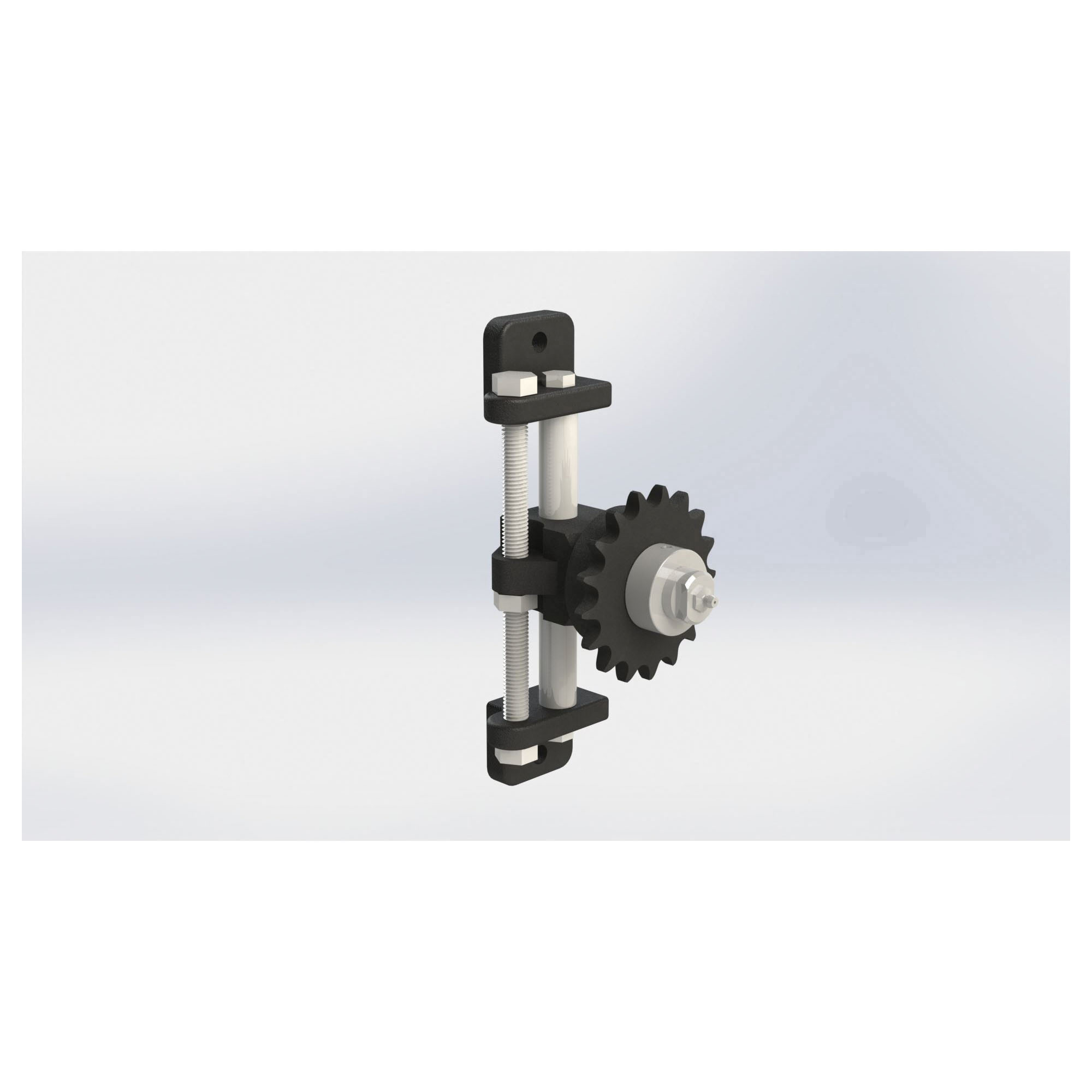

The H-Series Universal Drive Tensioner is a base mounted screw adjustable unit that provides precision tensioning, positive locking and maintains constant tension at all times. Tension can be precisely controlled. With two bolt mounting for ease of installation.

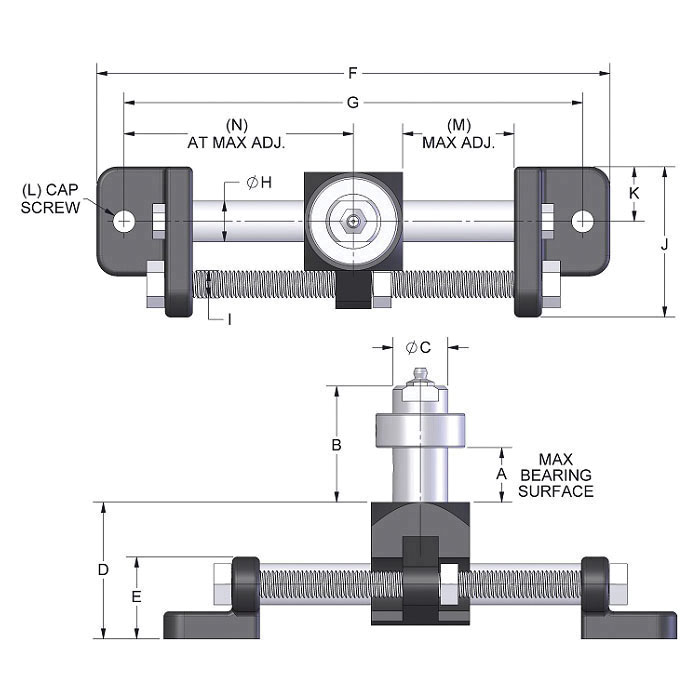

Brewer Universal Drive Tensioner Drive Tensioner, Large Screw Adjustment, Series: H Series, For Use With: Model SO5 and SO6 1-1/2 in Dia Idler Shafts, 5/8 in Bolt, Cast Iron, 16 in L x 3-5/8 in H

Bolt Size      :      5/8 in
Dimensions      :      16 in L x 3-5/8 in H
Material      :      Cast Iron
Series      :      H Series
Suitable For Use With      :      Model SO5 and SO6 1-1/2 in Dia Idler Shafts
Type      :      Large Screw Adjustment
  • The universal drive tensioner shaft mounted series is ideal for locations where it is impractical to bolt a tensioner to the frame of a machine
  • This drive tensioner can be easily located at any point on a shaft
  • At the same time permitting positioning at any point on a 360 deg arc
  • A split in the base of the arm, along with a locking screw, permits easy movement and tight clamping on the shaft
  • The shaft mounted tensioner when used in pairs, makes a practical snubber for head and tail pulleys
  • 14-1/2 in bolt center-to-center
  • 2-3/8 in H base
