Brewer Universal Drive Tensioner GSL BREGSL
  1. pin-int

Brewer Universal Drive Tensioner GSL BREGSL

Brewer Universal Drive Tensioner GSL GS Series Large Base Mount Drive Tensioner, For Use With Model SO5 and SO6 1-1/2 in Dia Idler Shafts, 5/8 in Bolt, Cast Iron

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BREGSL
  • MPN: GSL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

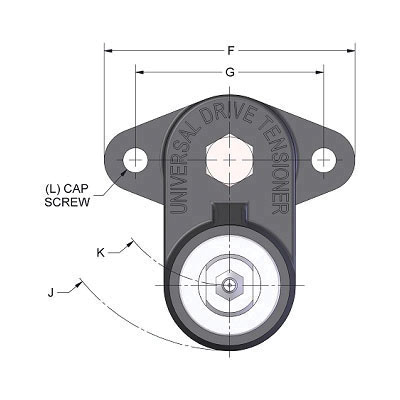

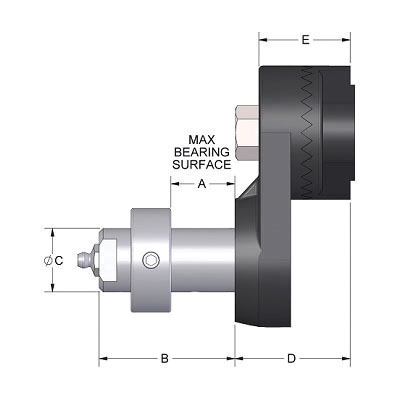

This particular single adjusting model incorporates the compactness of a flanged base with the versatility of a rotating arm. Both base and arm have serrated teeth to prevent slippage. As a chain or belt elongates, the arm, which rotates 360 deg, can be readjusted to restore the original tension.

Brewer Universal Drive Tensioner Drive Tensioner, Large Base Mount, Series: GS Series, For Use With: Model SO5 and SO6 1-1/2 in Dia Idler Shafts, 5/8 in Bolt, Cast Iron, 7-1/2 in L x 2-15/16 W

Bolt Size      :      5/8 in
Dimensions      :      7-1/2 in L x 2-15/16 W
Material      :      Cast Iron
Series      :      GS Series
Suitable For Use With      :      Model SO5 and SO6 1-1/2 in Dia Idler Shafts
Type      :      Large Base Mount
  • Compact flange base
  • Versatile rotating arm
  • Serrated teeth to prevent slippage
  • 6 in bolt center-to-center
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_GSL_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_SD_B_Catalog.pdf
