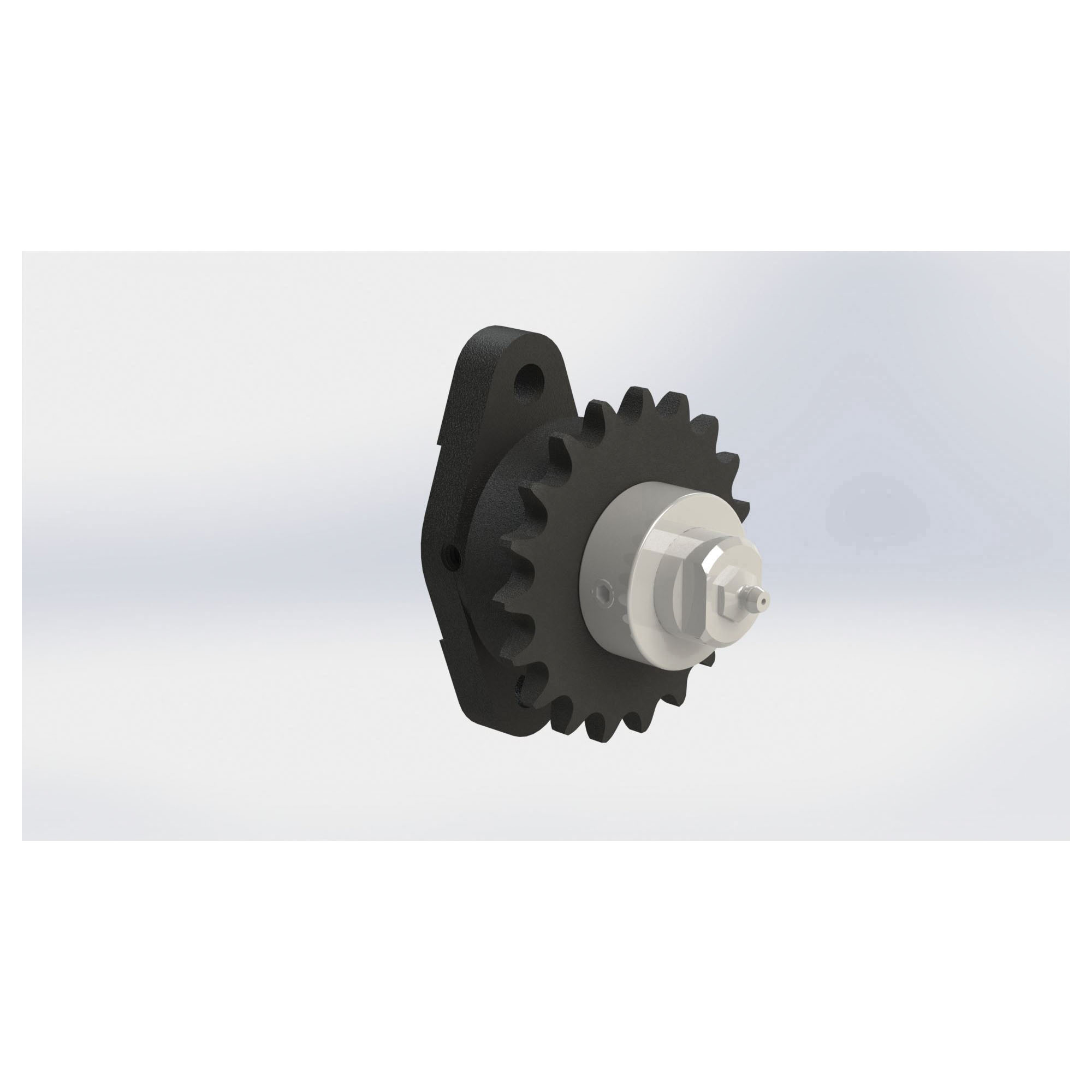

Brewer Universal Drive Tensioner GM BREGM
Brewer Universal Drive Tensioner GM G Series Medium Fixed Flange Mount Drive Tensioner, For Use With Model SO2, SO3 and SO4 1 in Dia Idler Shafts, 3/8 in Bolt, Cast Iron
- Manufacturer: Brewer Machine and Gear
- Brand Name: Brewer Universal Drive Tensioner
- Part Number: BREGM
- MPN: GM
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Universal Drive Positioners act as fixed idler brackets to provide necessary support for long chain and belt drives. They may also be used to reverse direction of a sprocket or pulley or be used in combination with the Universal Drive Tensioner when multiple idlers are needed, but take up required only at one station. The Universal Drive Flanged Positioner is compact and mounts flush to any surface, easily adapting to most machine frames.
Brewer Universal Drive Tensioner Drive Tensioner, Medium Fixed Flange Mount, Series: G Series, For Use With: Model SO2, SO3 and SO4 1 in Dia Idler Shafts, 3/8 in Bolt, Cast Iron, 2 in W x 4 in H
| Bolt Size | : | 3/8 in |
| Dimensions | : | 2 in W x 4 in H |
| Material | : | Cast Iron |
| Series | : | G Series |
| Suitable For Use With | : | Model SO2, SO3 and SO4 1 in Dia Idler Shafts |
| Type | : | Medium Fixed Flange Mount |
- Fixed idler bracket
- Easily adapts to most machine frames
- 3 in bolt center-to-center
- 15/16 in THK base
Specification Sheet
