Brewer Universal Drive Tensioner BV5001 BREBV5001
  1. pin-int

Brewer Universal Drive Tensioner BV5001 BREBV5001

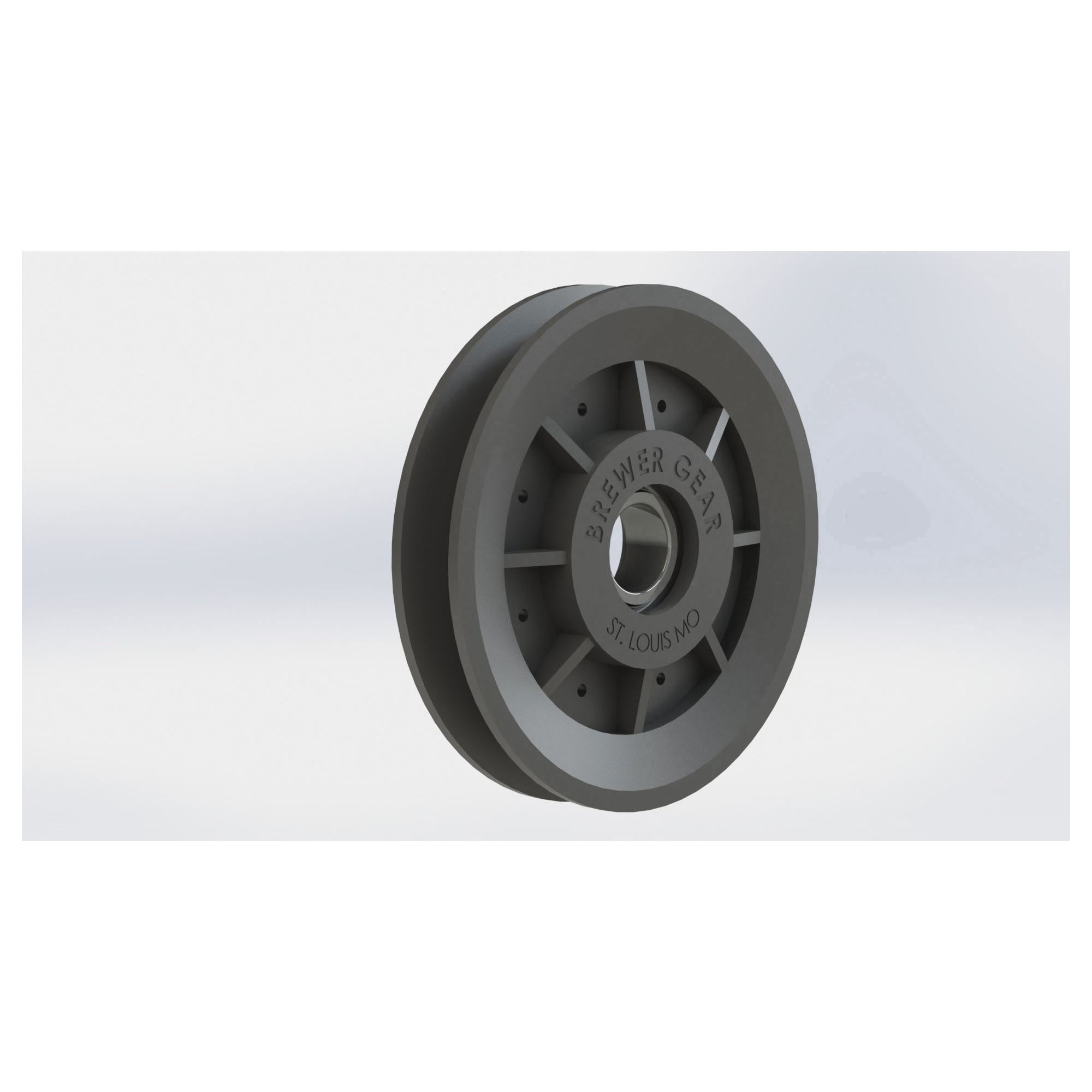

Brewer Universal Drive Tensioner BV5001 Idler Pulley With Ball Bearing, 1 Grooves, 0.6693 in Dia Bore, 5 in OD, 0.81 in W Face, Nylon

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BREBV5001
  • MPN: BV5001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Brewer V-belt Idler Pulleys are provided with a series of radial reinforcing ribs to prevent deformation caused by the wedging action of the belt. The smooth and durable grooved surface promotes perfect tracking and ensures quiet, long-lived operation. Molded construction provides a bright, attractive appearance that speaks of the high quality of the final product. Plus, versatile bore adapters can be factory-installed to facilitate mounting.

Brewer Universal Drive Tensioner Idler Pulley, 1 Grooves, 0.6693 in Bore, 5 in OD, 0.81 in Face Width, 0.87 in Overall Length, For Use With: B Cross Section V-Belts, Nylon

Bore Diameter      :      0.6693 in
Face Width      :      0.81 in
Material      :      Nylon
Number of Grooves      :      1
Outside Diameter      :      5 in
Overall Length      :      0.87 in
Suitable For Use With      :      B Cross Section V-Belts
  • Sealed for life bearing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_SD_B_Catalog.pdf
