Brewer Universal Drive Tensioner B4017N BREB4017N
  1. pin-int

Brewer Universal Drive Tensioner B4017N BREB4017N

Brewer Universal Drive Tensioner B4017N 1-Piece A-Style Single Strand Idler Roller Chain Sprocket With Precision Ball Bearing, 0.669 in Dia Bore, 3 in OD, 40 Chain, 17 Teeth, 1/2 in Pitch, Nylon

  • Manufacturer: Brewer Machine and Gear
  • Brand Name: Brewer Universal Drive Tensioner
  • Part Number: BREB4017N
  • MPN: B4017N
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

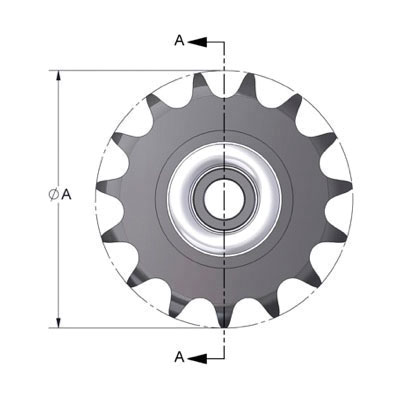

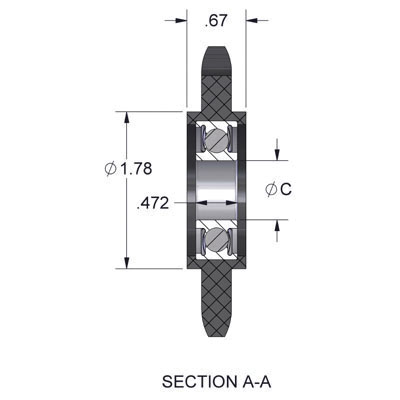

Brewer Universal Drive Tensioner Idler Roller Chain Sprocket, 1-Piece A-Style Single Strand, 0.669 in Bore Dia, 3 in Outside Dia, 40 Chain, 17 Teeth, 1/2 in Pitch, 2.72 in, 1.785 in Hub Dia, 0.472 in Length Through Bore, Nylon

Bore Diameter      :      0.669 in
Chain Size      :      40
Hub Diameter      :      1.785 in
Length Through Bore      :      0.472 in
Material      :      Nylon
Number of Teeth      :      17
Outside Diameter      :      3 in
Pitch Diameter      :      2.72 in
Pitch      :      1/2 in
Type      :      1-Piece A-Style Single Strand
  • Lightweight and quiet
  • Resists corrosion
  • Wear resistant glass reinforced nylon
  • Sealed precision deep groove ball bearing - no lubrication required
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_B4017N_Specification_Sheet.pdf
