Bower® MA1215EL NTNMA1215EL

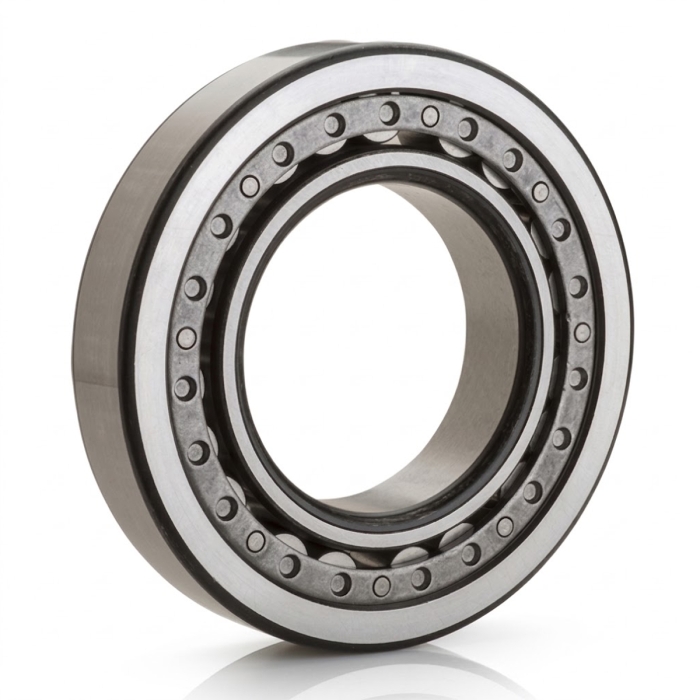

Bower® MA1215EL M Series Cylindrical Roller Bearing, 75 mm Dia Bore, 130 mm OD, 1 Row, 25 mm W, 159000 N Load
- Manufacturer: NTN
- Brand Name: Bower®
- Part Number: NTNMA1215EL
- MPN: MA1215EL
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Bower MA1215EL M Series Cylindrical Roller Bearing features 75 mm bore, 130 mm OD, and 25 mm width and Round bore, single-row, and open design. Key specifications include Hardened Alloy Steel bearing and Composite Steel cage, 123000 N dynamic and 159000 N static load ratings, and temperature -40 to 120 deg C. Cylindrical rollers provide high radial load capacity and rigidity for demanding rotating equipment.
Bower® Cylindrical Roller Bearing, Series: M Series, 75 mm Bore Dia, 130 mm Outside Dia, 1 Row, 25 mm W, Open Closure, 159000 N, Hardened Alloy Steel Bearing, Composite Steel Cage, -40 to 120 deg C
| Bearing Material | : | Hardened Alloy Steel |
| Bore Diameter | : | 75 mm |
| Cage Material | : | Composite Steel |
| Closure Type | : | Open |
| Load Capacity | : | 159000 N |
| Number of Rows | : | 1 |
| Outside Diameter | : | 130 mm |
| Series | : | M Series |
| Temperature Rating | : | -40 to 120 deg C |
| Width | : | 25 mm |
- Product type: Cylindrical Roller Bearing
- Dimensions: 75 mm bore x 130 mm outside diameter x 25 mm width
- Design: Round bore; single row; open
- Construction: Hardened alloy steel bearing; Composite steel cage
- Load ratings: 123,000 N dynamic / 159,000 N static
- Operating temperature: -40 to 120 °C
- Radial internal clearance: CN
- Tolerance class: ISO 0
- Oil hole: None
