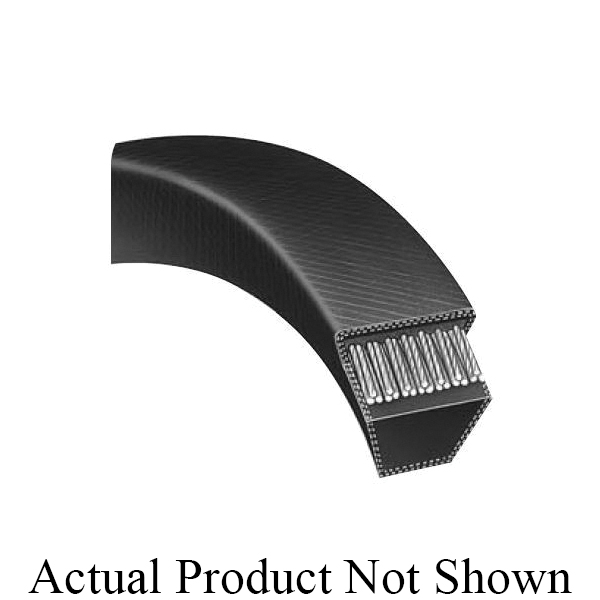

Wrapped Construction Single Belts have an outer fabric wrap treated with an engineered synthetic rubber compound that is extremely resistant to oil and heat; specifically designed for excellent wear resistance and proven through thousands of testing hrs. The body rubber compound is a highly engineered synthetic rubber compound; created for cool running, flexibility, crack resistance and excellent bonding to the outer fabric and tensile cords.
BESTORQ® Wrapped V-Belt, Classical, B Section Size, 0.64 in Top Width, 76 in Outside Length, 0.44 in Thickness, 1 Ribs, 3.4 in Minimum Pulley Dia, Synthetic Rubber
| Material | : | Synthetic Rubber |
| Minimum Pulley Diameter | : | 3.4 in |
| Number of Ribs | : | 1 |
| Outside Length | : | 76 in |
| Section Size | : | B |
| Thickness | : | 0.44 in |
| Top Width | : | 0.64 in |
| Type | : | Classical |
- Classical belts constructed from pre-stretched polyester cord
- 40 deg belt angle
Specification Sheet
