Berliss™ BSP-1000 BBCBSP1000
  1. pin-int

Berliss™ BSP-1000 BBCBSP1000

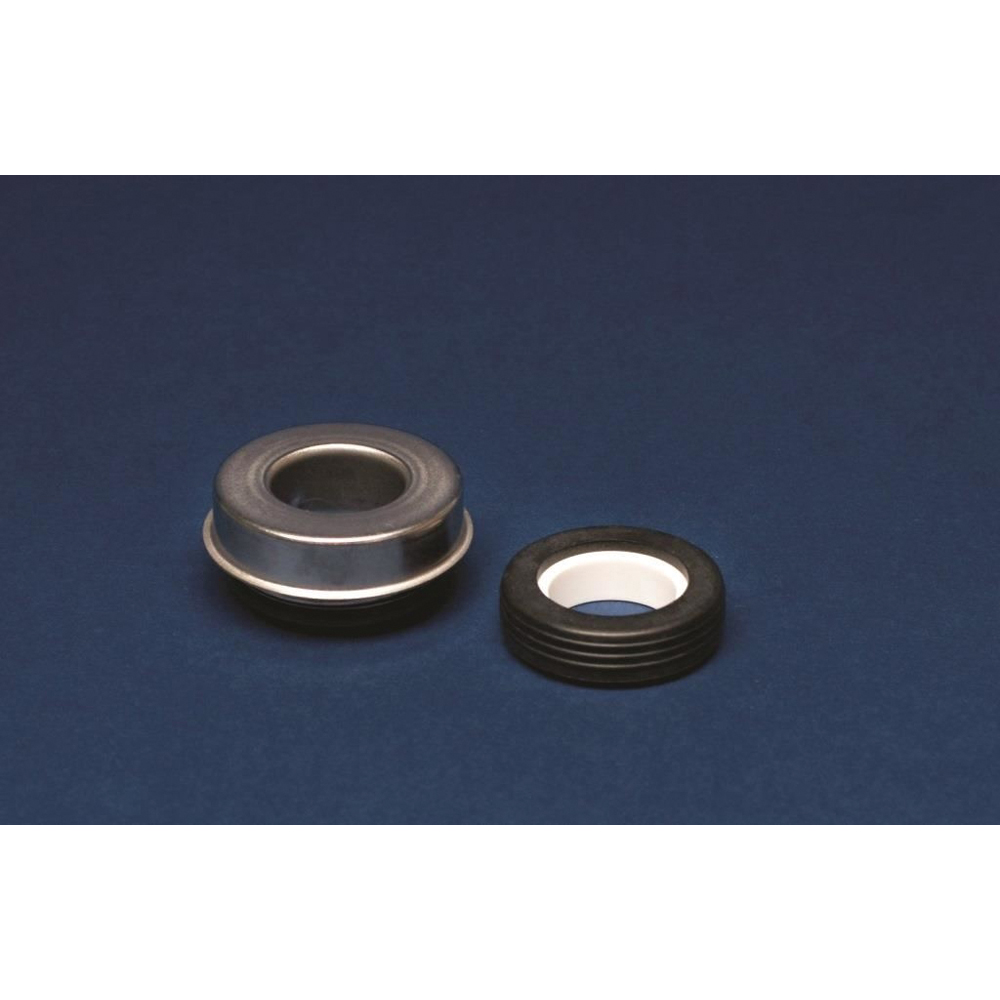

Berliss™ BSP-1000 Type 6A Standard Mechanical Seal Assembly With Cup, 5/8 in ID, 304/316 Stainless Steel Spring, 1.437 in OD Seal Head, 1-1/4 in OD x 0.406 in THK, Buna-N Elastomers, Carbon Primary Ring, Stainless Steel Metal Parts, Ceramic Mating Ring

  • Manufacturer: Berliss
  • Brand Name: Berliss™
  • Part Number: BBCBSP1000
  • MPN: BSP-1000
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Berliss™ is a manufacturer of high quality, cost effective mechanical pump seals for a wide range of applications such as pool and spa pumps, centrifugal pumps and well point pumps. We also provide multi-spring seals, along with a variety of gasket and packing materials to meet all of your sealing needs.

Berliss™ Mechanical Seal Assembly, Type 6A Standard, 5/8 in Inside Dia, 1.437 in OD Seal Head, 1-1/4 in OD Mating Ring, 0.406 in THK Mating Ring, Buna-N Elastomer, Carbon Primary Ring, Stainless Steel Metal Parts, Ceramic Mating Ring, 304/316 Stainless Steel Spring, 200 deg F, 60 psi

Elastomers Material      :      Buna-N
Inside Diameter      :      5/8 in
Mating Ring Material      :      Ceramic
Mating Ring Outside Diameter      :      1-1/4 in
Mating Ring Thickness      :      0.406 in
Metal Parts Material      :      Stainless Steel
Pressure Rating      :      60 psi
Primary Ring Material      :      Carbon
Seal Head Outside Diameter      :      1.437 in
Spring Material      :      304/316 Stainless Steel
Temperature Rating      :      200 deg F
Type      :      Type 6A Standard
  • Item Features 01=Unbalanced, bi-directional
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Berliss_DPRB12311632RS_Catalog.pdf
