BCA® HPC100GP BCAHPC100GP

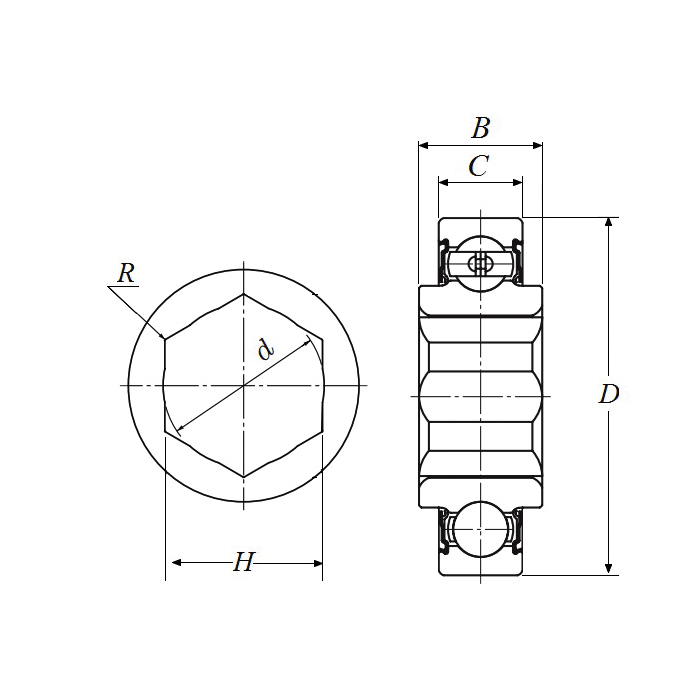

BCA® HPC100GP Hex Bore Farm Implement Bearing, Cylindrical Bearing, 25.425 mm Dia Bore, 62 mm OD, 24 mm W, 19500 N Load
- Manufacturer: NTN
- Brand Name: BCA®
- Part Number: BCAHPC100GP
- MPN: HPC100GP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
NTN BCA® Hex Bore Bearings are a popular selection in moderately-loaded, low-speed agricultural applications. Hex Bore Bearings eliminate the need for locking devices and simplify installation.
BCA® Farm Implement Bearing, Hex Bore, Series: HPC, Cylindrical Bearing, 25.425 mm Bore Dia, 62 mm Outside Dia, 24 mm W, 19500 N, Through Hardened Steel Bearing, Nitrile Rubber Seal, -40 to 120 deg C
| Bearing Material | : | Through Hardened Steel |
| Bearing Type | : | Cylindrical |
| Bore Diameter | : | 25.425 mm |
| Load Capacity | : | 19500 N |
| Outside Diameter | : | 62 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | HPC |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Hex Bore |
| Width | : | 24 mm |
- Crimped to outer ring grooves for ultimate seal security
- Seals bonded to heavy gauge trash guard shields
- Flexible nylon retainer
- C3 radial clearance greater than normal
- Ability to support both axial and radial loads
- Single-lip seal
- Non-relubricatable
- ISO class 0 precision rating
- 19500 N dynamic/11300 N static
