BCA® DS208TT7 BCADS208TT7
  1. pin-int

BCA® DS208TT7 BCADS208TT7

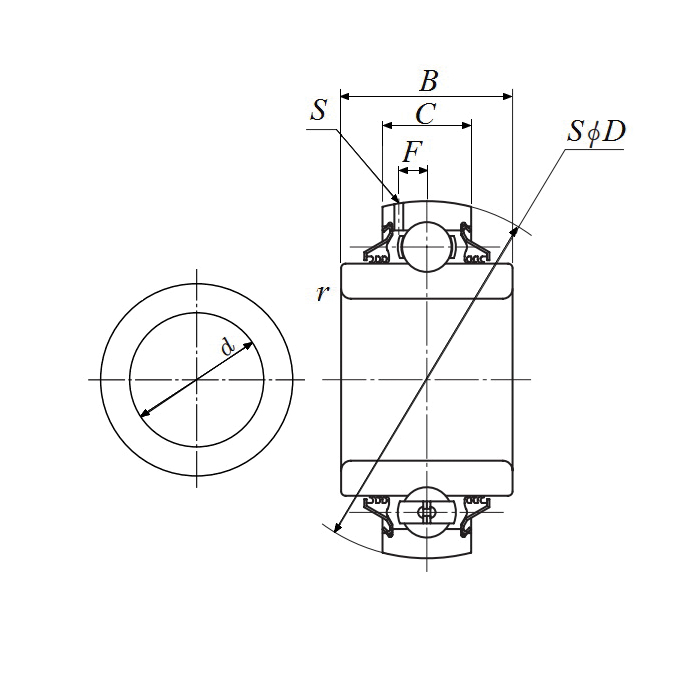

BCA® DS208TT7 DS Series Type 1 Round Bore Farm Implement Bearing, Spherical Bearing, 30.175 mm Dia Bore, 80 mm OD, 30.2 mm W, 29100 N Load

  • Manufacturer: NTN
  • Brand Name: BCA®
  • Part Number: BCADS208TT7
  • MPN: DS208TT7
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

BCA® Farm Implement Bearing, Type 1 Round Bore, Series: DS Series, Spherical Bearing, 30.175 mm Bore Dia, 80 mm Outside Dia, 30.2 mm W, 29100 N, Through Hardened Steel Bearing, Nitrile Rubber Seal, -40 to 120 deg C

Bearing Material      :      Through Hardened Steel
Bearing Type      :      Spherical
Bore Diameter      :      30.175 mm
Load Capacity      :      29100 N
Outside Diameter      :      80 mm
Seal Material      :      Nitrile Rubber
Series      :      DS Series
Temperature Rating      :      -40 to 120 deg C
Type      :      Type 1 Round Bore
Width      :      30.2 mm
  • Sealed on both sides with rugged triple lip nitrite rubber seals
  • Crimped to outer ring grooves for ultimate seal security
  • Seals bonded to heavy gauge trash guard shields
  • Flexible nylon retainer
  • C3 radial clearance greater than normal
  • Ability to support both axial and radial loads
  • Non-relubricatable
  • ISO class 0 precision rating
  • 29100 N dynamic/17800 N static
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BCA_DC208TT_Catalog.pdf
